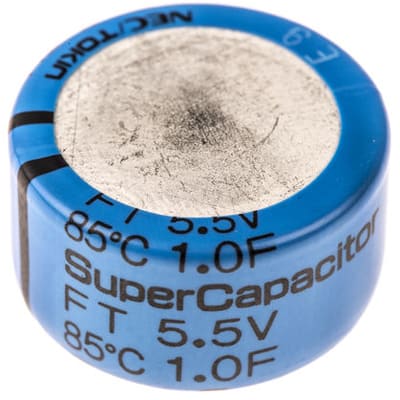

FT0H105ZF
1F -20 - +80% 3.5Ohms 5.5 V Electric Double Layer Capacitor FT | KEMET FT0H105ZF
Availability: Out of Stock
Package Type: RADIAL
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the FT0H105ZF by Yageo and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

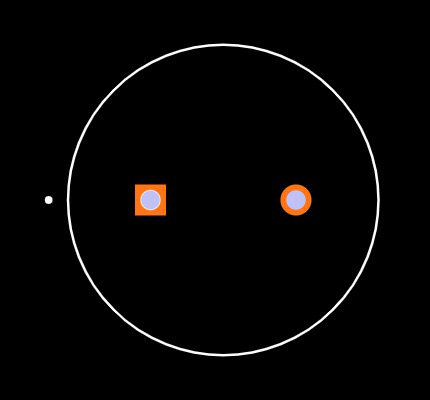

Footprint
No web preview
This Footprint is Available for

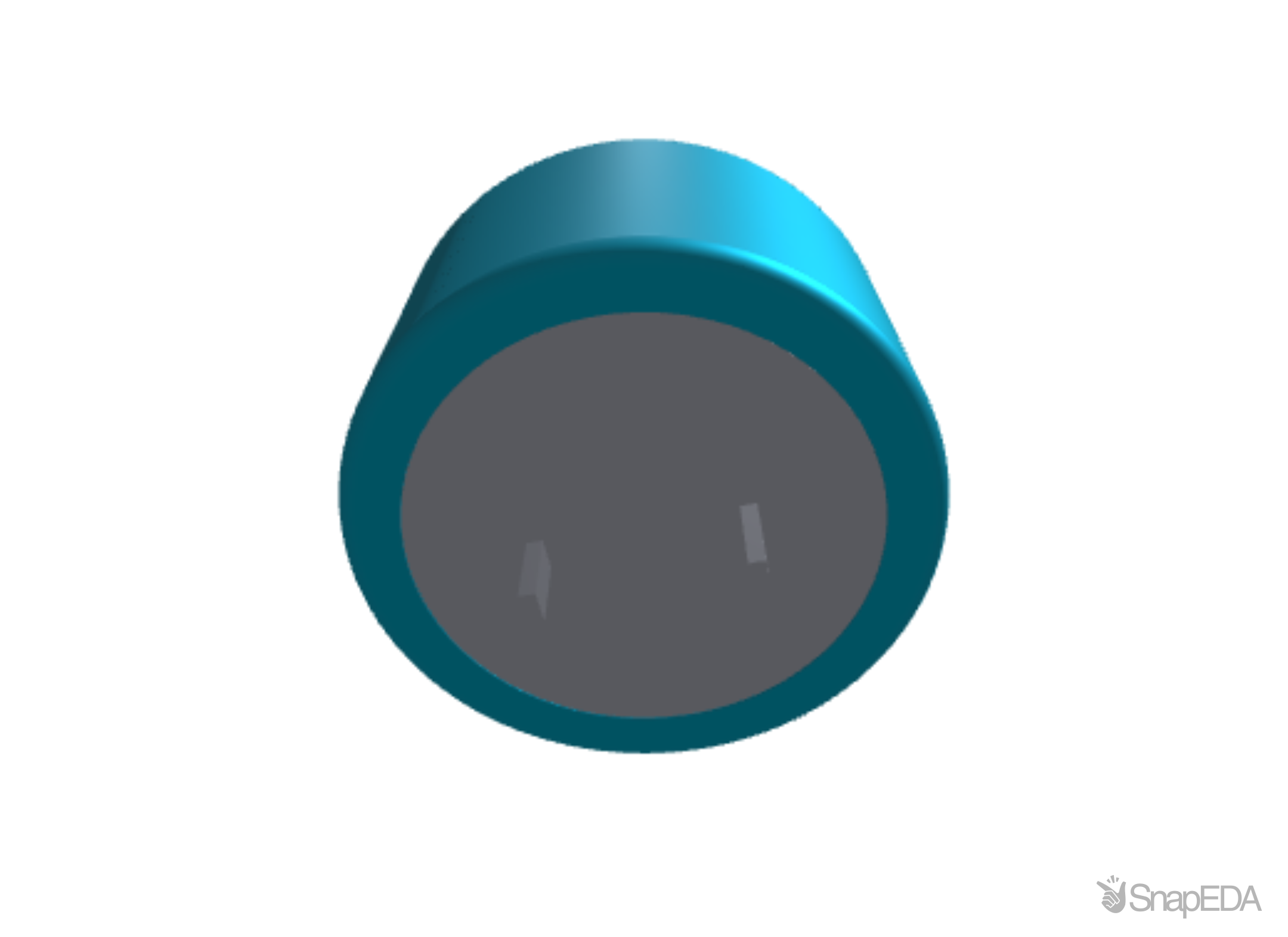

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the FT0H105ZF
| Part Name | FT0H105ZF |
| Manufacturer | KEMET |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Diameter | 21.5 (mm) |
| Dimensions | 21.5 (Dia.) x 13 (mm) |
| Product Diameter | 21.5 (mm) |
| Series | Supercap FT |
| Capacitor Family | Electric Double Layer |
| Equivalent Series Resistance | 3.5 (Ω) |
| Capacitance | 1 (F) |
| Depth | 13 (mm) |
| Voltage (V) | 5.5 (V dc) |
| Minimum Operating Temperature | -40 (°C) |
| Mounting Type | Through Hole |
| Lead Pitch | 7.62 (mm) |
| Maximum Operating Temperature | +85 (°C) |
| Tolerance | -20 → +80 (%) |
| Terminal Type | Radial |
No issues have been reported for the FT0H105ZF
If you experienced any issues with the symbol or footprint, please report it.
