FX0380

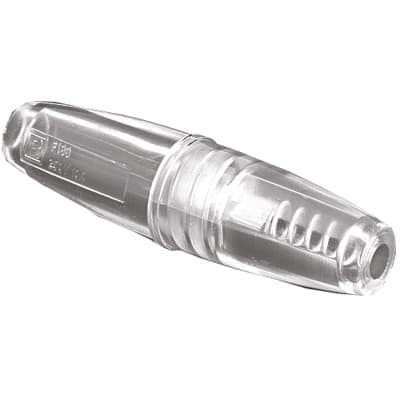

In-line PC1 Fuse Holder for 5X20mm Fuses, Clear | Bulgin FX0380
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the FX0380 by Bulgin and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

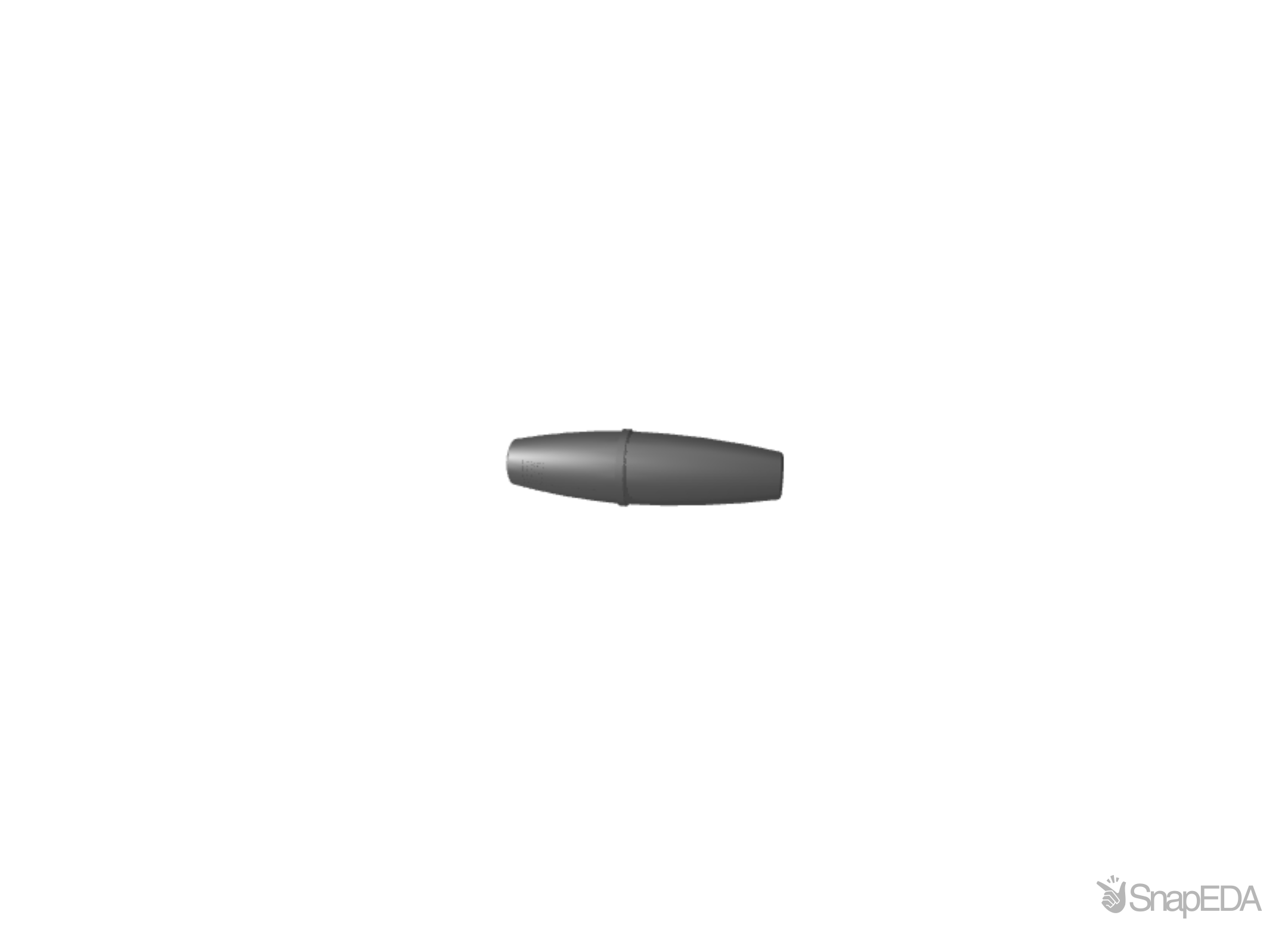

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the FX0380
| Part Name | FX0380 |
| Manufacturer | Bulgin |
| Category | Circuit Breakers, Fuses & Protection |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Compatible Fuse Sizes | 5 x 20 mm |
| Series | FX |
| Current Rating (A) | 10 (A) |
| Voltage Rating (V) | 250 (V) |
| Fuse Holder Type | Inline |
| Fuse Size | 5 x 20 (mm) |
| Protection Category | PC1 |
| Compatible Fuse Diameter | 5 (mm) |
| Case Material | Nylon Polybutene |
| International Protection Rating | PC1 |
| Compatible Fuse Length | 20 (mm) |
| Lead Wire Length | 0.00155 (in) |
| Terminal Type | Screw |
| Contact Material | Brass |
