FX18-120S-0.8SV20
SnapVerified
120 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the FX18-120S-0.8SV20 by Hirose and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Design & more
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

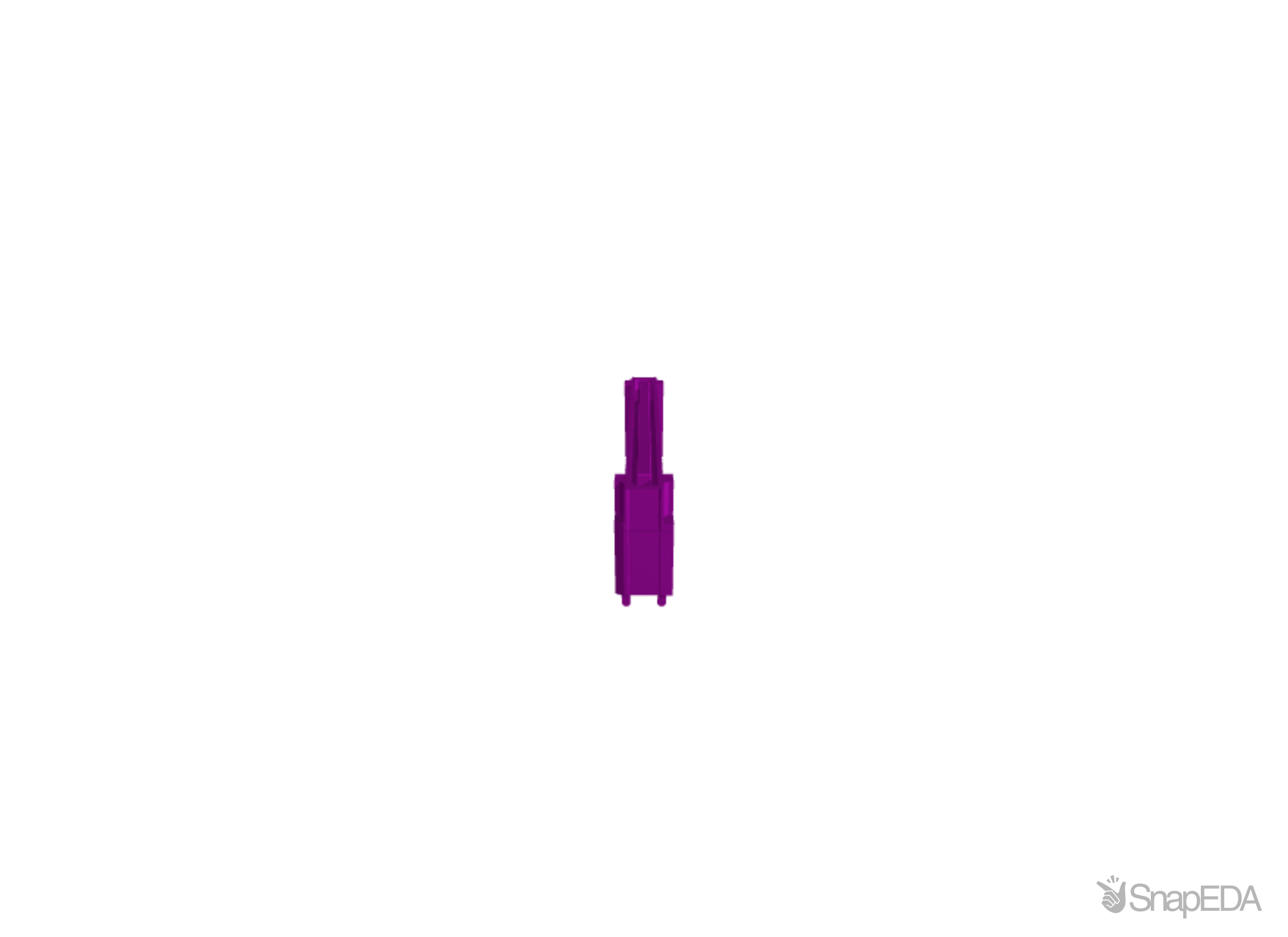

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the FX18-120S-0.8SV20
| Part Name | FX18-120S-0.8SV20 |
| Manufacturer | Hirose |
| Orientation | Straight |
| Temperature Range Max. | 85℃ |
| Temperature Range Min. | -55℃ |
| Product Link | https://www.hirose.com/en/product/p/CL0579-0033-9-00 |
| Type | Receptacle |
| Pin Count | 120 |
| RoHS | TRUE |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 12 A, 500 (mA) |
| Mounting Type | Surface Mount |
| Voltage Rating (V) | 100 V |
| Series | FunctionMAX FX18 |
| Body Orientation | Straight |
| Termination Method | Solder |
| Number Of Rows | 2 |
| Pitch | 0.8 (mm) |
| Number Of Contacts | 120 |
| Type | Board to Board |
| Contact Material | Bronze |
