FX30B-2P-3.81DS
SnapVerified
Connector Header Through Hole, Right Angle 2 position 0.150" (3.81mm)
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the FX30B-2P-3.81DS by Hirose and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Design & more
- Alternates
Symbol
No web preview
This Symbol is Available for

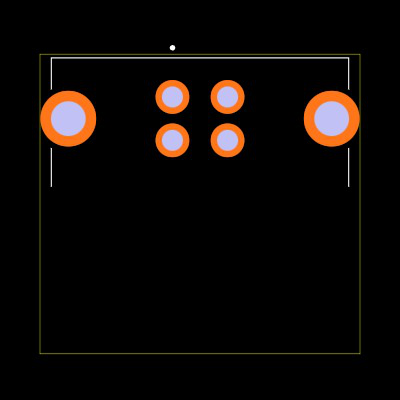

Footprint
No web preview
This Footprint is Available for

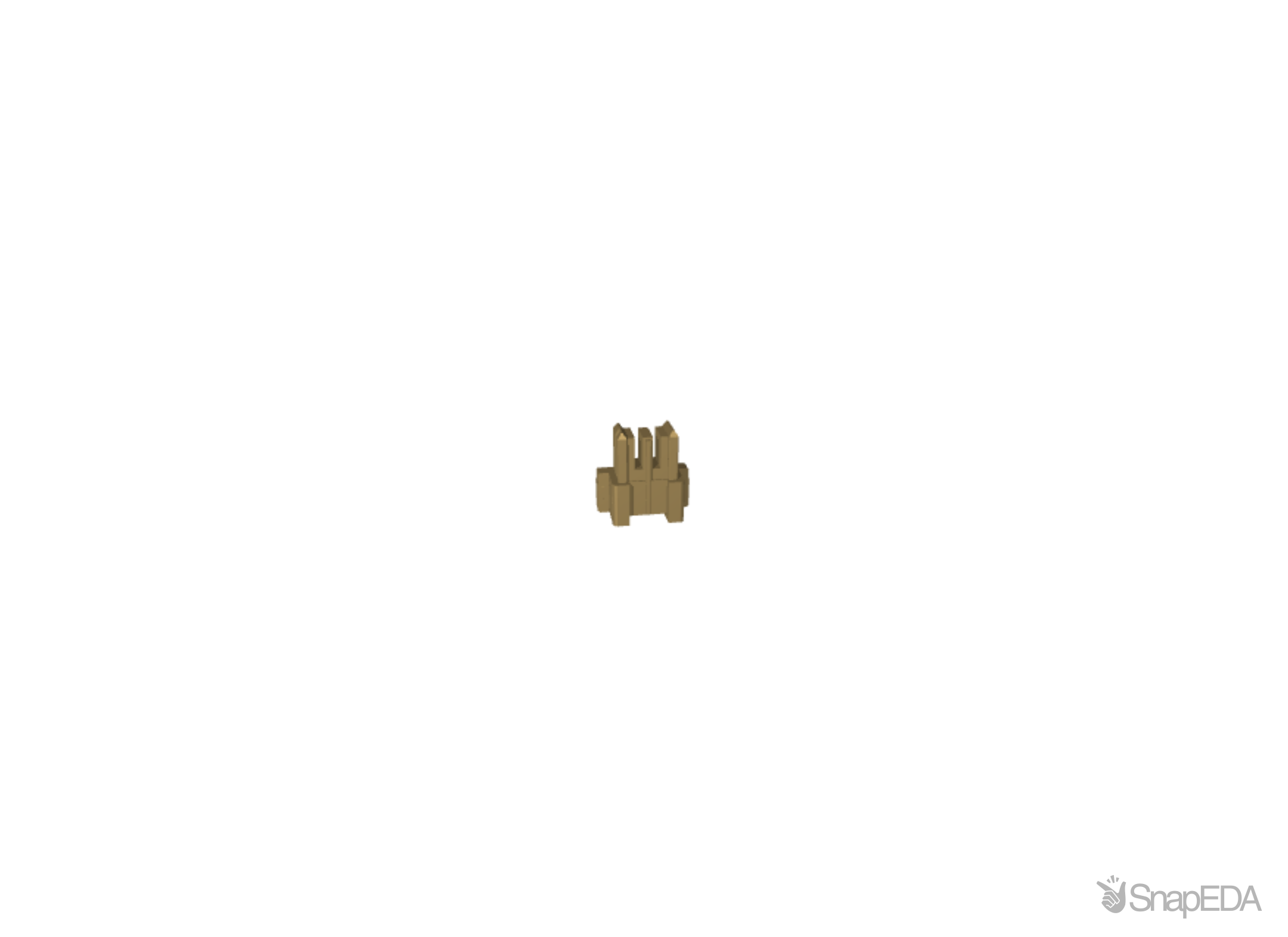

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the FX30B-2P-3.81DS
| Part Name | FX30B-2P-3.81DS |
| Manufacturer | Hirose Electric |
| Orientation | Right angle |
| Temperature Range Max. | 105℃ |
| Temperature Range Min. | -55℃ |
| Product Link | https://www.hirose.com/en/product/p/CL0570-3400-7-00 |
| Type | Header |
| Pin Count | 2 |
| RoHS | TRUE |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 10.0 (A) |
| Contact Plating | Gold |
| Mounting Type | Through Hole |
| Voltage Rating (V) | 250.0 V |
| Series | FunctionMAX FX30B |
| Body Orientation | Straight |
| Termination Method | Solder |
| Connector System | Board to Board |
| Number Of Rows | 1 |
| Shrouded Unshrouded | Shrouded |
| Pitch | 3.81 (mm) |
| Number Of Contacts | 2 |
| Contact Material | Copper Alloy |
No issues have been reported for the FX30B-2P-3.81DS
If you experienced any issues with the symbol or footprint, please report it.
