G3VM-61FR1

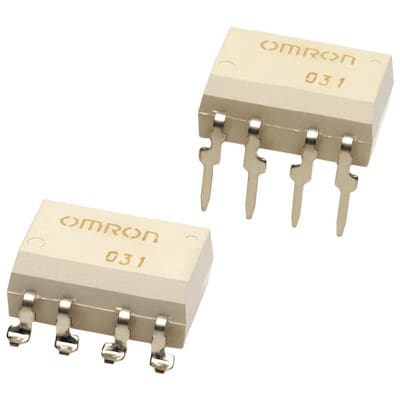

Mos Fet Relay with 1 form A ,DIP8 and stick package | Omron Electronic Components G3VM-61FR1
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the G3VM-61FR1 by Omron and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the G3VM-61FR1
| Part Name | G3VM-61FR1 |
| Manufacturer | Omron Electronics |
| Category | Relays |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Load Voltage (V) | 60 V |
| Maximum Load Current (A) | 5 A |
| Output Device | MOSFET |
| Load Voltage Range (V) | 60 (V) |
| Standards Met | UL |
| Mounting Type | Surface Mount |
| Operating Temperature Range | -40 → +85 (°C) |
| Series | G3VM |
| Depth | 6.4 (mm) |
| Contact Configuration | SPST |
| Capacitance | 70 (pF) |
| Range | G3VM |
| Length | 9.7 (mm) |
| Minimum Operating Temperature | -40 (°C) |
| Distrelec Product Id | 30171185 |
| Height | 3.7 (mm) |
| Maximum Operating Temperature | +85 (°C) |
| Minimum Load Voltage (V) | 1 V |
| Dimensions | 9.66 x 6.4 x 3.65 (mm) |
