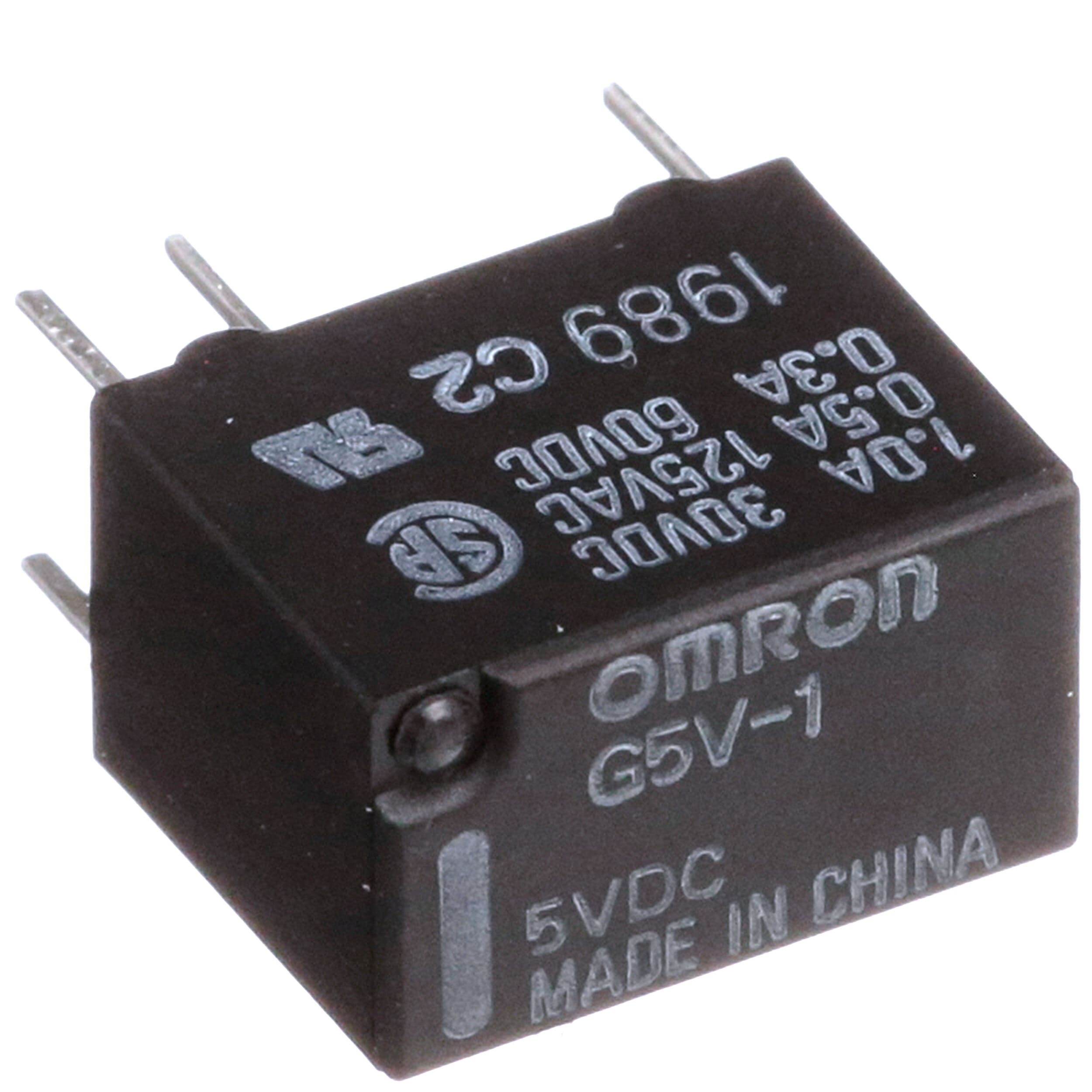

G5V-1-DC5
Relay, Low Signal, 5 VDC, 1A, 1000 VAC at 50/60 Hz, 6 Pin, G5V-1 Series | Omron Electronic Components G5V-1-DC5
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the G5V-1-DC5 by Omron and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the G5V-1-DC5
| Part Name | G5V-1-DC5 |
| Manufacturer | Omron Electronics |
| Category | Relays |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 12.5 x 10 x 7.5 (mm) |
| Electrical Life | 10^5 Operations |
| Application | Low Signal |
| Maximum Switching Power Dc | 30 W |
| Coil Resistance | 166 (Ω) |
| Life | 100000 (Electrical) Operations, 5000000 (Mechanical) Operations |
| Coil Power | 150 (mW) |
| Isolation Coil To Contact | 1.8 (kV rms) |
| Maximum Operating Temperature | +70 (°C) |
| Terminal Type | Through Hole |
| Coil Voltage (V) | 5 (V dc) |
| Operating Temperature Range | -40 → +70 (°C) |
| Maximum Switching Voltage Dc (V) | 60 (V) |
| Latching | No |
| Contact Configuration | SPDT |
| Maximum Switching Current Dc (A) | 2 A |
| Depth | 7.5 (mm) |
| Maximum Switching Voltage Ac (V) | 125 (V) |
| Maximum Switching Power Ac | 62.5 (VA) |
| Number Of Poles | 2 |
| Features | Conforms to FCC Part 68 Requirements, Single Crossbar Contacts, Fully Sealed Construction. |
| Mounting Type | PCB Mount |
| Series | IM-E |
| Length | 10 (mm) |
| Height | 10 (mm) |
| Switching Current (A) | 2 (A) |
| Minimum Operating Temperature | -40 (°C) |
| Contact Material | Gold Plated |
Inventory for the G5V-1-DC5 by Omron from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
17,691
|
|
Visit Site | |
|
★ Featured
|
13,501
|
|
Visit Site | |
|
★ Featured
|
40,000
|
585 x $0.51
|
Visit Site | |
| Chip One Stop |
278
|
|
Visit Site | |
| Conrad |
88
|
|
Visit Site | |
| Farnell UK |
5,452
|
|
Visit Site | |
| Heilind Americas |
1,331
|
|
Visit Site | |
| Newark |
871
|
|
Visit Site | |
| Onlinecomponents |
7,387
|
|
Visit Site | |
| RS Americas |
6,664
|
|
Visit Site | |
| Sager |
1,280
|
|
Visit Site | |
| TTI Americas |
1,198
|
|
Visit Site | |
| Verical |
6,057
|
|
Visit Site |
No issues have been reported for the G5V-1-DC5
