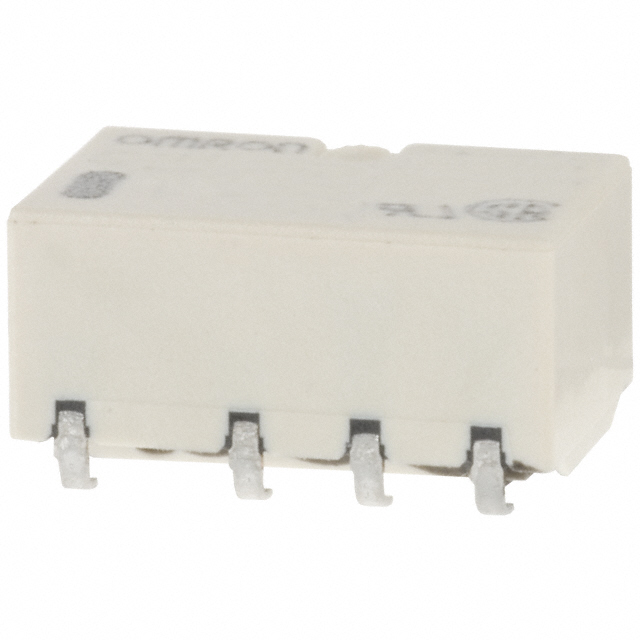

G6K-2G-Y-TR DC3
SMT TAPE-N-REEL RELAY | Omron Electronic Components G6K-2G-Y-TR DC3
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the G6K-2G-Y-TR DC3 by Omron and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

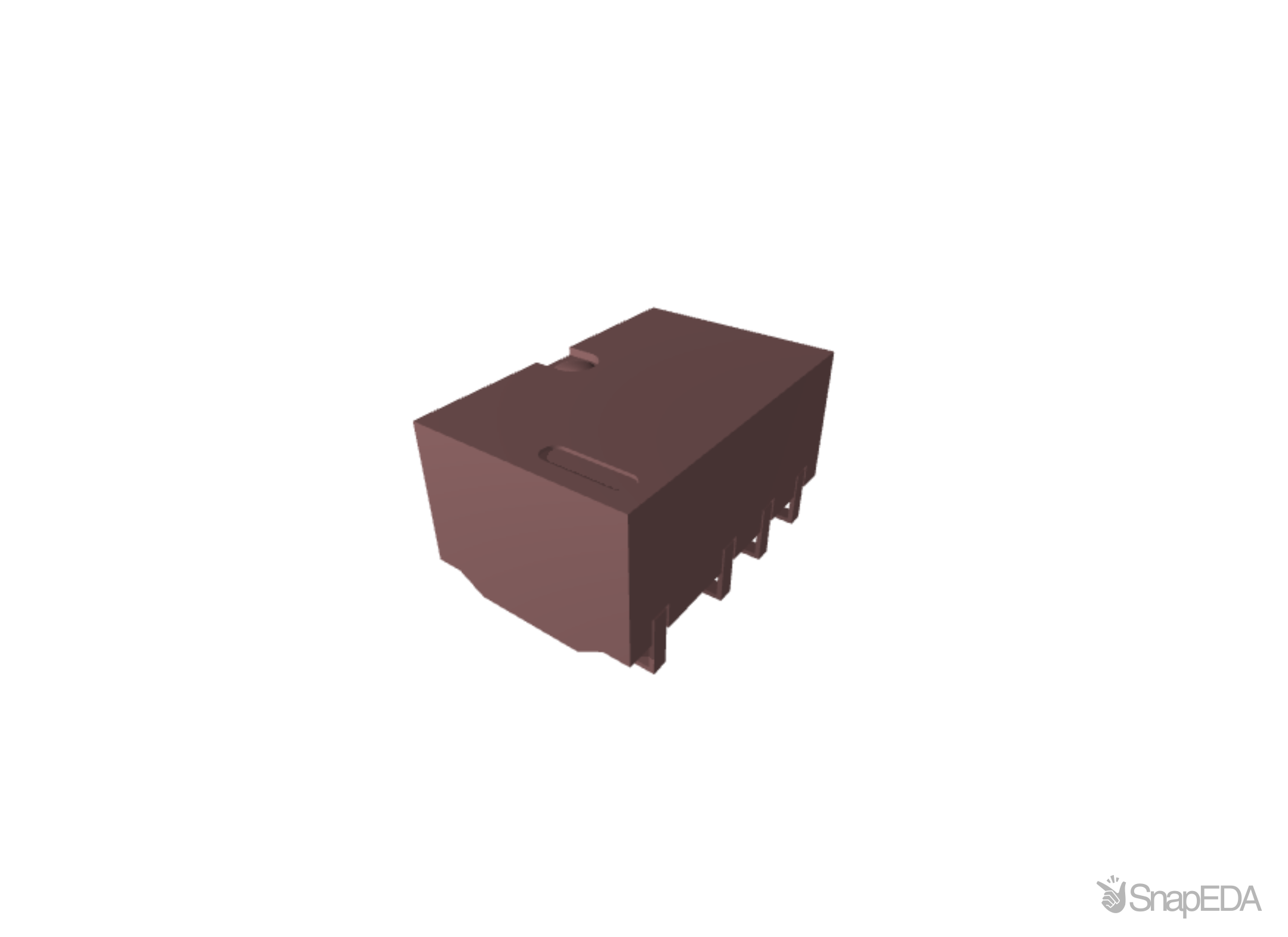

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the G6K-2G-Y-TR DC3
| Part Name | G6K-2G-Y-TR DC3 |
| Manufacturer | Omron Electronics |
| Category | Relays |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 10 x 6.5 x 5.4 (mm) |
| Coil Voltage (V) | 3 (V dc) |
| Maximum Switching Current (Dc) (A) | 1 A |
| Terminal Type | Surface Mount |
| Coil Resistance | 91 (Ω) |
| Coil Power | 100 (mW) |
| Isolation Coil To Contact | 1.5 (kV ac) |
| Maximum Operating Temperature | +70 (°C) |
| Switching Current (A) | 1 (A) |
| Electrical Life | 100000 Operations |
| Operating Temperature Range | -40 → +70 (°C) |
| Latching | No |
| Maximum Switching Voltage (Dc) (V) | 60 (V dc) |
| Maximum Switching Power (Dc) | 30 W |
| Length | 10 (mm) |
| Contact Configuration | DPDT |
| Number Of Poles | 2 |
| Features | Low Dimension And Weight Combines To Improve Mounting Efficiency, RoHS Complaint |
| Mounting Type | Surface Mount |
| Maximum Switching Voltage (Ac) (V) | 125 (V) |
| Series | HFD31 |
| Depth | 6.5 (mm) |
| Height | 5.4 (mm) |
| Maximum Switching Power (Ac) | 62.5 (VA) |
| Minimum Operating Temperature | -40 (°C) |
| Contact Material | Silver Alloy |
No issues have been reported for the G6K-2G-Y-TR DC3
If you experienced any issues with this part, please report it.
