GA355DR7GF472KW01L
SMD Capacitor X7R(EIA) with Capacitance: 4700pF Tol. 10%. Rated Voltage: 250Vac(r.m.s.)
Availability: In Stock
Package Type: 5750
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the GA355DR7GF472KW01L by Murata and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

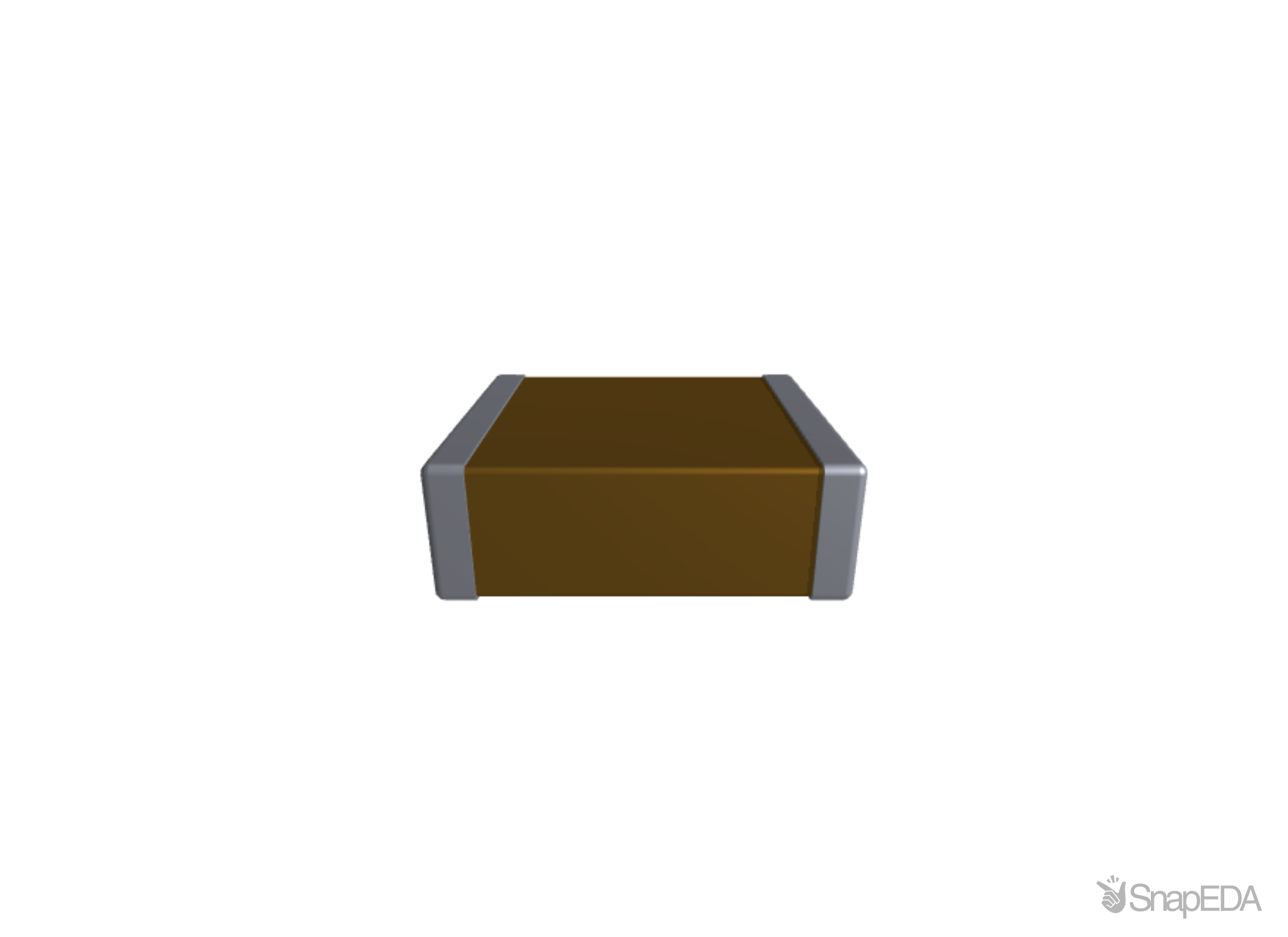

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the GA355DR7GF472KW01L
| Part Name | GA355DR7GF472KW01L |
| Manufacturer | Murata |
| Mounting Style | SMD |
| Category | MLCCs - Multilayer Ceramic Capacitors |
| Simsurfing Link | https://ds.murata.co.jp/simsurfing/gateway.html?partnumbers=%5B%22GA355DR7GF472KW01L%22%5D&lcid=en-us&graphop=mainall&focuspartnumberonlist=true&rgear=ytgvkjg |
| RoHS | True |
| Product Link | https://www.murata.com/en-us/products/productdetail?partno=GA355DR7GF472KW01%23 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 5.7 x 5 x 2 (mm) |
| Mounting Type | Surface Mount |
| Tolerance | ±10 (%) |
| Series | GA355 |
| Length | 5.7 (mm) |
| Height | 2 (mm) |
| Capacitance | 4.7 (nF) |
| Depth | 5 (mm) |
| Voltage (V) | 250 (V ac) |
| Minimum Operating Temperature | -55 (°C) |
| Maximum Operating Temperature | +125 (°C) |
| Terminal Type | Surface Mount |
| Dielectric | X7R |
| Package/Case | 2220 (5650M) |
