GBPC1508W
15A, 800V, Standard Bridge, GBPC-W
Availability: Out of Stock
Package Type: GBPC-W
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the GBPC1508W by taiwan and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

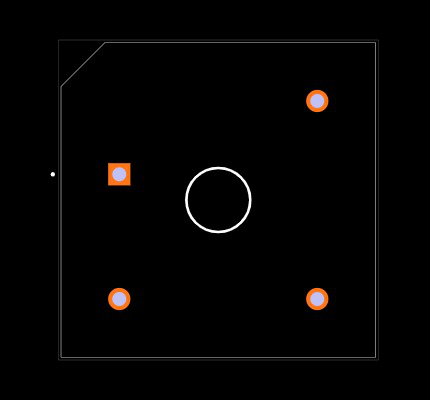

Footprint
No web preview
This Footprint is Available for

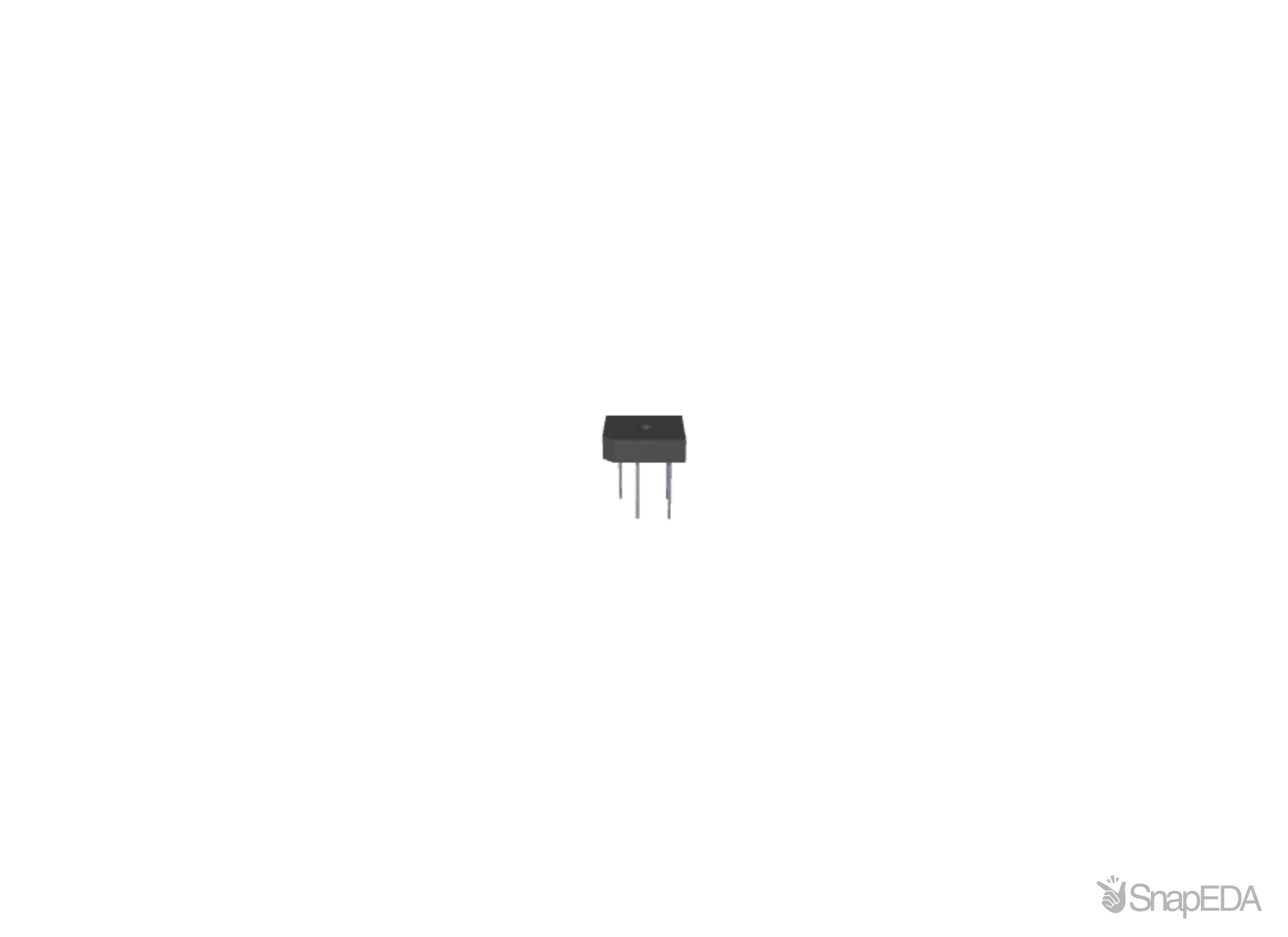

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the GBPC1508W
| Part Name | GBPC1508W |
| Manufacturer | Taiwan Semiconductor |
| Maximum DC Reverse Current (A) | 5e-06 |
| Family | STD GPP |
| Package | GBPC-W |
| Case Package | GBPC-W |
| Peak Forward Surge Current (A) | 300.0 |
| Maximum Average Forward Rectified Current (A) | 15.0 |
| Maximum Instantaneous Forward Voltage (V) | 1.1 |
| Maximum Operating Junction Temperature | 150.0 |
| RoHS | True |
| Maximum Repetitive Peak Reverse Voltage (V) | 800.0 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Priced To Clear | Yes |
| Width | 29 (mm) |
| Mounting Type | Through Hole |
| Bridge Type | Single Phase |
| Peak Non-Repetitive Forward Surge Current (A) | 300 (A) |
| Peak Average Forward Current (A) | 15 (A) |
| Height | 11.23 (mm) |
| Peak Reverse Current (A) | 5 (µA) |
| Diode Technology | Silicon Junction |
| Length | 29 (mm) |
| Package Type | GBPC-W |
| Peak Reverse Repetitive Voltage (V) | 800 (V) |
| Minimum Operating Temperature | -50 °C |
| Peak Forward Voltage (V) | 1.1 (V) |
| Configuration | Single |
| Maximum Operating Temperature | +150 °C |
| Pin Count | 4 |
| Dimensions | 29 x 29 x 11.23 (mm) |
No issues have been reported for the GBPC1508W
