GJM1555C1H5R6CB01D

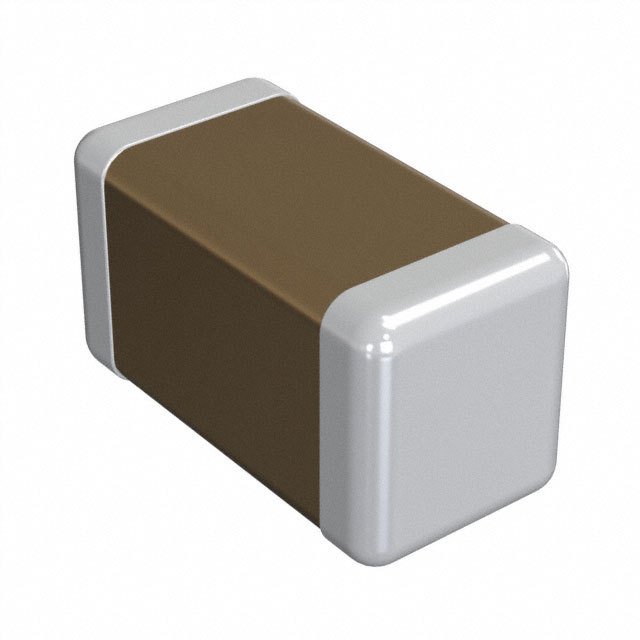

0402 5.6 pF 50V ±0.25 pF Tolerance C0G SMT Multilayer Ceramic Capacitor
Availability: Out of Stock
Package Type: 1005
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the GJM1555C1H5R6CB01D by Murata and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

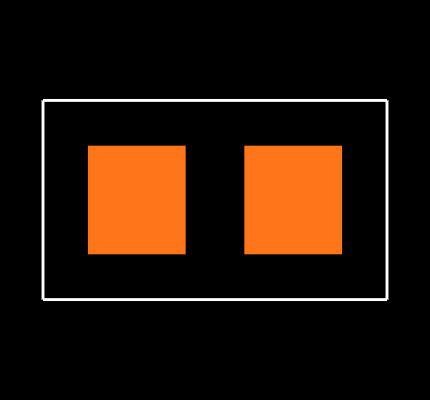

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the GJM1555C1H5R6CB01D
| Part Name | GJM1555C1H5R6CB01D |
| Manufacturer | Murata |
| Category | MLCCs - Multilayer Ceramic Capacitors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 1 x 0.5 x 0.5 (mm) |
| Mounting Type | Surface Mount |
| Tolerance | ±0.25 (pF) |
| Package Case | 0402 (1005M) |
| Series | GJM |
| Length | 1 (mm) |
| Height | 0.5 (mm) |
| Capacitance | 5.6 (pF) |
| Depth | 0.5 (mm) |
| Voltage (V) | 50 (V dc) |
| Minimum Operating Temperature | -55 (°C) |
| Maximum Operating Temperature | +125 (°C) |
| Terminal Type | Surface Mount |
| Dielectric | C0G |
