GL480

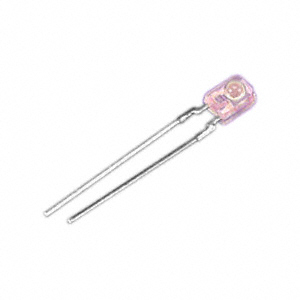

Infrared (IR) Emitter 950nm 1.2V 50mA - 26° Radial
Availability: Out of Stock
Package Type: RADIAL
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the GL480 by Sharp and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

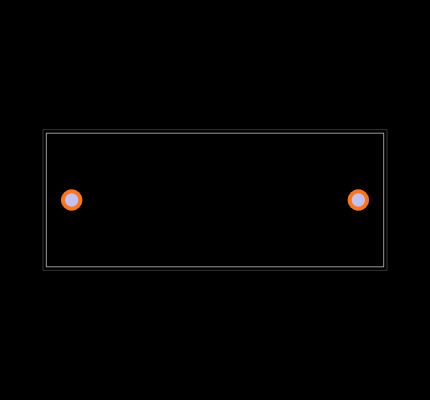

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the GL480
| Part Name | GL480 |
| Manufacturer | Sharp |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Dimensions | 3 x 2.95 x 4 (mm) |
| Mounting Type | Through Hole |
| Radiant Flux | 3 (mW) |
| Angle Of Half Intensity | 26 (°) |
| Package Type | Side Looker |
| Number Of Leds | 1 |
| Lens Shape | Round |
| Peak Wavelength | 950 (nm) |
| Number Of Pins | 2 |
