GP1A57HRJ00F
Optical Sensor Through-Beam 0.394" (10mm) PCB Mount
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the GP1A57HRJ00F by SHARP/Socle Technology and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

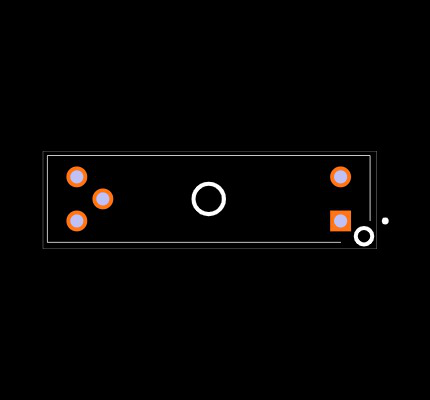

Footprint
No web preview
This Footprint is Available for

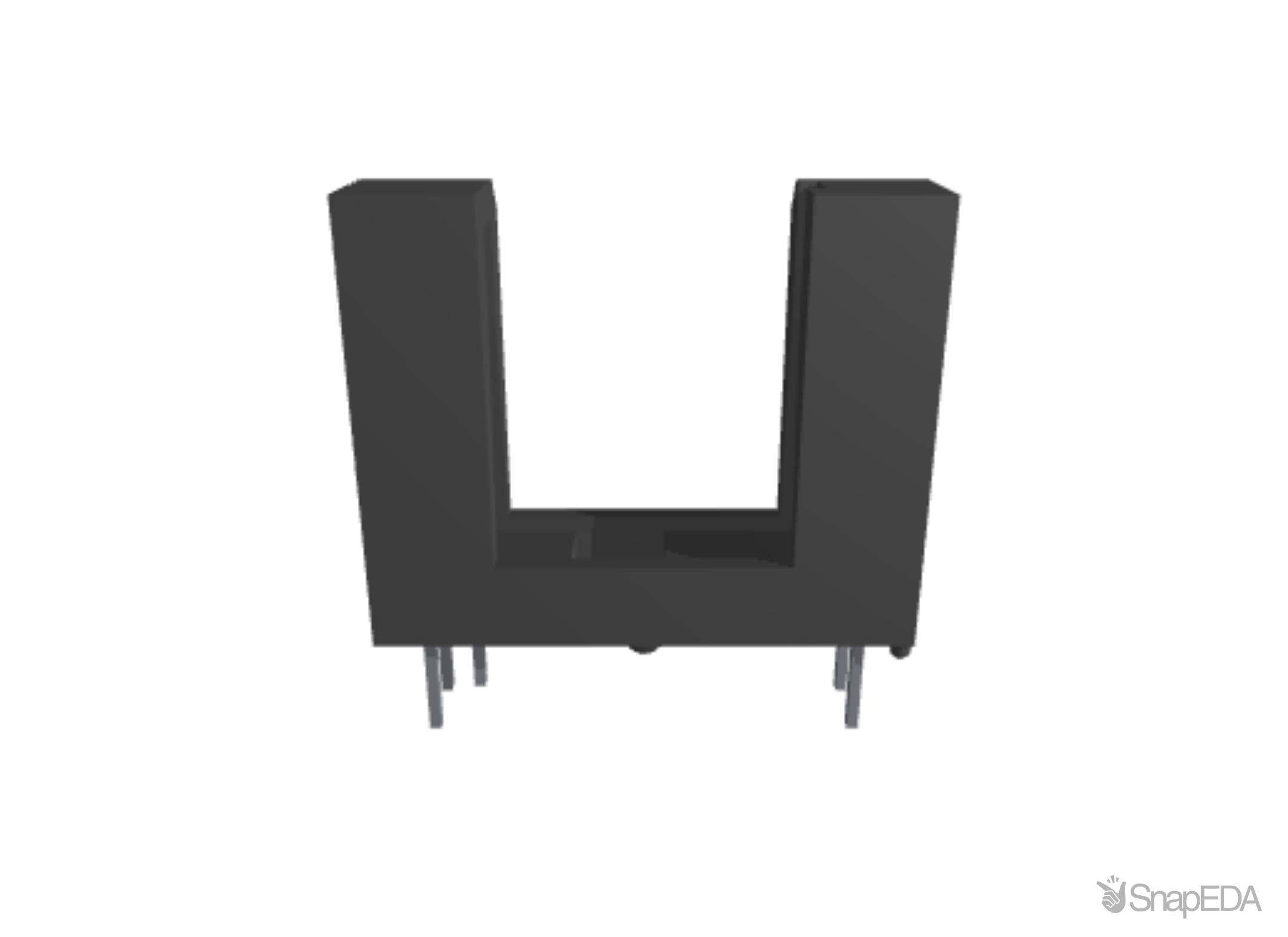

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the GP1A57HRJ00F
| Part Name | GP1A57HRJ00F |
| Manufacturer | SHARP/Socle Technology |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Output Device | Transistor |
| Dimensions | 18.6 x 15.2 x 5 (mm) |
| Mounting Type | Through Hole |
| Operating Temperature Range | -25 → +85 (°C) |
| Number Of Channels | 1 |
| Typical Rise Time | 0.5 (µs) |
| Height | 5 (mm) |
| Width | 15.2 (mm) |
| Length | 18.6 (mm) |
| Package Type | OPIC |
| Minimum Operating Temperature | -25 (°C) |
| Number Of Pins | 5 |
| Maximum Operating Temperature | +85 (°C) |
| Typical Fall Time | 0.5 (µs) |
No issues have been reported for the GP1A57HRJ00F
If you experienced any issues with the symbol or footprint, please report it.
