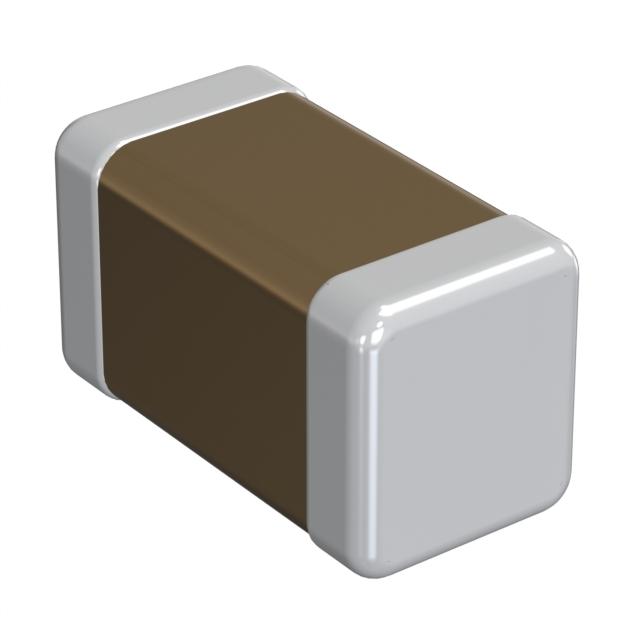

SMD Capacitor X5R(EIA) with Capacitance: 0.10uF Tol. 20%. Rated Voltage: 4Vdc
Package Type: 0402
CAD Models: Symbol, Footprint, 3D Model
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Specifications for the GRM022R60G104ME15L
|Formats Available for
Symbols and Footprints
|Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus|
|Datasheet||See Datasheet PDF|
We could not find inventory or pricing across major distributors for the GRM022R60G104ME15L by Murata.
