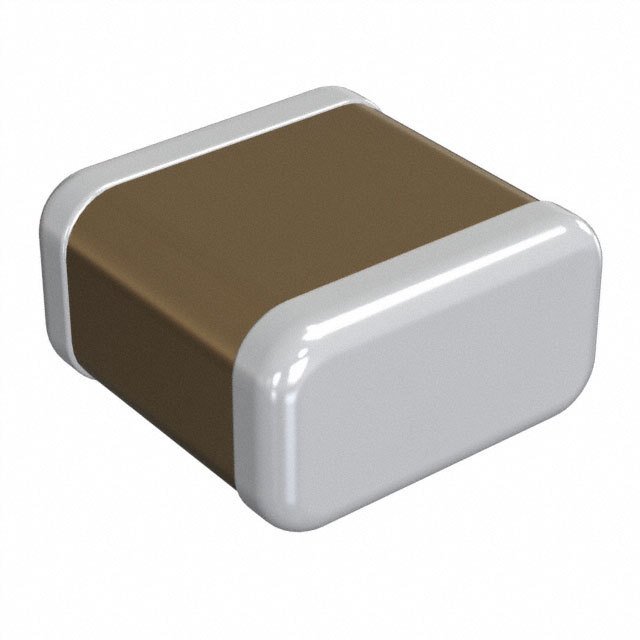

GRM033R71C332KA88D
3300 pF ±10% 16V Ceramic Capacitor X7R 0201 (0603 Metric)
Availability: In Stock
Package Type: 0603
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the GRM033R71C332KA88D by Murata and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

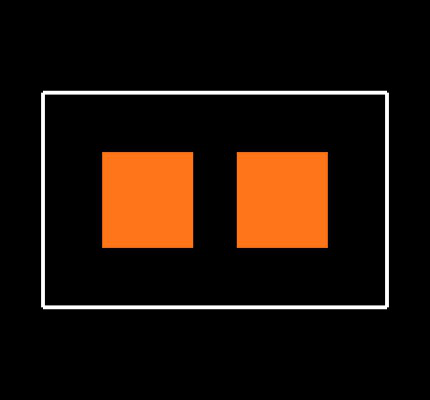

Footprint
No web preview
This Footprint is Available for

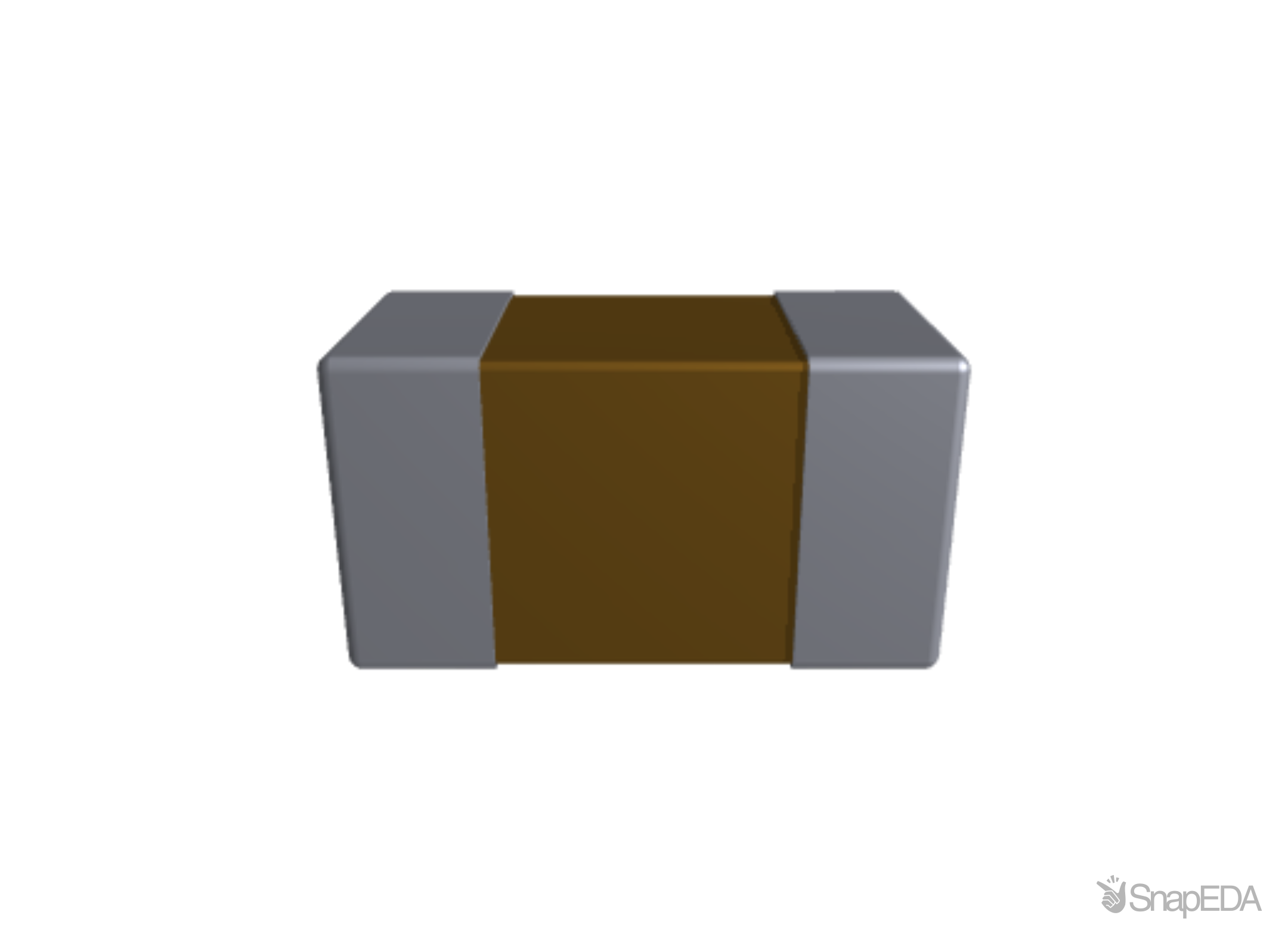

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the GRM033R71C332KA88D
| Part Name | GRM033R71C332KA88D |
| Manufacturer | Murata |
| Category | MLCCs - Multilayer Ceramic Capacitors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 0.6 x 0.3 x 0.3 (mm) |
| Mounting Type | Surface Mount |
| Package Case | 0201 (0603M) |
| Series | GRM |
| Depth | 0.3 (mm) |
| Height | 0.3 (mm) |
| Capacitance | 3.3 (nF) |
| Length | 0.6 (mm) |
| Voltage (V) | 16 (V dc) |
| Minimum Operating Temperature | -55 (°C) |
| Maximum Operating Temperature | +125 (°C) |
| Tolerance | ±10 (%) |
| Terminal Type | Solder |
| Dielectric | X7R |
Inventory for the GRM033R71C332KA88D by Murata from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
12,118
|
|
Visit Site | |
|
★ Featured
|
76,930
|
272,730 x $0.001
|
Visit Site | |
| Avnet America |
60,000
|
|
Visit Site | |
| Chip One Stop |
20,900
|
|
Visit Site | |
| Conrad |
|
|
Visit Site | |
| Farnell UK |
7,575
|
|
Visit Site | |
| Newark |
7,575
|
|
Visit Site | |
| TME |
11,886
|
|
Visit Site | |
| TTI Americas |
300,000
|
|
Visit Site | |
| element14 Singapore |
15,685
|
|
Visit Site |
No issues have been reported for the GRM033R71C332KA88D
