GRM033R71E102KA01D
0201 1 nF 25 V ±10% Tolerance X7R SMT Multilayer Ceramic Capacitor
Availability: In Stock
Package Type: 0603
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the GRM033R71E102KA01D by Murata and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

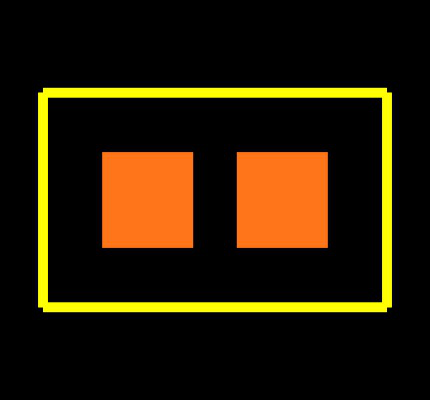

Footprint
No web preview
This Footprint is Available for

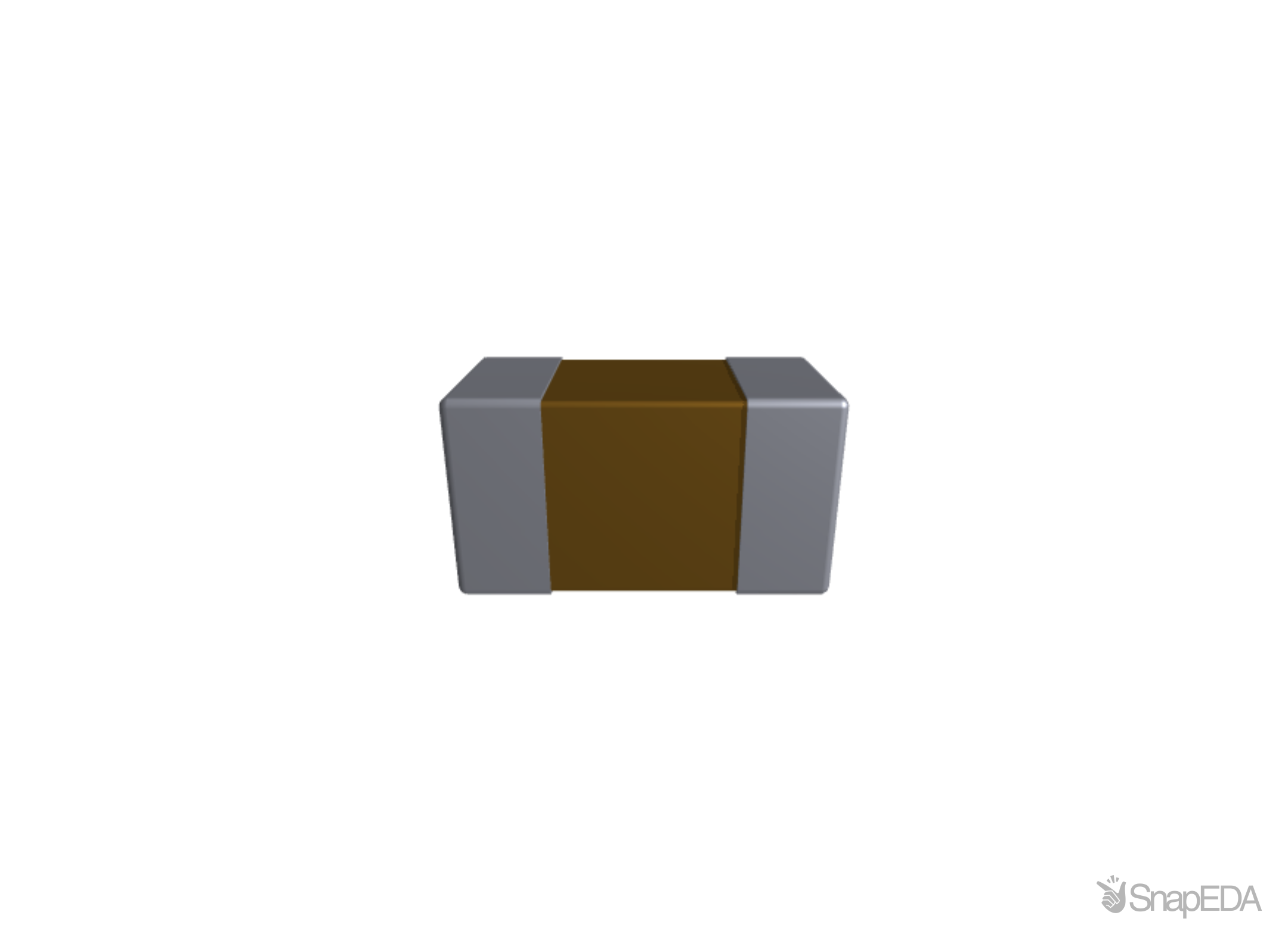

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the GRM033R71E102KA01D
| Part Name | GRM033R71E102KA01D |
| Manufacturer | Murata |
| Category | MLCCs - Multilayer Ceramic Capacitors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Mounting Type | Surface Mount |
| Series | GRM |
| Capacitance | 1 (nF) |
| Voltage (V) | 25 (V dc) |
| Minimum Operating Temperature | -55 (°C) |
| Maximum Operating Temperature | +125 (°C) |
| Tolerance | ±10 (%) |
| Dielectric | X7R |
| Package/Case | 0201 (0603M) |
Inventory for the GRM033R71E102KA01D by Murata from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Avnet America |
1,020,000
|
|
Visit Site | |
| Chip One Stop |
1,793,204
|
|
Visit Site | |
| Conrad |
795,000
|
|
Visit Site | |
| CoreStaff |
104,050
|
|
Visit Site | |
| Farnell UK |
120,000
|
15,000 x $0.002
|
Visit Site | |
| Newark |
120,000
|
10,000 x $0.002
|
Visit Site | |
| RS UK |
30,600
|
200 x $0.001
|
Visit Site | |
| Rutronik |
645,000
|
|
Visit Site | |
| TME |
9,389
|
|
Visit Site | |
| TTI Americas |
|
|
Visit Site | |
| element14 Singapore |
120,000
|
|
Visit Site |
No issues have been reported for the GRM033R71E102KA01D
If you experienced any issues with the symbol or footprint, please report it.
