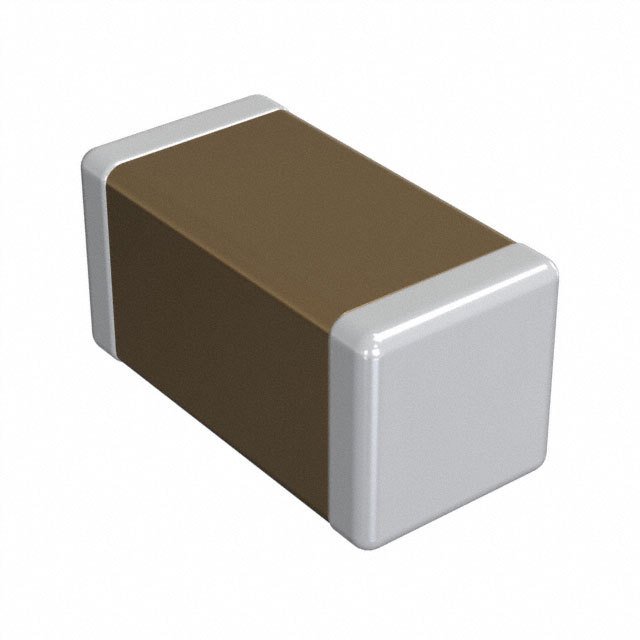

SMD Capacitor C0G(EIA) with Capacitance: 680pF Tol. 5%. Rated Voltage: 50Vdc
Package Type: 1608
CAD Models: Symbol, Footprint, 3D Model
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Specifications for the GRM1885C1H681JA01D
|Formats Available for
Symbols and Footprints
|Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus|
|Datasheet||See Datasheet PDF|
thats just stupid. if you had some thing where i could draw a simple symbol and make an accur... (more)
Added 1 week ago.
An Altium IntLib was prepared ( with Make Integrated Library ) with the schematic symbol and pcb ... (more)
Added 1 week, 6 days ago.
