GRT033C80J224KE01D
0.22 µF ±10% 6.3V Ceramic Capacitor X6S 0201 (0603 Metric)
Availability: Out of Stock
Package Type: 0603
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the GRT033C80J224KE01D by Murata Electronics North America and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

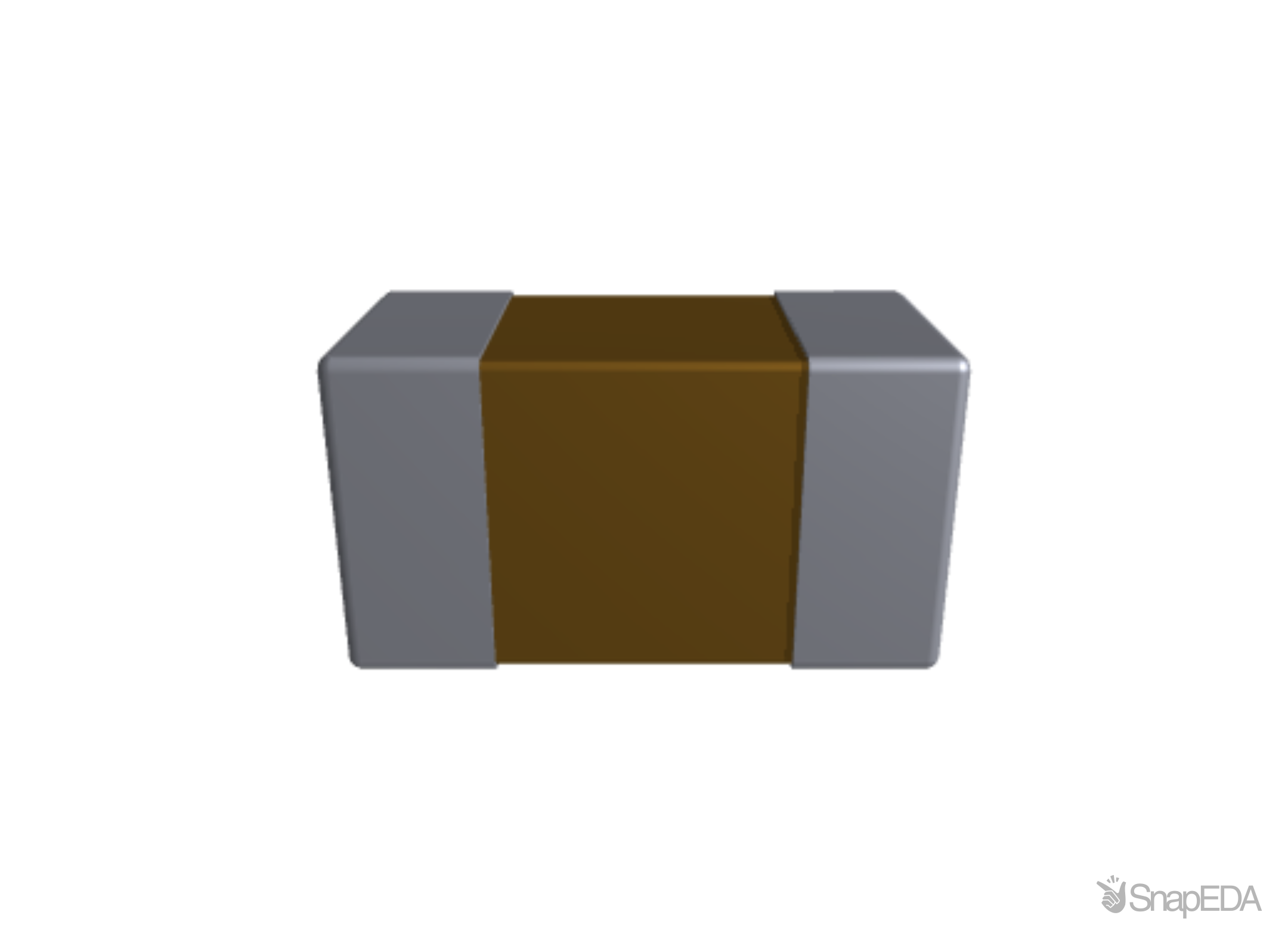

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the GRT033C80J224KE01D
| Part Name | GRT033C80J224KE01D |
| Manufacturer | Murata Electronics |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 0.6 x 0.3 x 0.33 (mm) |
| Mounting Type | Surface Mount |
| Tolerance | ±10 (%) |
| Package Case | 0201 (0603M) |
| Series | GRT |
| Length | 0.6 (mm) |
| Height | 0.33 (mm) |
| Capacitance | 220 (nF) |
| Depth | 0.3 (mm) |
| Voltage (V) | 6.3 (V dc) |
| Minimum Operating Temperature | -55 (°C) |
| Maximum Operating Temperature | +105 (°C) |
| Automotive Standard | AEC-Q200 |
| Dielectric | X6S |
No issues have been reported for the GRT033C80J224KE01D
