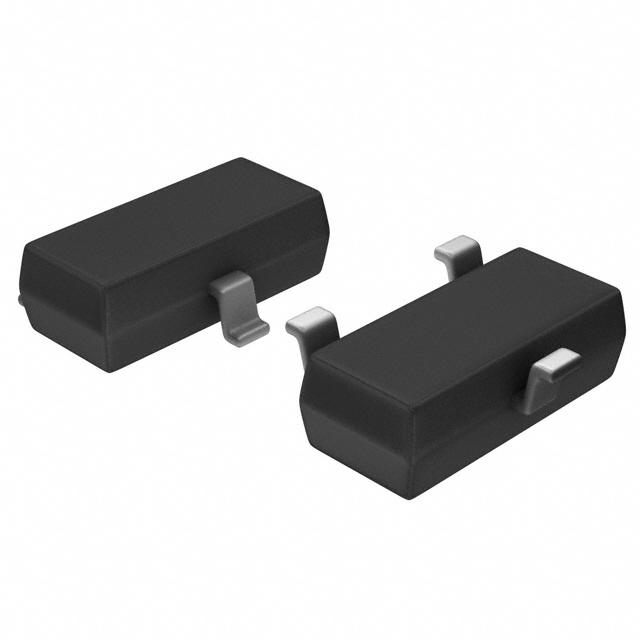

GSOT05-E3-08
16V Clamp 30A (8/20µs) Ipp Tvs Diode Surface Mount SOT-23-3
Availability: In Stock
Package Type: SOT-23
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the GSOT05-E3-08 by Vishay and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the GSOT05-E3-08
| Part Name | GSOT05-E3-08 |
| Manufacturer | Vishay Semiconductor |
| RoHS | True |
| Life Cycle Status | End of Life |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Reverse Stand Off Voltage (V) | 5 (V) |
| Maximum Peak Pulse Current (A) | 30 (A) |
| Capacitance | 350 (pF) |
| Dimensions | 3.1 x 1.43 x 1.05 (mm) |
| Minimum Breakdown Voltage (V) | 6 (V) |
| Direction Type | Bi-Directional |
| Maximum Operating Temperature | +125 °C |
| Maximum Reverse Leakage Current (A) | 20 (µA) |
| Esd Protection | Yes |
| Height | 1.05 (mm) |
| Width | 1.43 (mm) |
| Length | 3.1 (mm) |
| Package Type | SOT-23 |
| Number Of Elements Per Chip | 1 |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Surface Mount |
| Maximum Clamping Voltage (V) | 8.7 (V) |
| Diode Configuration | Single |
| Pin Count | 3 |
| Peak Pulse Power Dissipation | 480 (W) |
| Test Current (A) | 1 (mA) |
Inventory for the GSOT05-E3-08 by Vishay from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
N/A | Visit Site | |
|
★ Featured
|
9,369
|
775 x $0.39
|
Visit Site | |
| Verical |
10,053
|
|
Visit Site |
No issues have been reported for the GSOT05-E3-08
