GTCL020R1810S

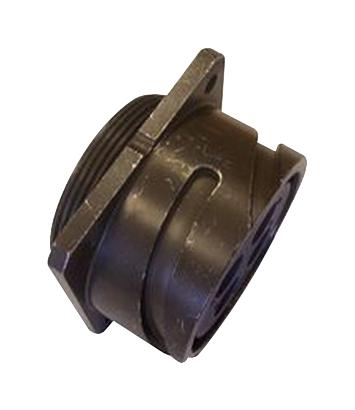

CIRCULAR, SIZE 18, 4WAYS, SKT; Product Range:GT Series, MIL-DTL-5015 Series Equivalent; Circular Connector Shell Style:Box Mount Receptacle; No. of Contacts:4Contacts; Circular Contact Type:Crimp Socket; Coupling Style:Reverse Bayonet; Insert Arrangement:18-10; Connector Body Material:Aluminium Alloy Body; Connector Body Plating:Olive Drab Chromate over Cadmium; Contact Material:Copper Alloy; Contact Plating:Silver; Insert Rotation:N; Service Class:General Duty; Approval Category:MIL-C-5015; Connector Mounting:Box Mount; Connector Shell Size:18; Connector Type:Circular Industrial; Contact Gender:Socket; Contact Plating:Silver Plated Contacts; Contact Termination:Crimp; Contact Termination Type:Crimp; Gender:Receptacle
Availability: Out of Stock
