HCPL-2531-000E
Optoisolator Transistor Output 3750Vrms 2 Channel 8-DIP
Availability: In Stock
Package Type: DIP-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the HCPL-2531-000E by Broadcom and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

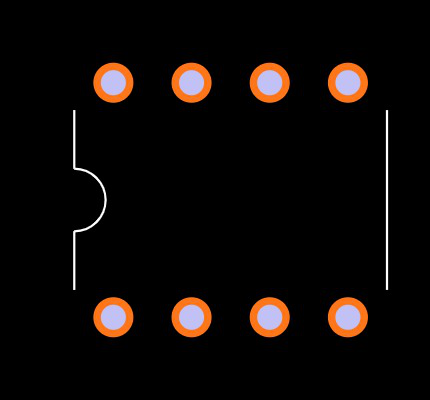

Footprint
No web preview
This Footprint is Available for

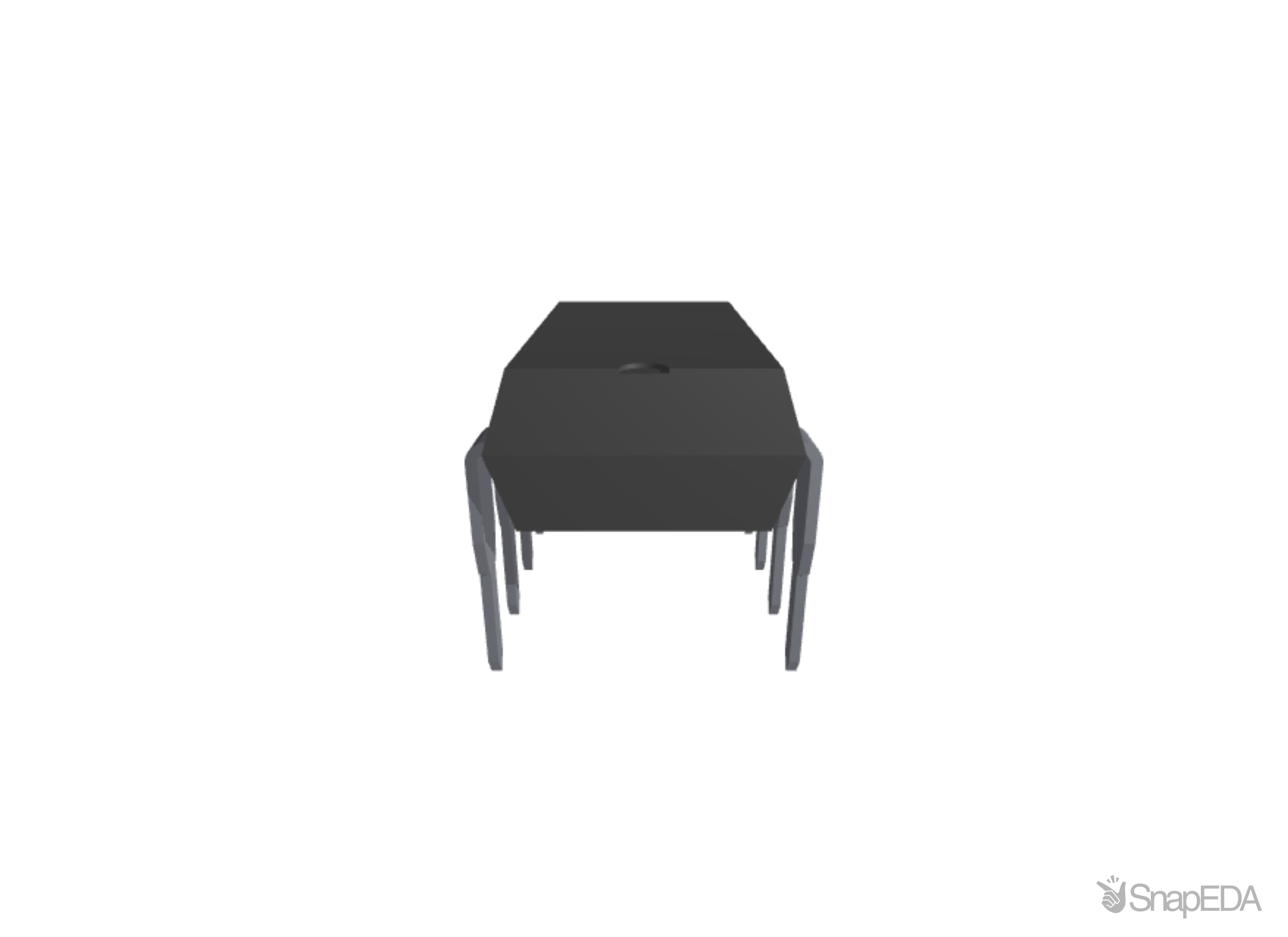

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the HCPL-2531-000E
| Part Name | HCPL-2531-000E |
| Manufacturer | Broadcom Limited |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Forward Voltage (V) | 1.7 (V) |
| Output Device | Transistor |
| Input Current Type (A) | DC |
| Mounting Type | Through Hole |
| Package Type | PDIP |
| Series | HCPL |
| Maximum Current Transfer Ratio (A) | 50 (%) |
| Isolation Voltage (V) | 5 kVrms |
| Number Of Channels | 2 |
| Minimum Current Transfer Ratio (A) | 19 (%) |
| Number Of Pins | 8 |
| Maximum Input Current (A) | 25 mA |
| Logic Output | Yes |
