HCPL-2531-300E

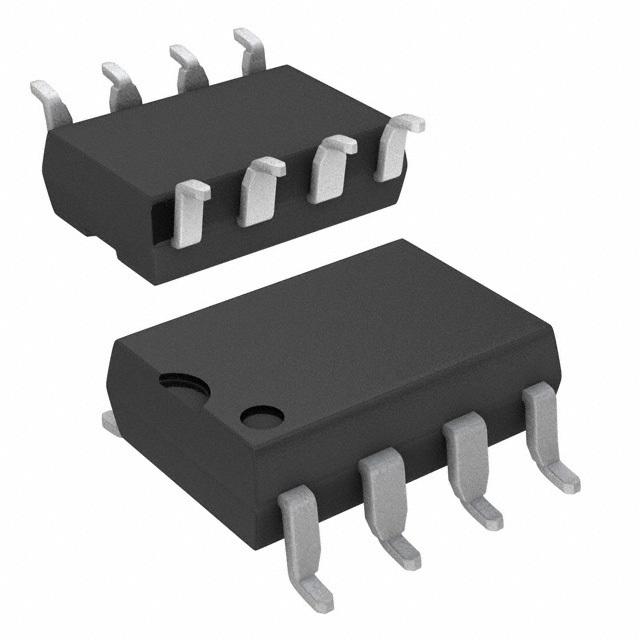

Optoisolator Transistor Output 3750Vrms 2 Channel 8-DIP Gull Wing
Availability: Out of Stock
Package Type: 8-SMD
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the HCPL-2531-300E by Broadcom and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

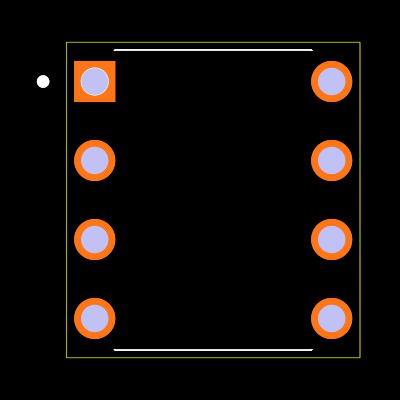

- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the HCPL-2531-300E
| Part Name | HCPL-2531-300E |
| Manufacturer | Broadcom Limited |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Forward Voltage (V) | 1.8 (V) |
| Output Device | Phototransistor |
| Input Current Type (A) | DC |
| Mounting Type | Surface Mount |
| Series | HCPL |
| Number Of Channels | 2 |
| Maximum Current Transfer Ratio (A) | 50 (%) |
| Isolation Voltage (V) | 3750 Vrms |
| Package Type | DIP |
| Number Of Pins | 8 |
| Maximum Input Current (A) | 25 mA |
| Logic Output | Yes |
