HD-EMB1104-LW15-R
11X4MM ERM HAPTIC 12000RPM 30OHM 3V 90MA BAR LEAD WIRES
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the HD-EMB1104-LW15-R by PUI Audio and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

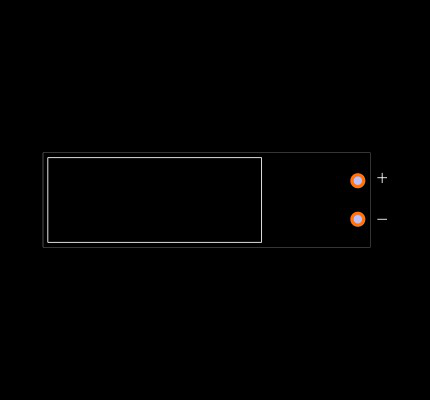

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the HD-EMB1104-LW15-R
| Part Name | HD-EMB1104-LW15-R |
| Manufacturer | PUI Audio |
| Voltage Min (V) | 2.4 |
| Lead Time | 70 |
| Current Draw in mA (A) | 90.0 |
| MULT | 50 |
| Status | Active |
| SPQ | 50 |
| Weight in grams | 1.0 |
| Tolerance percentage | 20.0 |
| REACH | Yes |
| SPU | TRAY |
| Tolerance RPM | [0.0, 3.0] |
| Additional Features | lead wires |
| Product Link | https://puiaudio.com/product/haptics/hdemb1104lw15r |
| Country Code | CN |
| Operating Temp. | -20 to 60 |
| RoHS | Yes |
| HTS Code | 8501.10.4040 |
| Rated Speed RPM | [0.0, 12.0] |
| MOQ | 50 |
| Rated Voltage (V) | 3.0 |
| Dimmensions in mm. | 11.1 x 4.4 x 4.4 |
| Voltage Max (V) | 3.6 |
