HD-PAB2001-LW100
20MM PIEZO HAPTIC 12000HZ 60000PF 90V ROUND LEAD WIRES
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the HD-PAB2001-LW100 by PUI Audio and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

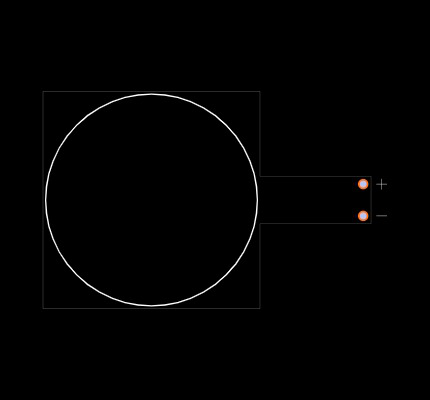

Footprint
No web preview
This Footprint is Available for

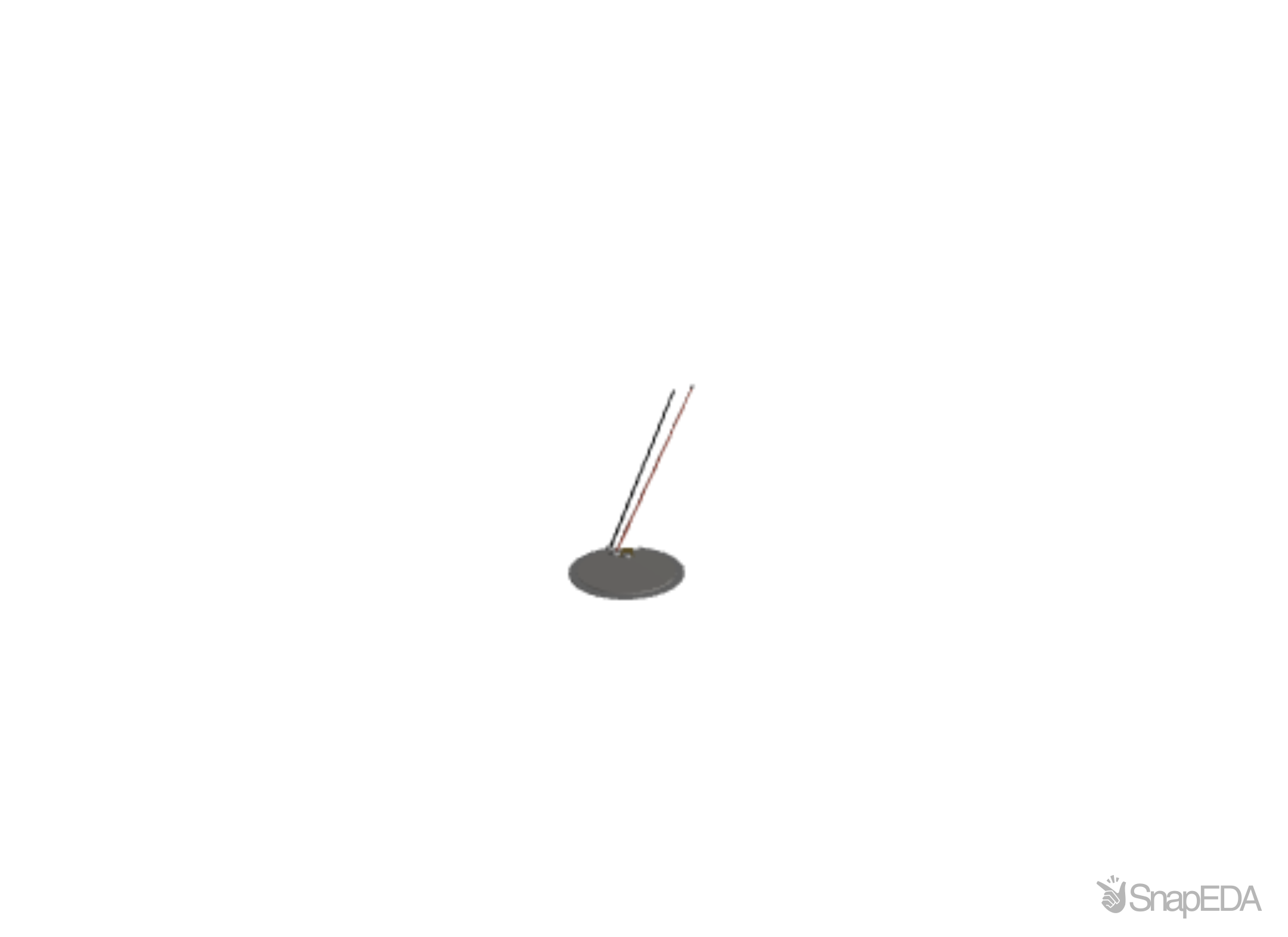

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the HD-PAB2001-LW100
| Part Name | HD-PAB2001-LW100 |
| Manufacturer | PUI Audio |
| Status | Active |
| HTS Code | 8531.80.9041 |
| Exemption | 7C |
| SPQ | 240 |
| MOQ | 1000 |
| Product Link | https://puiaudio.com/product/haptics/hdpab2001lw100 |
| REACH | No |
| SPU | BOX |
| Country Code | CN |
| Rated Voltage (V) | 90.0 |
| Capacitance | 60000.0 |
| Dimmensions in mm. | 20 x 20 x 0.7 |
| MULT | 240 |
| Operating Temp. | -10 to 70 |
| Voltage Max (V) | 95.0 |
| Lead Time | 60 |
| Additional Features | lead wires |
| Resonant Frequency Khz | 12.0 |
| RoHS | Yes |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
