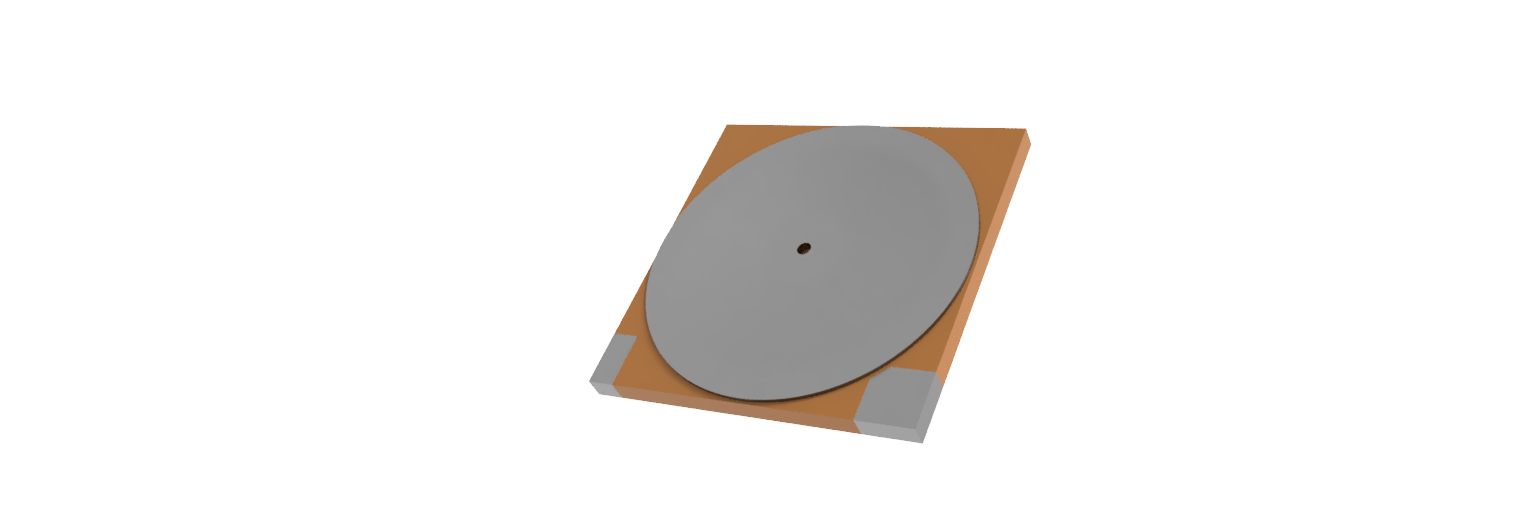

HD-PAC1212
12X12MM PIEZO HAPTIC 24000HZ 1000000PF 80V SQUARE
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the HD-PAC1212 by PUI Audio and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

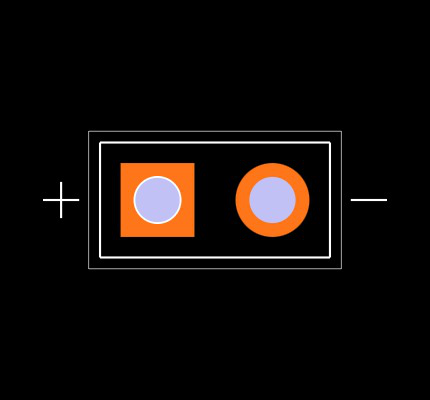

Footprint
No web preview
This Footprint is Available for

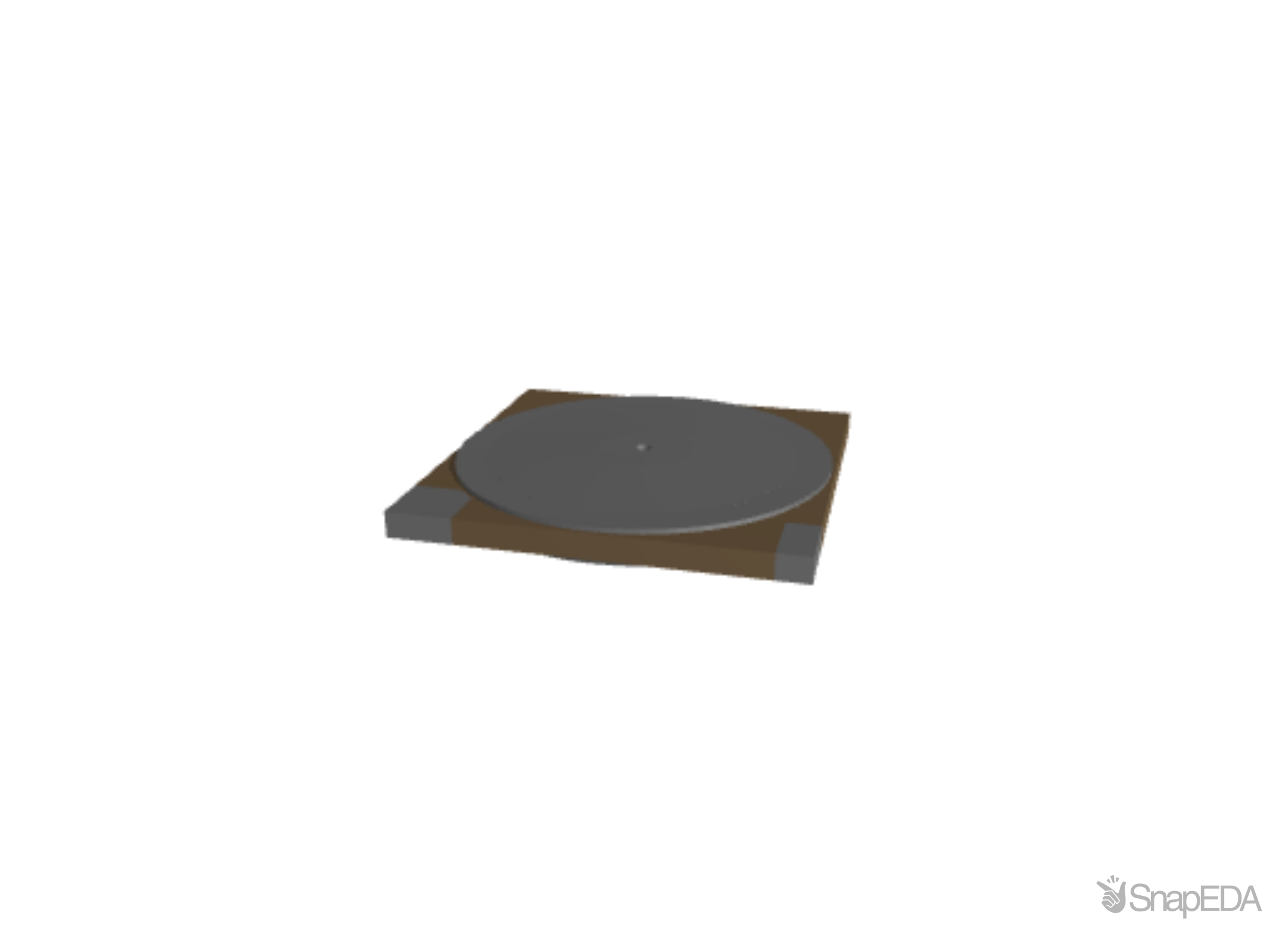

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the HD-PAC1212
| Part Name | HD-PAC1212 |
| Manufacturer | PUI Audio |
| Status | Active |
| RoHS | Yes |
| HTS Code | 8531.80.9041 |
| Exemption | 7C |
| Voltage Min (V) | 20.0 |
| MOQ | 1000 |
| Voltage Max (V) | 60.0 |
| REACH | No |
| SPU | TRAY |
| Country Code | CN |
| Rated Voltage (V) | 80.0 |
| Capacitance | 1000000.0 |
| Dimmensions in mm. | 12 x 12 x 1.44 |
| SPQ | 80 |
| Operating Temp. | -25 to 60 |
| Product Link | https://puiaudio.com/product/haptics/hdpac1212 |
| Lead Time | 115 |
| Weight in grams | 1.04 |
| Resonant Frequency Khz | 24.0 |
| MULT | 80 |
