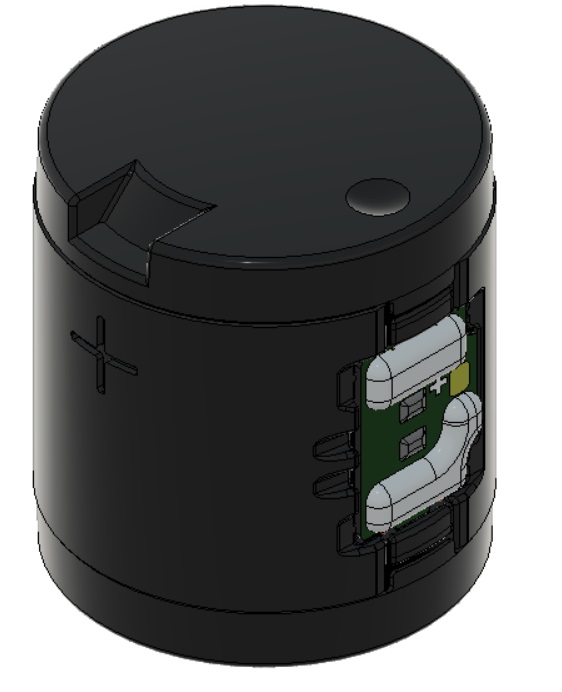

HD-VA2527
25MM VCA HAPTIC 65HZ 5.7OHM 1V ROUND SOLDER PADS
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the HD-VA2527 by PUI Audio and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

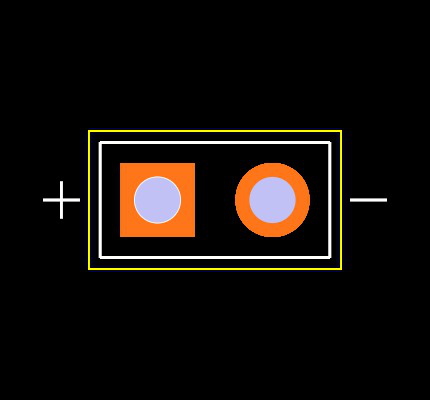

Footprint
No web preview
This Footprint is Available for

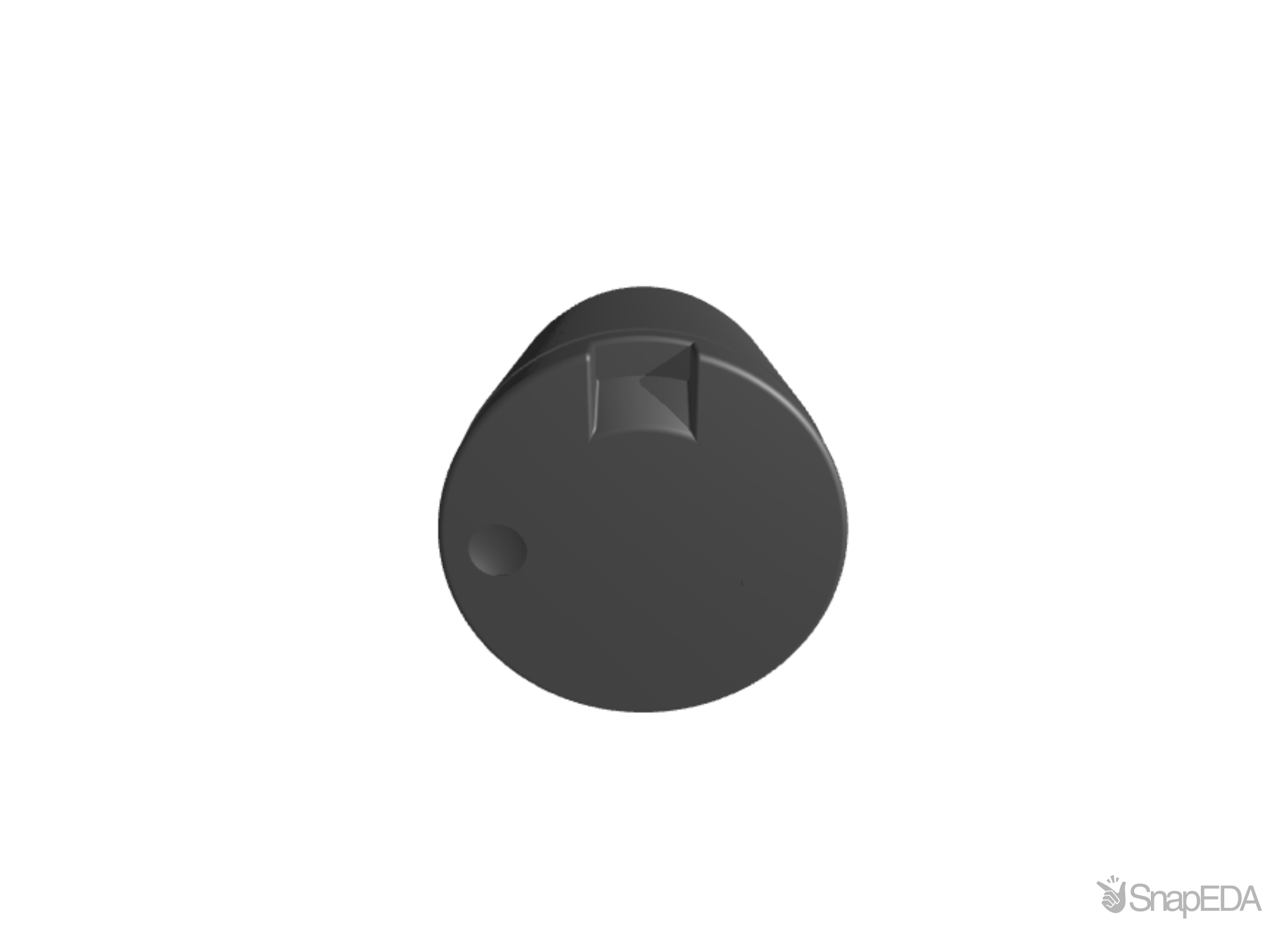

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the HD-VA2527
| Part Name | HD-VA2527 |
| Manufacturer | PUI Audio |
| Status | Active |
| HTS Code | 8501.10.4060 |
| SPQ | 300 |
| MOQ | 300 |
| Product Link | https://puiaudio.com/product/haptics/hdva2527 |
| REACH | Yes |
| SPU | REEL |
| Country Code | VN |
| Rated Voltage (V) | 1.0 |
| Dimmensions in mm. | 25 x 25 x 27 |
| MULT | 50 |
| Operating Temp. | 0 to 50 |
| Voltage Max (V) | 3.0 |
| Lead Time | 130 |
| Additional Features | solder pads |
| Weight in grams | 28.0 |
| RoHS | Yes |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
No issues have been reported for the HD-VA2527
