HD16-9-96S

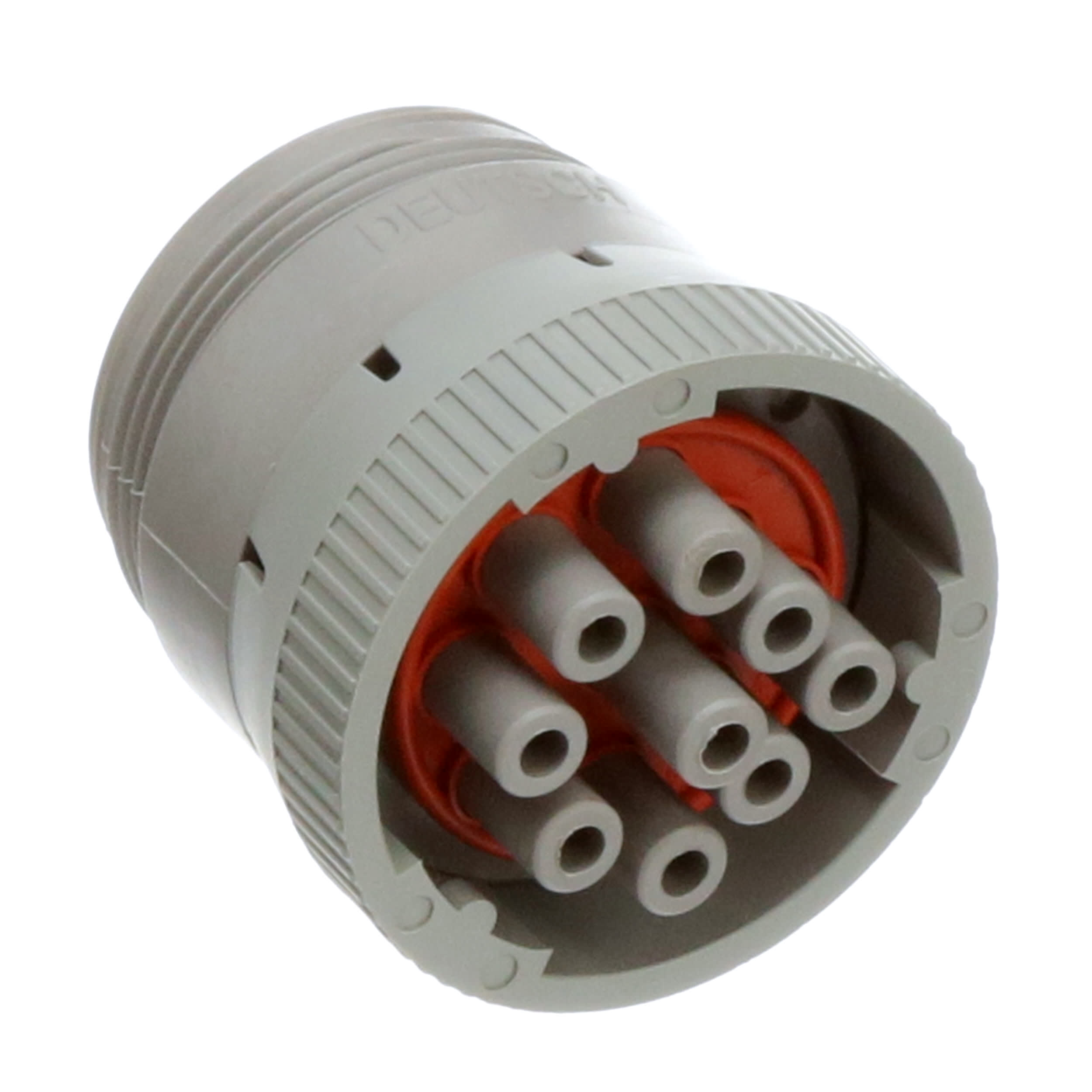

HD10 SER 9 Pole Cable Mount Conn Plug 9Size Female Contacts PushPull Mating | TE Connectivity HD16-9-96S
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the HD16-9-96S by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

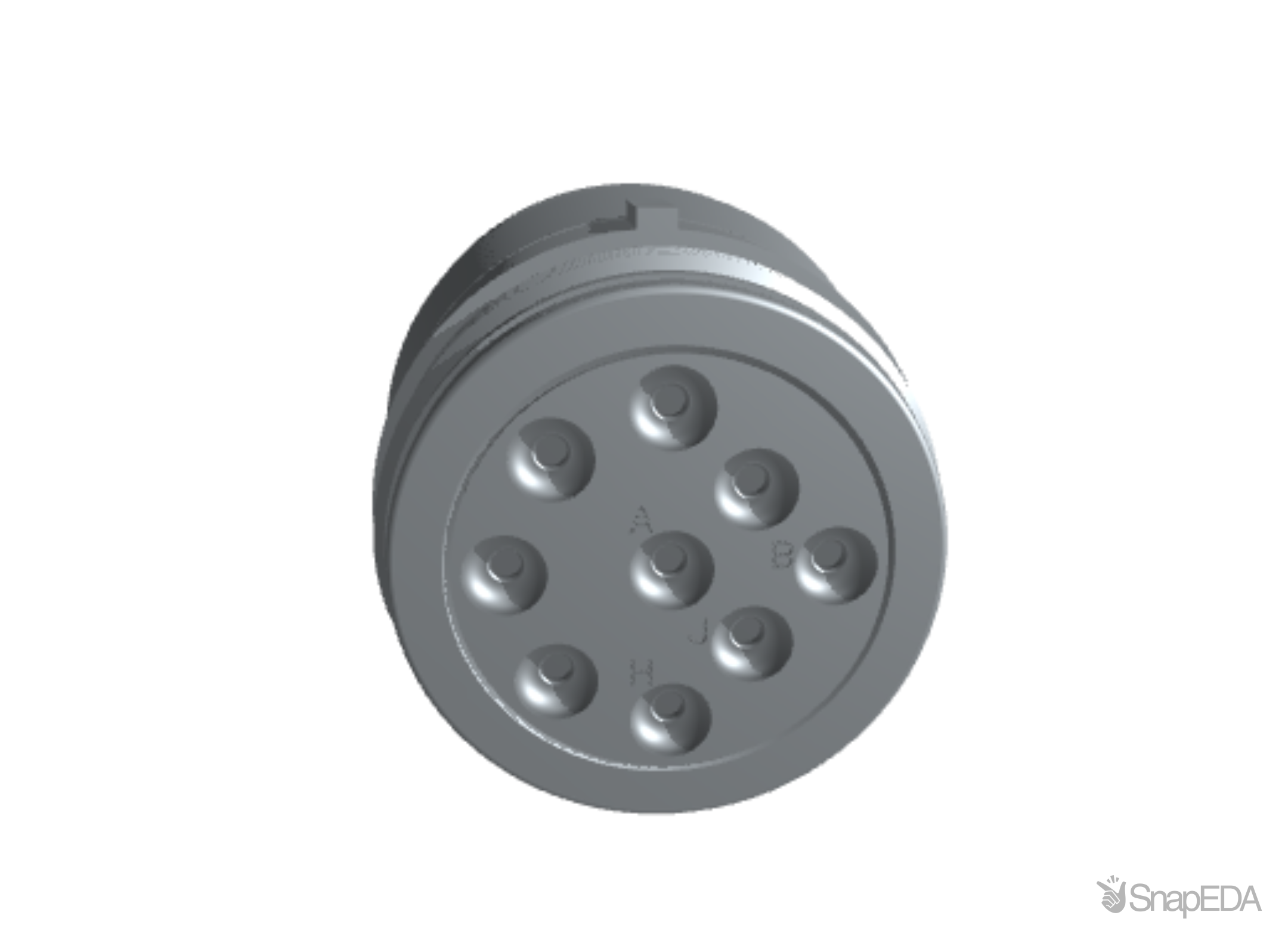

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the HD16-9-96S
| Part Name | HD16-9-96S |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Circuit Application | Power & Signal |
| Mounting Feature | Without |
| Operating Voltage (V) | 250 |
| Connector Position Assurance Capable | No |
| Connector Style | Housing for female terminals |
| Number of Positions | 9 |
| Operating Temperature Range | -67 – 257 |
| TE Internal Number | HD16-9-96S |
| Connector System | Wire-to-Wire |
| Sealable | Yes |
| Terminal Position Assurance | No |
| Nominal Voltage Architecture (V) | 80 |
| Polarized | Yes |
| Length | 1.632 |
| Hybrid Connector | No |
| Degree of Protection | IP68 |
| Packaging Method | Box |
| Packaging Quantity | 250 |
| Body Material | PA GF |
| Cable Exit Angle | 180° |
| Serviceable | Yes |
| RoHS | True |
| Strain Relief | Add By Accessory |
| Color | Gray |
| UL Flammability Rating | UL 94V-1 |
| Height | 40.39 |
| Primary Locking Feature | Integrated in Housing |
| Mating Pin Diameter | .059 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the HD16-9-96S by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
568
|
|
Visit Site | |
|
★ Featured
|
992
|
|
Visit Site | |
|
★ Featured
|
1,746
|
|
Visit Site | |
| Arrow Electronics |
27
|
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Conrad |
1
|
1 x $12.62
|
Visit Site | |
| Farnell UK |
190
|
|
Visit Site | |
| Newark |
466
|
|
Visit Site | |
| Onlinecomponents |
402
|
|
Visit Site | |
| RS UK |
222
|
|
Visit Site | |
| TME |
292
|
|
Visit Site | |
| TTI Europe |
|
|
Visit Site | |
| Verical |
27
|
|
Visit Site | |
| element14 Singapore |
190
|
|
Visit Site |
No issues have been reported for the HD16-9-96S
