HD36-18-14SN-059
Housing for Female Terminal, Hybrid, 14Position, Sealable, Green, HD30 Series | TE Connectivity HD36-18-14SN-059
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the HD36-18-14SN-059 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

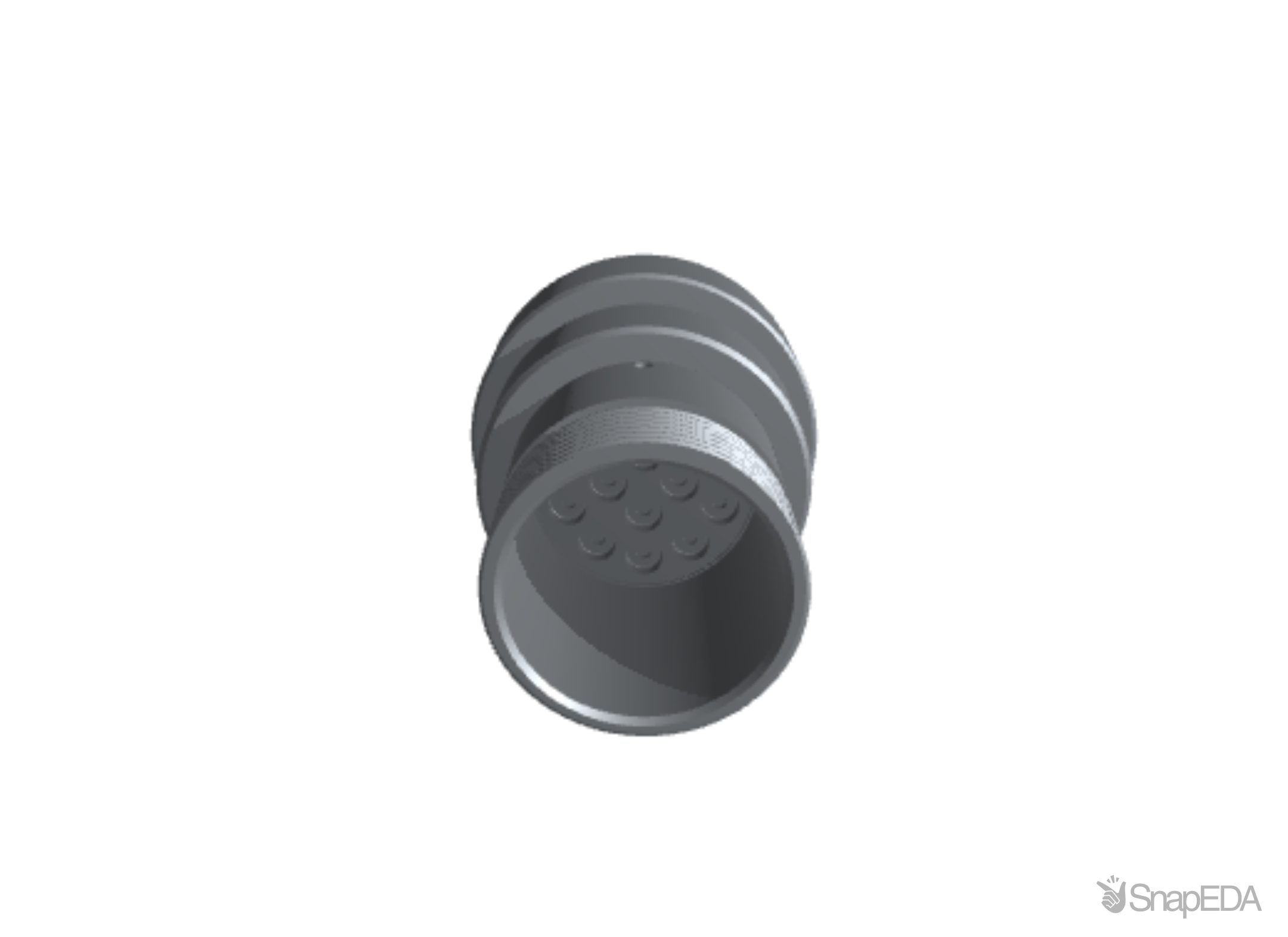

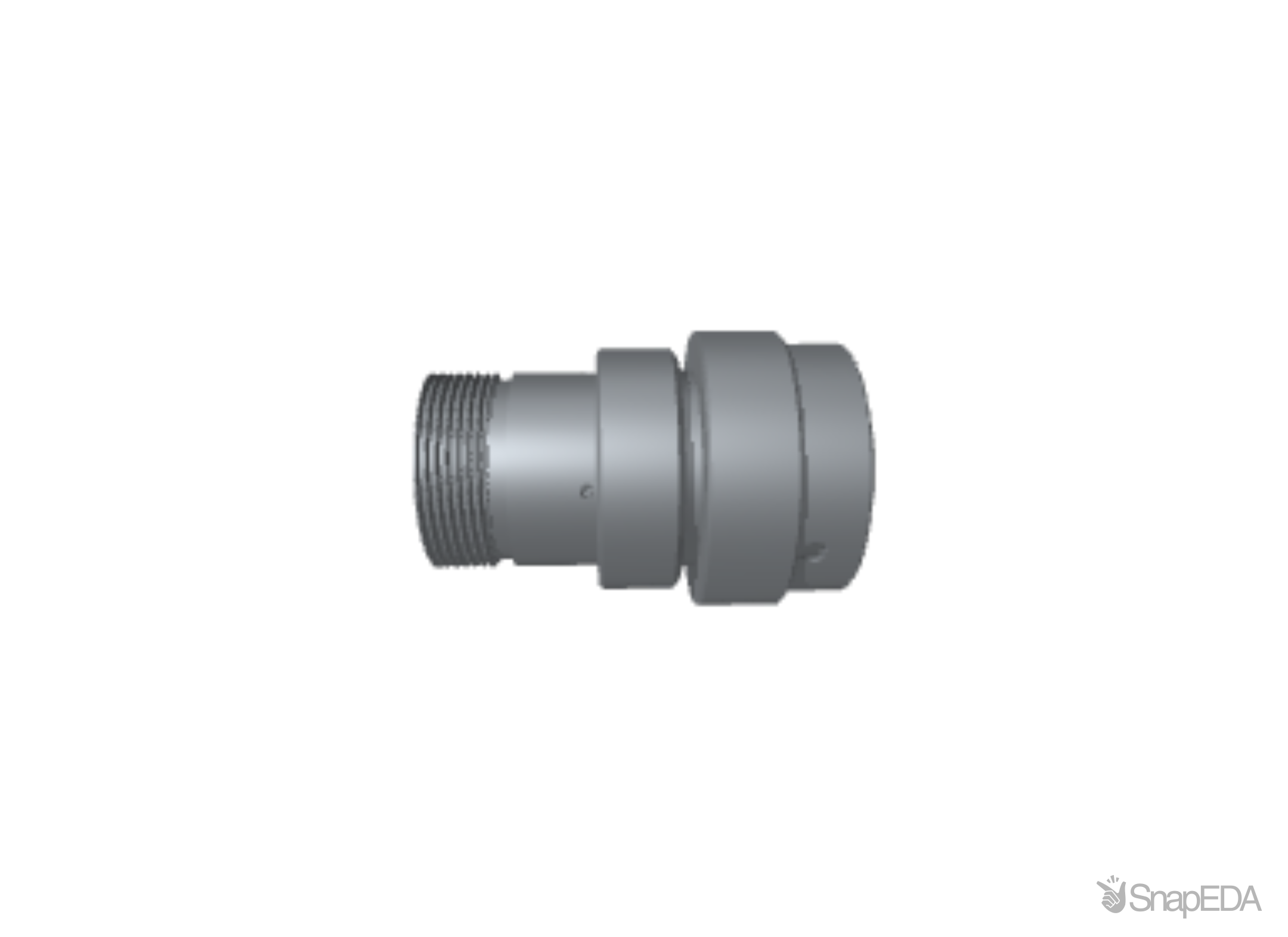

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the HD36-18-14SN-059
| Part Name | HD36-18-14SN-059 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Circuit Application | Power & Signal |
| Mounting Feature | Without |
| Operating Voltage (V) | 250 |
| Connector Style | Housing for female terminals |
| Connector Position Assurance Capable | No |
| Number of Positions | 14 |
| Operating Temperature Range | -67 – 257 |
| TE Internal Number | HD36-18-14SN-059 |
| Connector System | Wire-to-Wire |
| Strain Relief | Add By Accessory |
| Terminal Position Assurance | No |
| Nominal Voltage Architecture (V) | 42 |
| Polarized | Yes |
| Hybrid Connector | No |
| Degree of Protection | IP67 |
| Packaging Method | Package |
| Packaging Quantity | 1 |
| Length | 77.7 |
| Cable Exit Angle | 180° |
| Serviceable | Yes |
| RoHS | True |
| Sealable | Yes |
| Color | Green |
| Body Material | Other |
| Height | 1.692 |
| Primary Locking Feature | Integrated in Housing |
| Mating Pin Diameter | .059 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
