HDP26-24-29PE
DEUTSCH Automotive;CONN PLUG HSNG MALE 29POS INLINE | TE Connectivity HDP26-24-29PE
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the HDP26-24-29PE by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

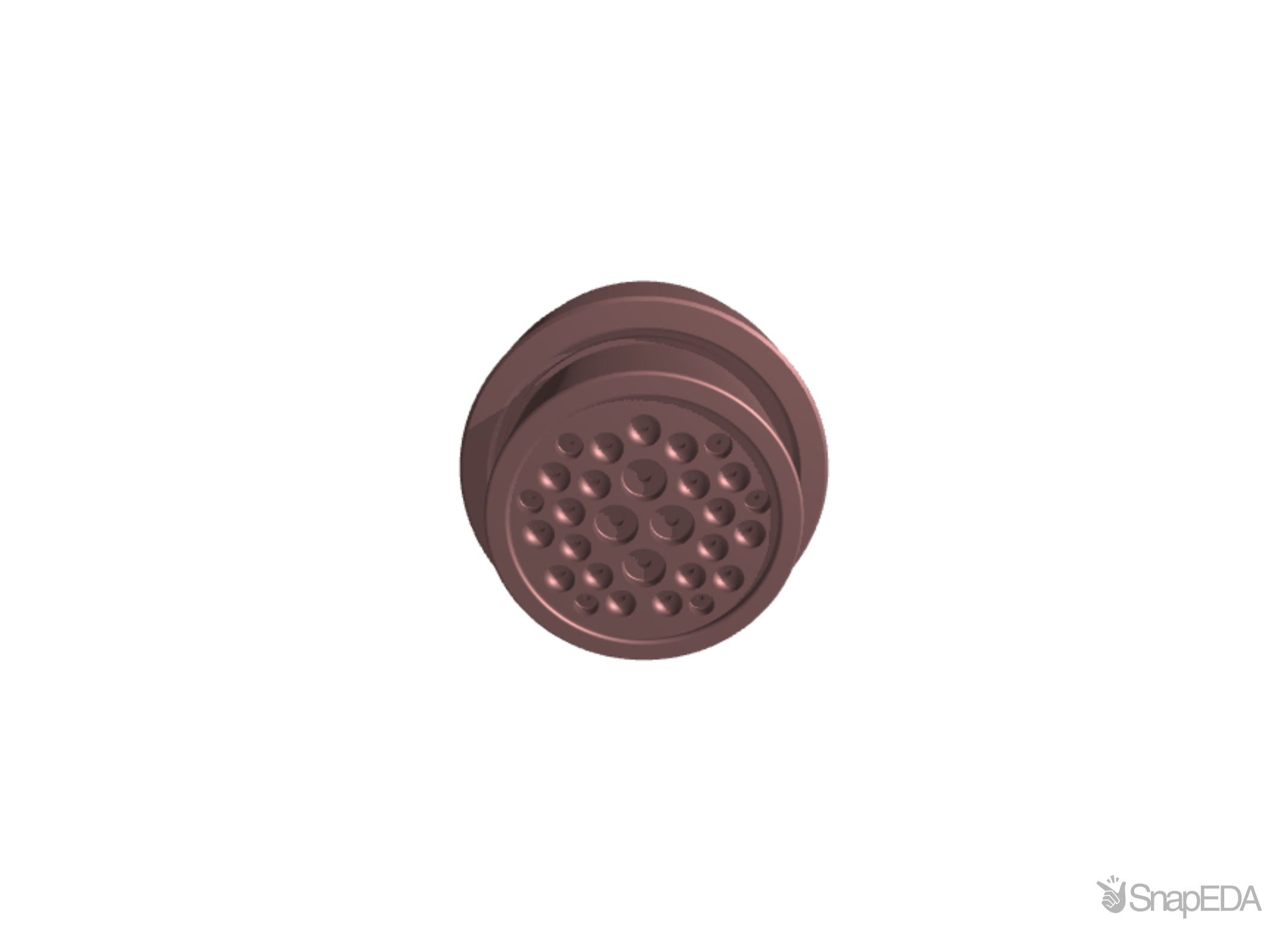

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the HDP26-24-29PE
| Part Name | HDP26-24-29PE |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Circuit Application | Power & Signal |
| Mounting Feature | Without |
| Connector Position Assurance Capable | No |
| Connector Style | Housing for male terminals |
| Number of Positions | 29 |
| Hybrid Connector | Yes |
| TE Internal Number | HDP26-24-29PE |
| Connector System | Wire-to-Wire |
| Strain Relief | Add By Accessory |
| Terminal Position Assurance | No |
| Nominal Voltage Architecture (V) | 48 |
| Polarized | Yes |
| Length | 1.521 |
| Operating Temperature Range | -67 – 257 |
| Degree of Protection | IP67 |
| Serviceable | Yes |
| Body Material | PA GF |
| Cable Exit Angle | 180° |
| RoHS | True |
| Sealable | Yes |
| Color | Blue |
| UL Flammability Rating | UL 94V-1 |
| Height | 49.53 |
| Primary Locking Feature | Integrated in Housing |
| Mating Pin Diameter | 1.5 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the HDP26-24-29PE by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
272
|
|
Visit Site | |
|
★ Featured
|
254
|
|
Visit Site | |
|
★ Featured
|
307
|
N/A | Visit Site | |
| Conrad |
|
1 x $36.48
|
Visit Site | |
| Onlinecomponents |
288
|
|
Visit Site | |
| Powell Electronics |
26
|
|
Visit Site | |
| TE Store |
294
|
1 x $19.98
|
Visit Site | |
| TME |
89
|
|
Visit Site | |
| TTI Americas |
3,910
|
|
Visit Site | |
| Verical |
89
|
15 x $13.45
|
Visit Site |
No issues have been reported for the HDP26-24-29PE
