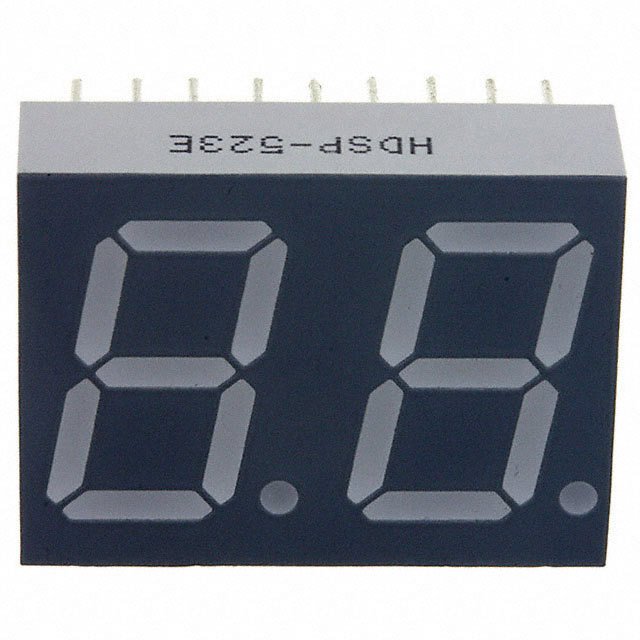

HDSP-523E
Display Modules - LED Character and Numeric Red 7-Segment 2 Character Common Cathode 2.05V 20mA 0.732" H x 0.984" W x 0.315" D (18.60mm x 25.00mm x 8.00mm) 18-DIP (0.600", 15.24mm)
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the HDSP-523E by Broadcom and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

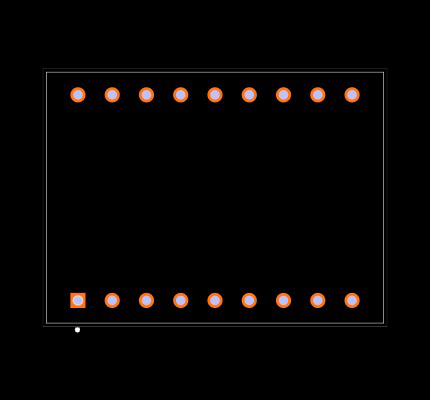

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the HDSP-523E
| Part Name | HDSP-523E |
| Manufacturer | Broadcom |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Display Type | 7-Segment |
| Colour Of Face | Grey |
| Minimum Operating Temperature | -35 (°C) |
| Mounting Type | Through Hole |
| Operating Temperature Range | -35 → +85 (°C) |
| Common Connection | Cathode |
| Forward Current (A) | 90 (mA) |
| Number Of Characters | 2 |
| Character Height | 14.2 (mm) |
| Forward Voltage (V) | 25 V |
| External Depth | 18.6 (mm) |
| Character Width | 7.8 (mm) |
| External Dimensions | 25 x 18.6 x 8 (mm) |
| Dominant Wavelength | 628 nm |
| Luminous Intensity | 7.69 mcd |
| Led Colour(S) | Red |
| Number Of Segments | 14 |
| Decimal Orientation | Right Side |
| External Height | 8 (mm) |
| External Width | 25 (mm) |
| Maximum Operating Temperature | +85 (°C) |
