HEF4027BP
IC, 4000 LOCMOS LOGIC; Logic Family / Base Number: HEF4027; Flip-Flop Type: JK; Propagation Delay: 30ns; Frequency: 30MHz; Output Current: 2.4mA; Logic Case Style: DIP; No. of Pins: 16Pins; Trigger Type: Positive Edge; IC Output Type: Complementary; Supply Voltage Min: 4.5V; Supply Voltage Max: 15.5V; Logic IC Family: HEF4000; Logic IC Base Number: 4027; Operating Temperature Min: -40°C; Operating Temperature Max: 70°C; Product Range: -; Automotive Qualification Standard: -; MSL: -; SVHC: No SVHC (15-Jan-2018); Base Number: 4027; Device Marking: HEF4027BP; Logic Function Number: 4027; Logic IC Base Number: 4027; Logic IC Function: Dual J-K Master/Slave Flip-Flop; No. of Gates: 2; Operating Temperature Range: -40°C to +70°C; Supply Voltage: 15V; Supply Voltage Range: 4.5V to 15.5V; Termination Type: Through Hole
Availability: Out of Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the HEF4027BP by Nexperia and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

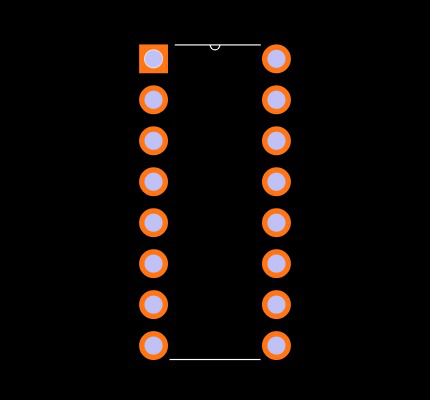

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the HEF4027BP
| Part Name | HEF4027BP |
| Manufacturer | Nexperia |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
No issues have been reported for the HEF4027BP
If you experienced any issues with the symbol or footprint, please report it.
