HEF4047BT,653
Monostable Multivibrator 50 ns 14-SO
Availability: Out of Stock
Package Type: SO14-14
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the HEF4047BT,653 by Nexperia and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

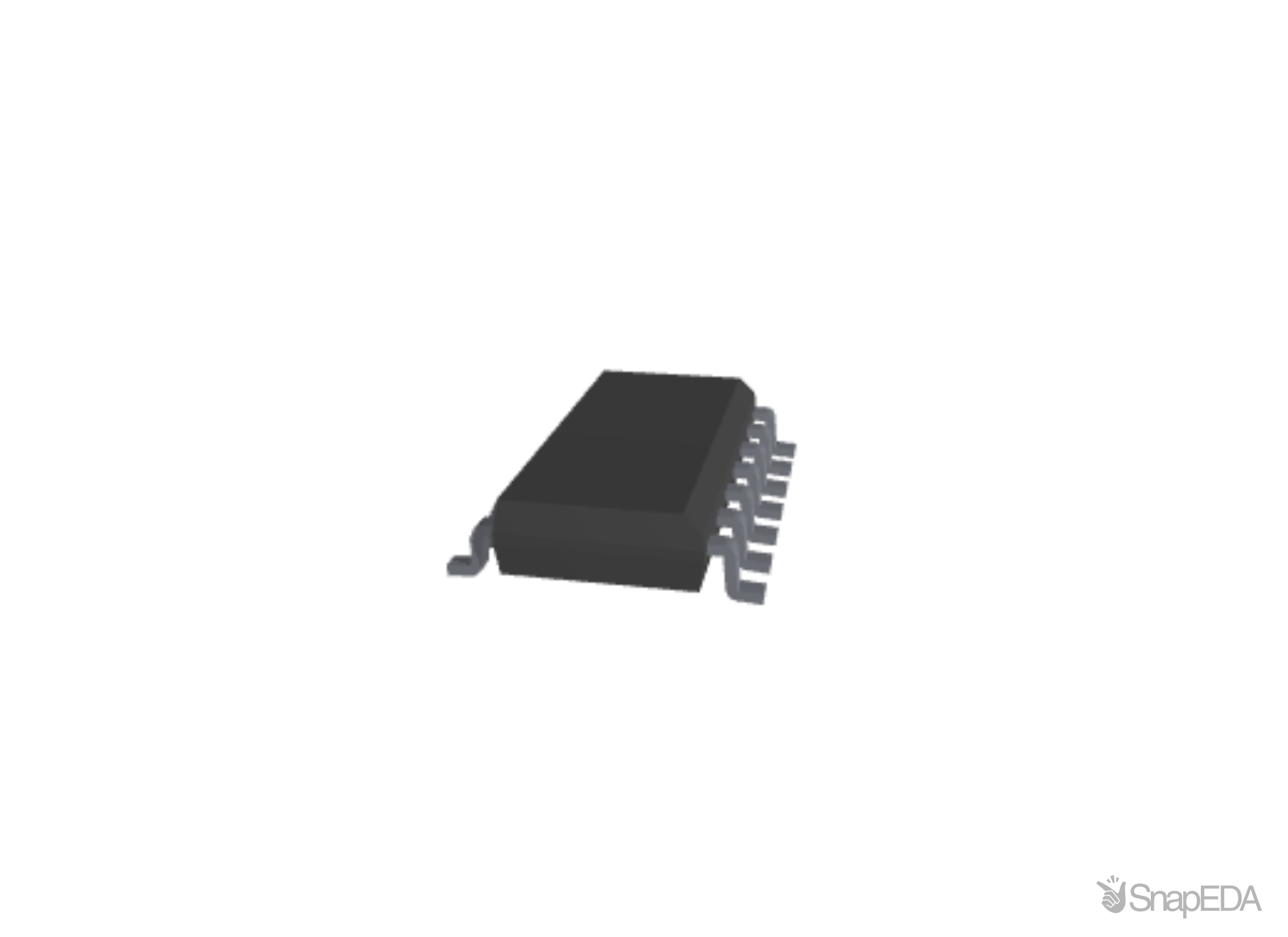

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the HEF4047BT,653
| Part Name | HEF4047BT,653 |
| Manufacturer | Nexperia USA |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Low Level Output Current (A) | 2.4 (mA) |
| Dimensions | 8.75 x 4 x 1.45 (mm) |
| Maximum Operating Supply Voltage (V) | 15 V |
| Maximum Propagation Delay Time Maximum Cl | 320 ns @ 50 pF |
| Minimum Operating Supply Voltage (V) | 3 V |
| Logic Family | HEF |
| Height | 1.45 (mm) |
| Width | 4 (mm) |
| Length | 8.75 (mm) |
| Package Type | SO |
| Number Of Elements Per Chip | 1 |
| Minimum Operating Temperature | -40 °C |
| Minimum Pulse Width | 220 ns |
| Mounting Type | Surface Mount |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 14 |
| Propagation Delay Test Condition | 50 (pF) |
| Maximum High Level Output Current (A) | -2.4 (mA) |
