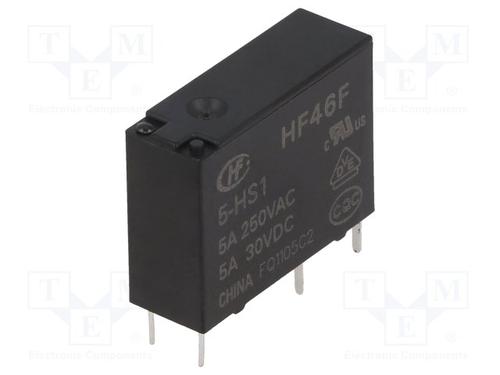

HF46F/005-HS1
Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 5A/250VAC; 5A/30VDC
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the HF46F/005-HS1 by Hongfa and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model

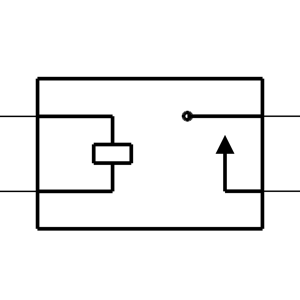

Symbol
No web preview
This Symbol is Available for

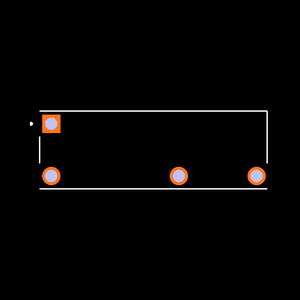

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the HF46F/005-HS1
| Part Name | HF46F/005-HS1 |
| Manufacturer | Hongfa |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Coil Voltage (V) | 5 (V dc) |
| Maximum Switching Power Dc | 150 W |
| Terminal Type | PCB Pin |
| Coil Resistance | 125 (Ω) |
| Life | 5 x 10^6 cycles |
| Coil Power | 200 (mW) |
| Isolation Coil To Contact | 10 (kV) |
| Maximum Switching Current Ac (A) | 5 A |
| Maximum Operating Temperature | +85 (°C) |
| Switching Current (A) | 5 (A) |
| Maximum Switching Voltage Dc (V) | 30 (V dc) |
| Latching | No |
| Contact Configuration | SPST |
| Maximum Switching Current Dc (A) | 5 A |
| Depth | 7 (mm) |
| Maximum Switching Voltage Ac (V) | 277 (V) |
| Maximum Switching Power Ac | 1.385 kVA |
| Number Of Poles | 1 |
| Mounting Type | PCB Mount |
| Series | HF46F |
| Length | 20.5 (mm) |
| Height | 15.3 (mm) |
| Minimum Operating Temperature | -40 (°C) |
| Contact Material | Silver Alloy |
Inventory for the HF46F/005-HS1 by Hongfa from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
5,000
|
815 x $0.43
|
Visit Site |
No issues have been reported for the HF46F/005-HS1
If you experienced any issues with the symbol or footprint, please report it.
