HIH6120-021-001

Name: HIH6120-021-001
Brand: Honeywell

Sensor; Humidity/Temp; 2.3V; +/-4% RH, Non-Filtered; 1.27mm Pitch SIP4 Package | Honeywell HIH6120-021-001

Availability: Out of Stock

Package Type: SIP-4

CAD Models: Symbol, Footprint, 3D Model

Check availability

Check availability

Add to Library See Datasheet PDF Pricing Pinout

What is SnapMagic Search?

SnapMagic Search is a free library of symbols & footprints for the HIH6120-021-001 by Honeywell and for millions of electronic components.

Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.

Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

Symbol and Footprint
3D Model
Alternates

Symbol

No web preview

This Symbol is Available for

This symbol was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

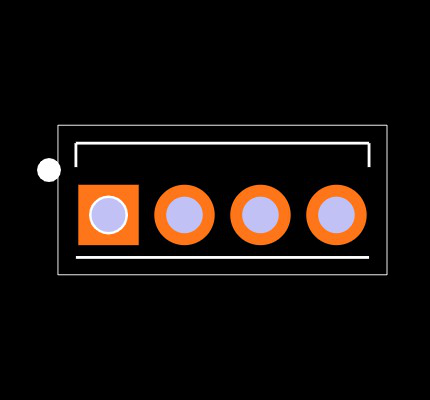

Footprint

No web preview

This Footprint is Available for

This footprint was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

3D Model

Preview not available

Note: If you're using IE or Edge, right-click and choose "Save as" to download.

Relevant part with 2D models

Download Part

Verification

Issues

Specs

Pricing

No issues have been reported for the HIH6120-021-001

If you experienced any issues with the symbol or footprint, please report it.

New Issue

Specifications for the HIH6120-021-001

Part Name	HIH6120-021-001
Manufacturer	Honeywell Sensing
Category	Electronic Components
RoHS	True
Life Cycle Status	End of Life
Formats Available for Symbols and Footprints	Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus
Datasheet	See Datasheet PDF
Accuracy	±4 (%RH)
Dimensions	4.9 x 1.905 x 3.9 (mm)
Maximum Operating Supply Voltage (V)	5.5 V
Operating Temperature Range	-25 to +85 °C
Series	HumidIcon HIH6100
Minimum Operating Supply Voltage (V)	2.3 V
Output Type	Digital
Height	3.9 (mm)
Width	1.905 (mm)
Length	4.9 (mm)
Package Type	SIP
Interface Type	Serial-I2C
Minimum Operating Temperature	-25 °C
Mounting Type	Through Hole
Maximum Operating Temperature	+85 °C
Resolution	14 bit
Pin Count	4
Sensor Function	Temperature & Humidity

We could not find inventory or pricing across major distributors for the HIH6120-021-001 by Honeywell.
