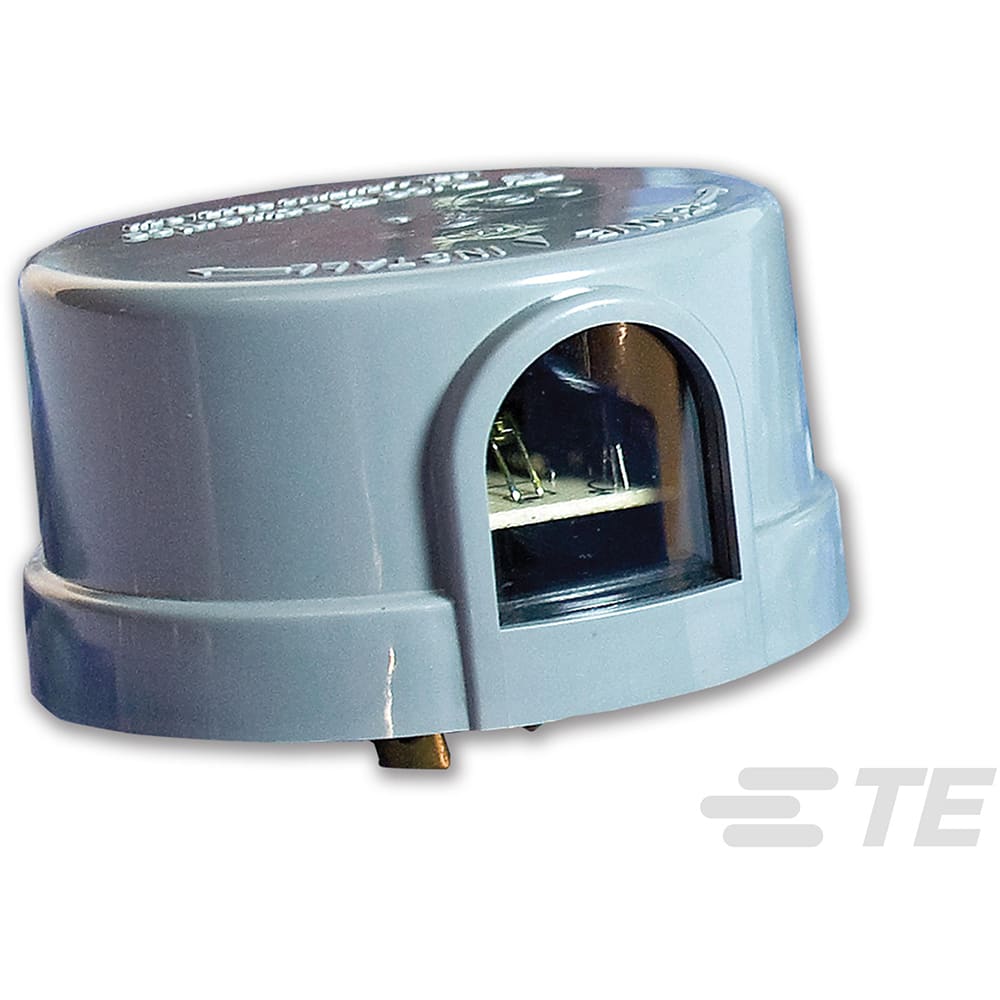

HK379T-000
ALR-7060-VPS | TE Connectivity HK379T-000
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the HK379T-000 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the HK379T-000
| Part Name | HK379T-000 |
| Manufacturer | TE Connectivity |
| Category | Lighting & Indication |
| Surge Protection | 20mm, 15kA, 480J MOV |
| Dimensions | 45 x 83 |
| Housing Material | High Impact Polypropylene with UV-Stabilized Polycarbonate Window |
| Application | Dusk-to-dawn lighting control compatible with all solid state ballasts. |
| Fail Mode | On |
| LED Compatible | Yes |
| OFF/ON Ratio | 1.5:1 |
| Product Family | 7000 Series |
| Operating Temperature Range | -40 – 65 |
| TE Internal Number | HK379T-000 |
| UL Rating | No |
| Load Rating (Ballast) | 1800 |
| Product Type | Utility |
| Load Rating (Tungsten) | 1000 |
| Product Use | Utility-grade photocontrol provides a low cost, reliable switching solution for demanding roadway & area lighting applications |
| Turn ON Time Delay | Instant On |
| Other Colors Available | Yes |
| Voltage Rating (V) | 105 – 130 |
| CSA Certified | No |
| Packaging Method | Individually Bagged Units in Master Carton |
| Product Availability | AMERICAS |
| Standards | ANSI C136.10 |
| Light Sensor | Unfiltered Silicon Phototransistor |
| Turn ON Light Level | 1.5 (Optional 1 – 3) |
| RoHS | True |
| Warranty | 6 Years |
| Color | Gray |
| Mounting Style | Locking |
| Frequency | 50/60 |
| Relay Rating | 30A General Purpose |
| Technology | Electronic |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the HK379T-000 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
980
|
|
Visit Site | |
| Mouser |
|
|
Visit Site | |
| Onlinecomponents |
4
|
|
Visit Site | |
| RS Americas |
990
|
|
Visit Site |
No issues have been reported for the HK379T-000
