HLMP-1540
LED; Green; 45 mcd (Typ.) @ 20 mA; 0.125 in.; T-1-3/4; 25 mA (Avg.); 45 d
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the HLMP-1540 by Broadcom and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

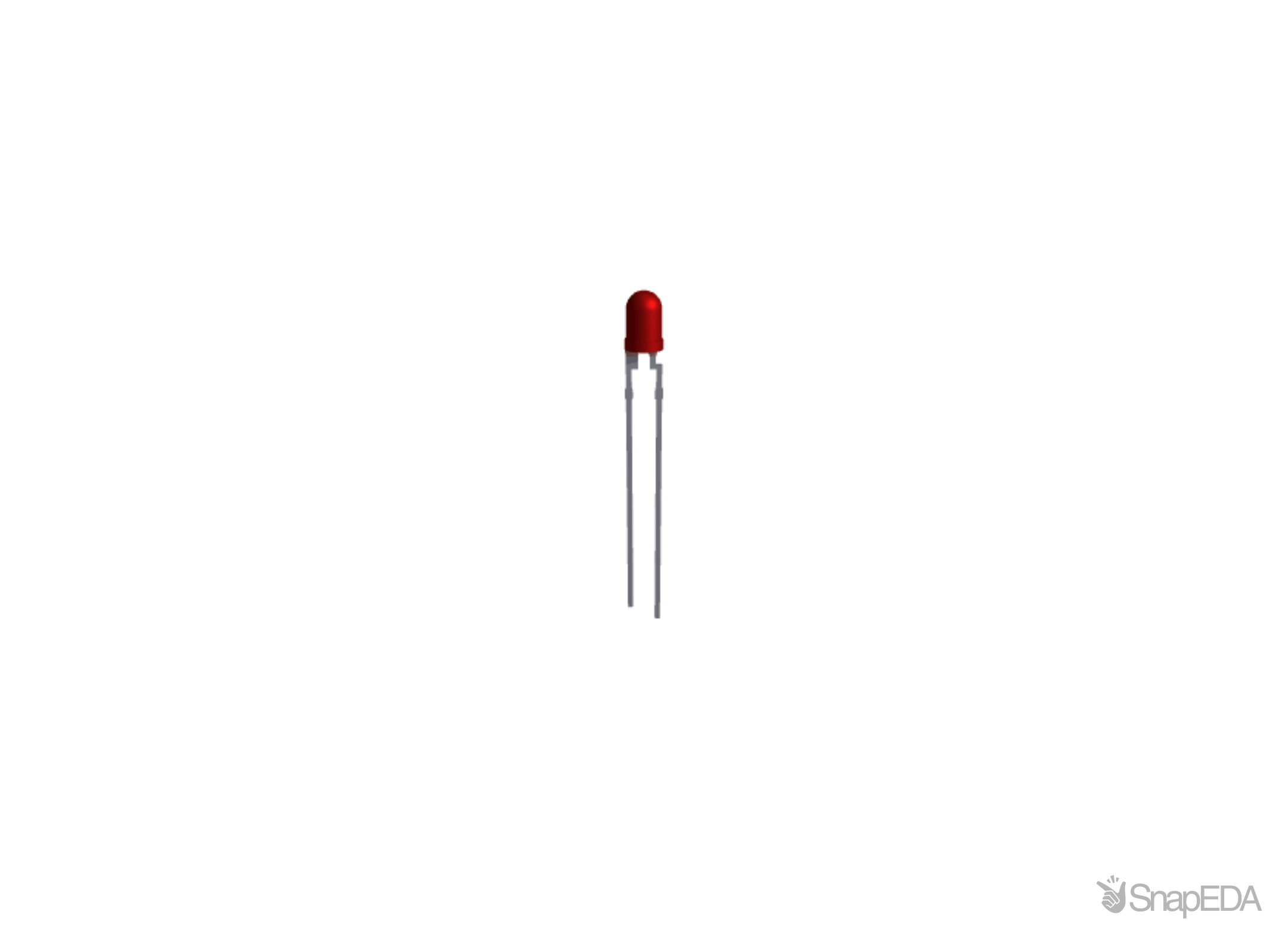

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the HLMP-1540
| Part Name | HLMP-1540 |
| Manufacturer | Broadcom |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Lens Colour | Clear |
| Dimensions | 3 x 4.7 (mm) |
| Mounting Type | Through Hole |
| Viewing Angle | 45 ° |
| Led Colour S | Green |
| Forward Voltage (V) | 2.2 V |
| Luminous Intensity | 45 mcd |
| Dominant Wavelength | 569 nm |
| Number Of Leds | 1 |
| Lens Shape | Round |
| Package Type | 3mm (T-1) |
| Number Of Pins | 2 |
