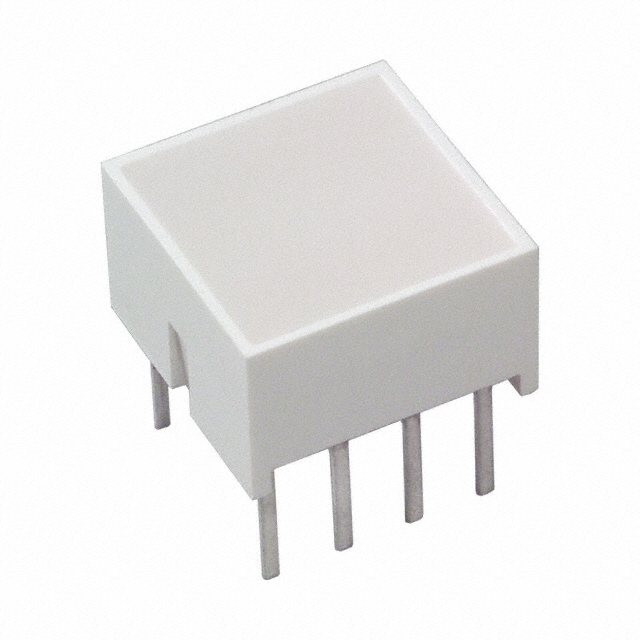

HLMP-2655
LED Circuit Board Indicator LED Circuit Board Indicator Bar - Single, DIP Red 2V 90mA Square with Flat Top 8.89mm Through Hole
Availability: In Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the HLMP-2655 by Broadcom and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

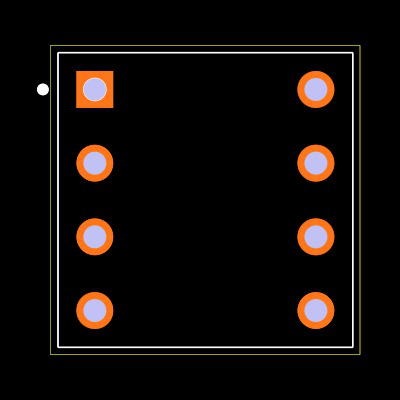

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the HLMP-2655
| Part Name | HLMP-2655 |
| Manufacturer | Broadcom |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Display Type | Light Bar |
| Colour Of Face | White |
| Mounting Type | Through Hole |
| Forward Current (A) | 20 (mA) |
| Operating Temperature Range | -40 → +85 (°C) |
| Forward Voltage (V) | 2 V |
| External Depth | 6.2 (mm) |
| Led Colour S | Red |
| External Dimensions | 10.2 x 10.2 x 6.2 (mm) |
| Dominant Wavelength | 626 nm |
| Luminous Intensity | 45 mcd |
| Minimum Operating Temperature | -40 (°C) |
| Number Of Segments | 1 |
| External Height | 10.2 (mm) |
| External Width | 10.2 (mm) |
| Maximum Operating Temperature | +85 (°C) |
