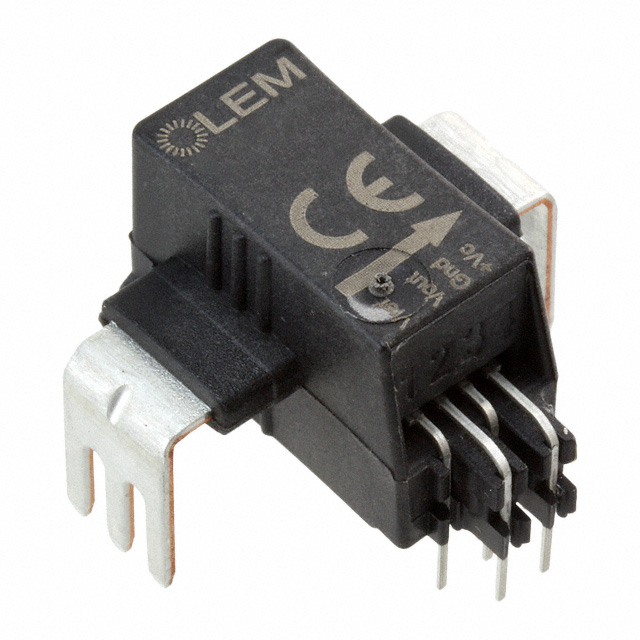

HLSR 32-P
Current Sensor 32A 1 Channel Hall Effect, Open Loop Bidirectional Module
Availability: Out of Stock
Package Type: MODULE
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the HLSR 32-P by LEM and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the HLSR 32-P
| Part Name | HLSR 32-P |
| Manufacturer | LEM USA |
| RoHS | True |
| Life Cycle Status | New Product |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Series | HLSR |
| Maximum Temperature | +105 (°C) |
| Output Current (A) | 32 A |
| Mounting Type | PCB Mount |
| Minimum Temperature | -40 (°C) |
| Overall Height | 12 (mm) |
| Current Ratio (A) | 80:1 |
| Supply Voltage (V) | 4.5 → 5.5 V |
| Sensor Technology | Open Loop |
| Overall Depth | 44.5 (mm) |
| Overall Width | 17.2 (mm) |
| Input Current (A) | 80 (A) |
No issues have been reported for the HLSR 32-P
If you experienced any issues with this part, please report it.
