HMC1023LP5E
72 MHz Dual Programmable Low Pass Filter
Availability: Out of Stock
Package Type: QFN -32
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the HMC1023LP5E by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Design & more
- Alternates
Symbol
No web preview
This Symbol is Available for

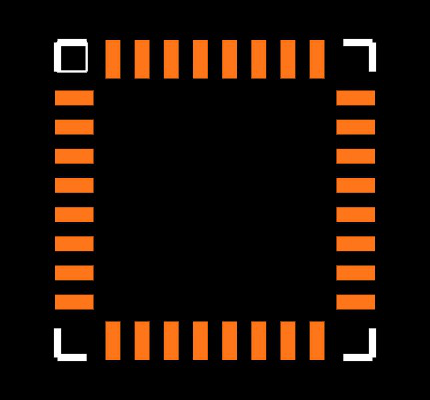

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the HMC1023LP5E
| Part Name | HMC1023LP5E |
| Manufacturer | Analog Devices |
| Product Category | Baseband Programmable VGA-Filters |
| Package | LFCSP:LEADFRM CHIP SCALE |
| RoHS value | Yes |
| Part Launch Date | 11/1/2013 4:00:00 AM |
| Temperature Range | -40 to 85C |
| Product Link | https://www.analog.com/en/products/hmc1023.html?ADICID=SYND_WW_P682800_PF-snapeda |
| Pins | 32 |
| Product Lifecycle | Last Time Buy |
| RoHS | Yes |
| Life Cycle Status | End of Life |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | |
| Dimensions | 5.1 x 5.1 x 1 (mm) |
| Mounting Type | Surface Mount |
| Operating Temperature Range | -40 → +85 °C |
| Power Supply Type | Single |
| Length | 5.1 (mm) |
| Height | 1 (mm) |
| Width | 5.1 (mm) |
| Typical Single Supply Voltage (V) | 5 V |
| Package Type | QFN |
| Architecture | Switched Discrete Filter |
| Minimum Operating Temperature | -40 °C |
| Series | Hittite |
| Filter Type | Low Pass Filter |
| Maximum Order | 6th |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 32 |
| Number Of Circuits | 2 |
