HR30-6R-6SD(71)
SnapVerified
Conn Miniature Waterproof Plastic F 6 POS Solder ST Thru-Hole 6 Terminal 1 Port
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the HR30-6R-6SD(71) by Hirose and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

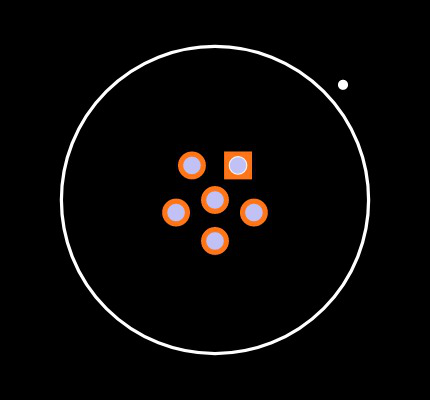

Footprint
No web preview
This Footprint is Available for

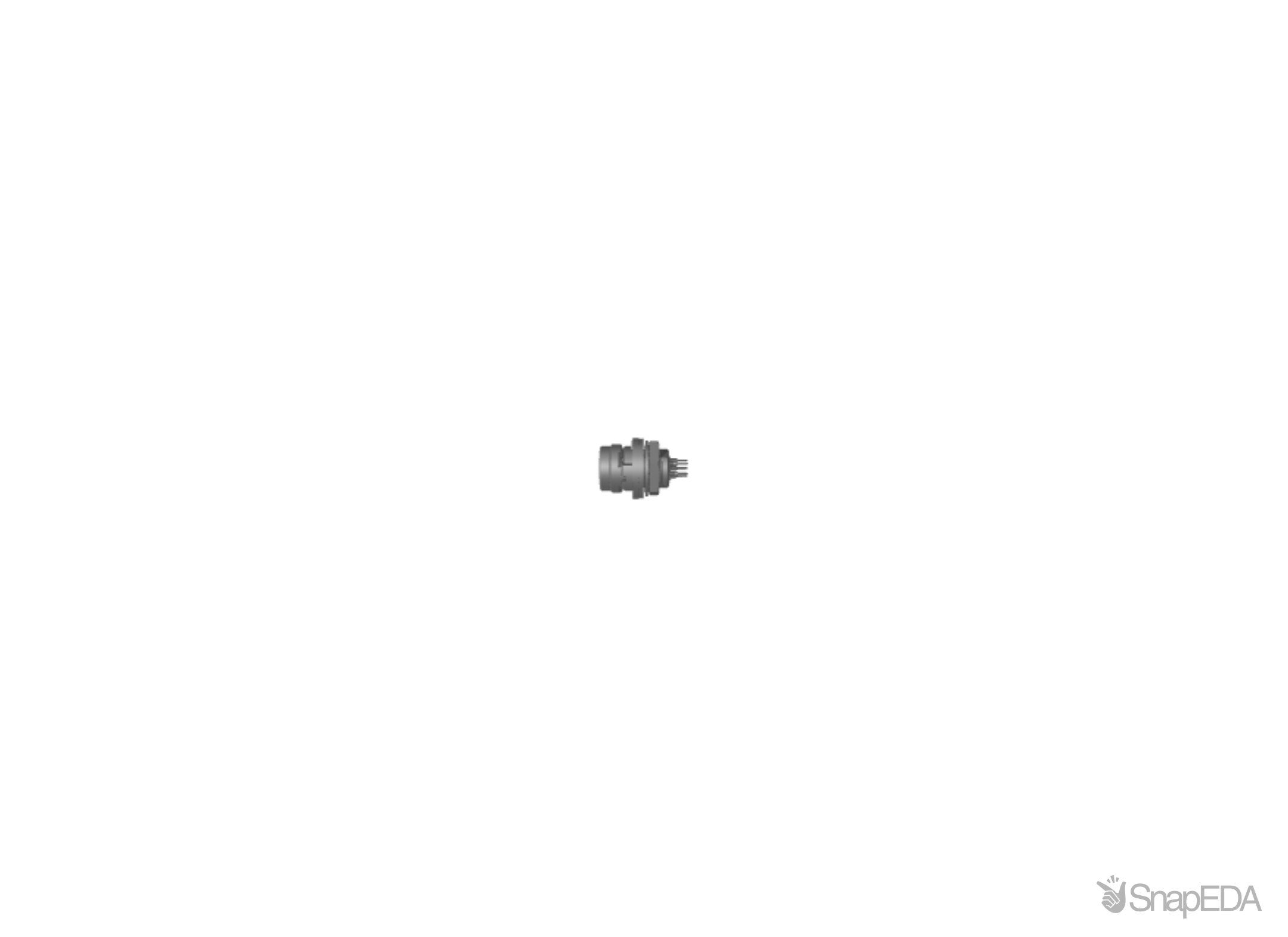

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the HR30-6R-6SD(71)
| Part Name | HR30-6R-6SD(71) |
| Manufacturer | Hirose |
| Type | Receptacle |
| RoHS | True |
| Product Link | https://www.hirose.com/product/p/CL0130-1021-6-71?lang=en |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 2.0 (A) |
| Minimum Operating Temperature | -25 (°C) |
| Mounting Type | Panel Mount |
| Ip Rating | IP67, IP68 |
| Series | HR30 |
| Body Orientation | Straight |
| Voltage Rating (V) | 100.0 V ac |
| Contact Gender | Male |
| Contact Plating | Gold |
| Termination Method | Solder |
| Number Of Contacts | 6 |
| Maximum Operating Temperature | +85 (°C) |
| Connector Size | Miniature |
| Contact Material | Brass, Phosphor Bronze |
Inventory for the HR30-6R-6SD(71) by Hirose from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
514
|
|
Visit Site | |
|
★ Featured
|
1,137
|
46 x $6.55
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Heilind Americas |
|
|
Visit Site | |
| Interstate Connecting Components |
|
|
Visit Site | |
| Newark |
50
|
|
Visit Site | |
| Sager |
|
|
Visit Site |
No issues have been reported for the HR30-6R-6SD(71)
If you experienced any issues with the symbol or footprint, please report it.
