HS2J-T
75ns, 2A, 600V, High Efficient Recovery Rectifier
Availability: Out of Stock
Package Type: SMD-2
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the HS2J-T by taiwan and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

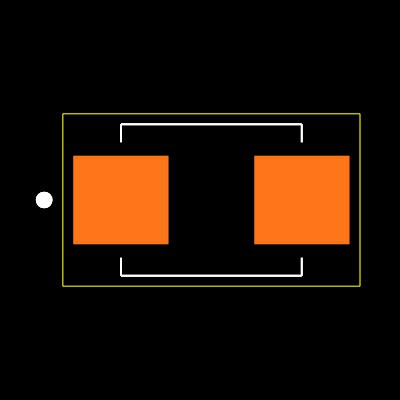

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the HS2J-T
| Part Name | HS2J-T |
| Manufacturer | Taiwan Semiconductor |
| Maximum DC Reverse Current (A) | 5e-06 |
| Family | High Efficient |
| Reverse Recovery Time | 7.5e-08 |
| Case Package | DO-214AA (SMB) |
| Peak Forward Surge Current (A) | 50.0 |
| Maximum Operating Junction Temperature | 150.0 |
| Maximum Instantaneous Forward Voltage (V) | 1.7 |
| AEC-Q compliant | {u'is_url': False, u'value': False} |
| Maximum Average Forward Rectified Current (A) | 2.0 |
| RoHS | True |
| Maximum Repetitive Peak Reverse Voltage (V) | 600.0 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
