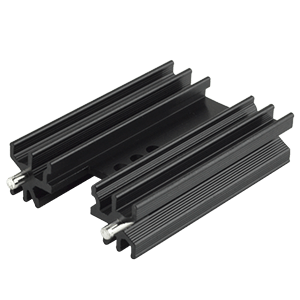

HSE-B20630-040H by Same Sky

HSE-B20630-040H

Extruded Heat Sink, TO-220, 2.6 mm Vertical Solder Pin

Availability: Out of Stock

CAD Models: Symbol, Footprint, 3D Model

Buy Now from Arrow

0 in stock at $ USD

Check availability y
Buy Now from RS Components
Check availability y
Buy Now from Win Source
Check availability y
Buy Now from Mouser

Starting from:

Check availability y
Add to Library See Datasheet PDF Pricing Pinout

Related Parts

Check out these parts with similar attributes as the HSE-B20630-040H and other ones you might like


What is SnapMagic Search?

SnapMagic Search is a free library of symbols & footprints for the HSE-B20630-040H by Same Sky and for millions of electronic components.

Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.

Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

  • SnapMagic Search Home
  • See Example Part
  • About Us
  • Frequently Asked Questions
  • Symbol & Footprint Import Guide
  • Symbol and Footprint
  • 3D Model
  • Alternates

Symbol

no preview available

No web preview

This Symbol is Available for

Report
This symbol was not created by SnapMagic Search, please be cautious when using it in your design

Download Symbol and Footprint

Downloaded times

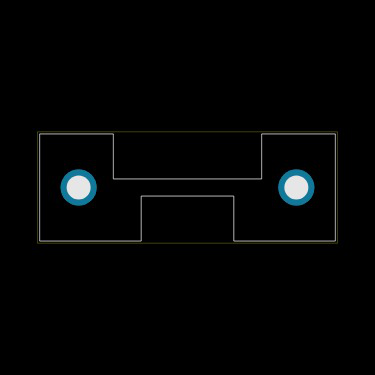

Footprint

no preview available

No web preview

This Footprint is Available for

Report
This footprint was not created by SnapMagic Search, please be cautious when using it in your design

Download Footprint

Downloaded times

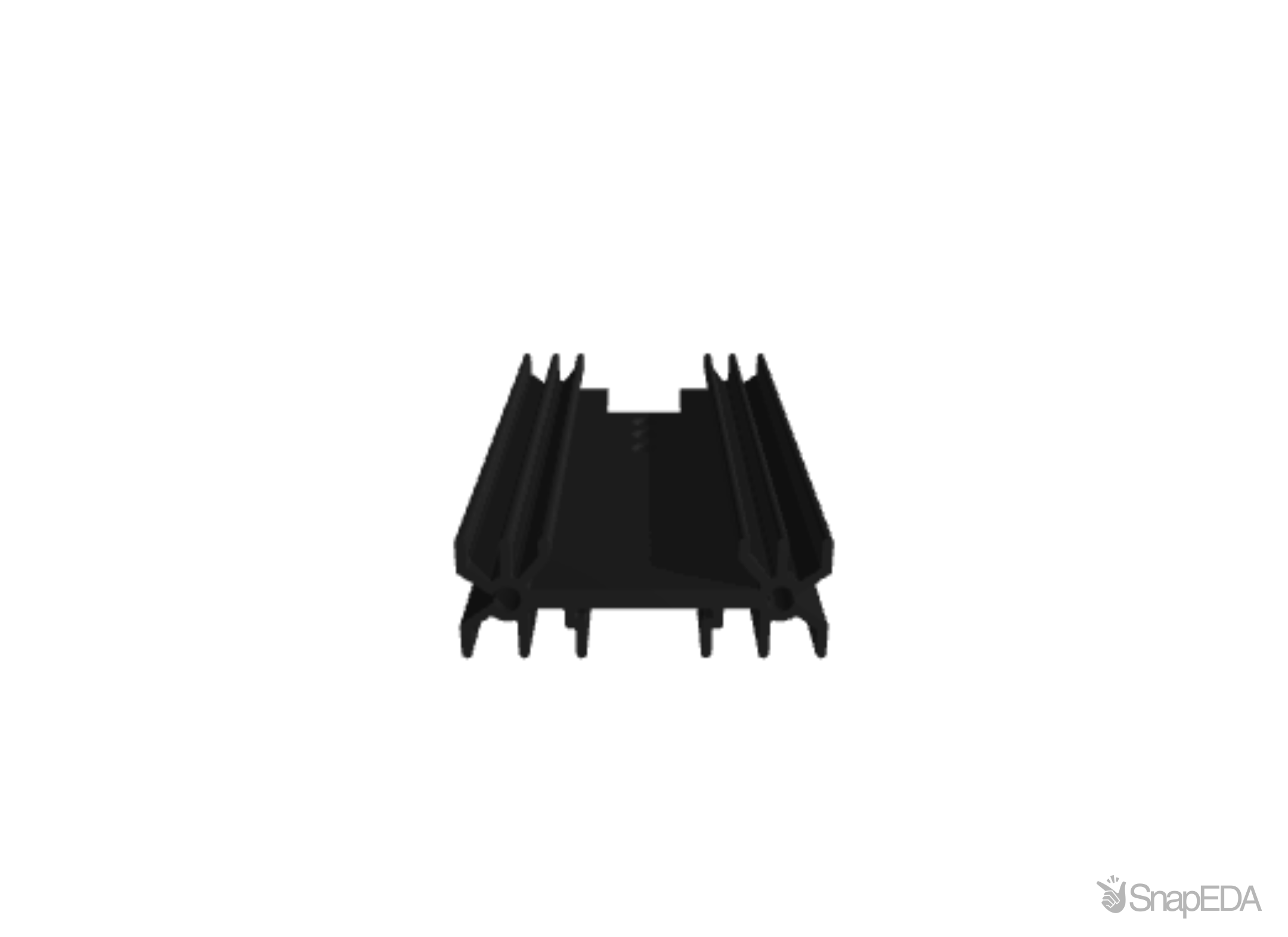

3D Model

Preview not available


Download 3D Model
Download 3D Model

Note: If you're using IE or Edge, right-click and choose "Save as" to download.

Get this 3D Model in 1 business day!

Don't Worry! We'll create it for you.

Request 3D Model

SMH-10502-SM-D
In Stock
We've found a similar part with
3D models

SMH-10502-SM-D by Samtec

Conn Socket Strip SKT 10 POS 2.54mm Solder RA SMD Tube

Download Part


Get this part from Samtec in just 3 days!

snapeda-3dmodel-guy

We found a 3D Model for this part on SameSkyDevices.com

Download Now

More

No alternative parts found for this component.
Relevant part with 2D models in stock

Download Part
HSE-B20630-040H Symbol HSE-B20630-040H Footprint HSE-B20630-040H 3D Model
Verification Issues Specs Pricing

No issues have been reported for the HSE-B20630-040H

If you experienced any issues with the symbol or footprint, please report it.

New Issue

Specifications for the HSE-B20630-040H


Part Name HSE-B20630-040H
Manufacturer Same Sky
Mounting Style PCB
Power Dissipation @ 75°C ΔT, nat conv (W) 9.6
Material Finish Black Anodized
Package Cooled TO-220
Thermal Resistance @ 1 W, 200 LFM (°C/W) 3.73
RoHS and REACH Link https://www.cuidevices.com/product/resource/material-compliance/hse-b20630-040h
Material AL6063-T5
Thermal Resistance @ 75°C ΔT, nat conv (°C/W) 7.81
Solder Pin Orientation Vertical
Thermal Resistance @ 1 W, nat conv (°C/W) 11.54
Solder Pin Length (mm) 2.6
Length (mm) 63
Width (mm) 34.5
Dimensions LxWxH (mm) 63 x 34.5 x 12.5
Height (mm) 12.5
Heat Sink Type Board Level, Extruded
Thermal Resistance @ 1 W, 400 LFM (°C/W) 2.31
RoHS True
Dimensions LxWxH (in) 2.48 x 1.36 x 0.49
Formats Available for
Symbols and Footprints		 Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus
Datasheet See Datasheet PDF

Inventory for the HSE-B20630-040H by Same Sky from major distributors.

Supplier Quantity Price Purchase
★ Featured
Same Sky
1,800 x $1.39
Visit Site
