HSMC-C170

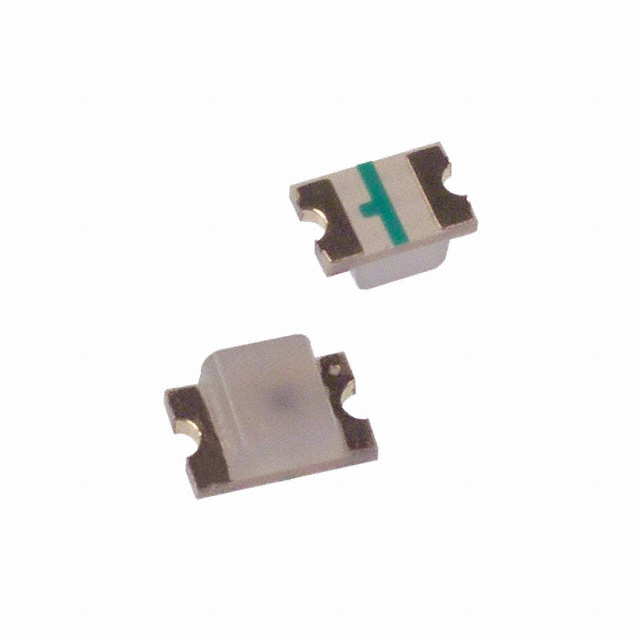

Red 626nm LED Indication - Discrete 1.9V 0805 (2012 Metric)
Availability: In Stock
Package Type: 0805
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the HSMC-C170 by Broadcom and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

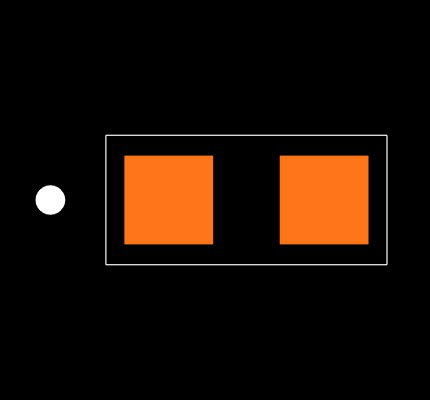

Footprint
No web preview
This Footprint is Available for

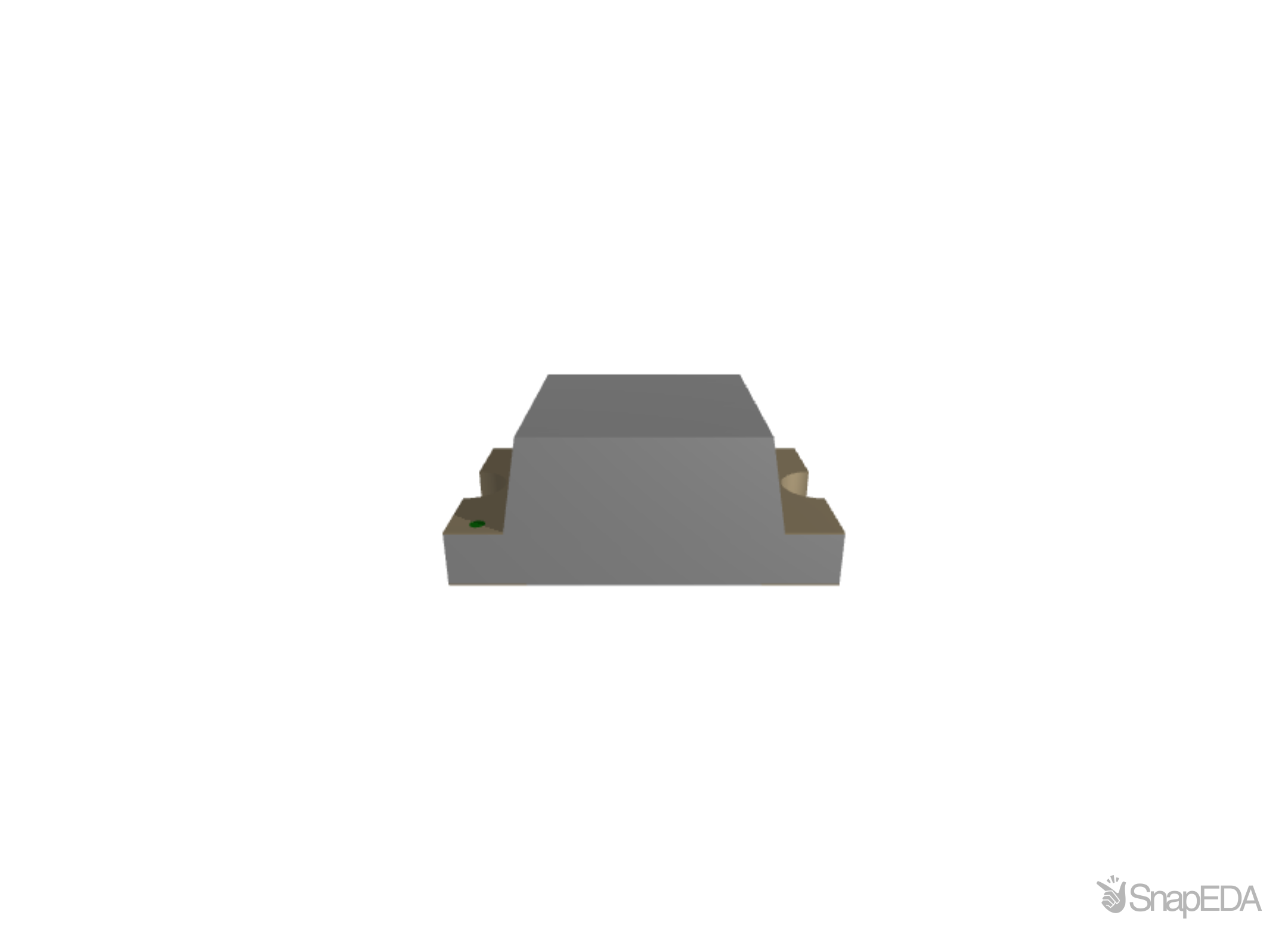

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the HSMC-C170
| Part Name | HSMC-C170 |
| Manufacturer | Broadcom Limited |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Lens Colour | Clear |
| Dimensions | 2 x 1.25 x 0.8 (mm) |
| Mounting Type | Surface Mount |
| Dominant Wavelength | 626 nm |
| Viewing Angle | 170 ° |
| Forward Voltage (V) | 1.9 V |
| Led Colour S | Red |
| Luminous Intensity | 90 mcd |
| Package Type | 2012 (0805) |
| Number Of Leds | 1 |
| Lens Shape | Rectangle |
| Number Of Pins | 2 |
