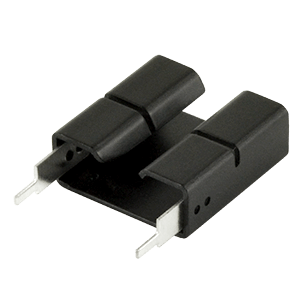

HSS-B20-085H
SnapVerified
Stamped Heat Sink, TO-220, Aluminum, PCB, 8.5 mm Horizontal Solder Pin
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the HSS-B20-085H by Same Sky and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

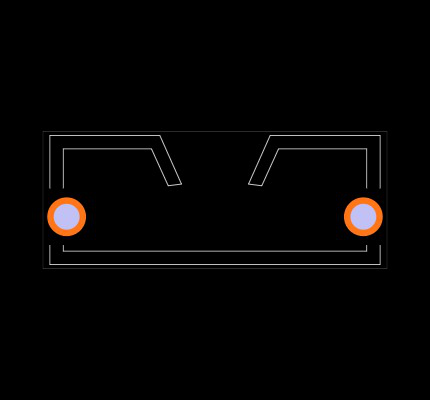

Footprint
No web preview
This Footprint is Available for

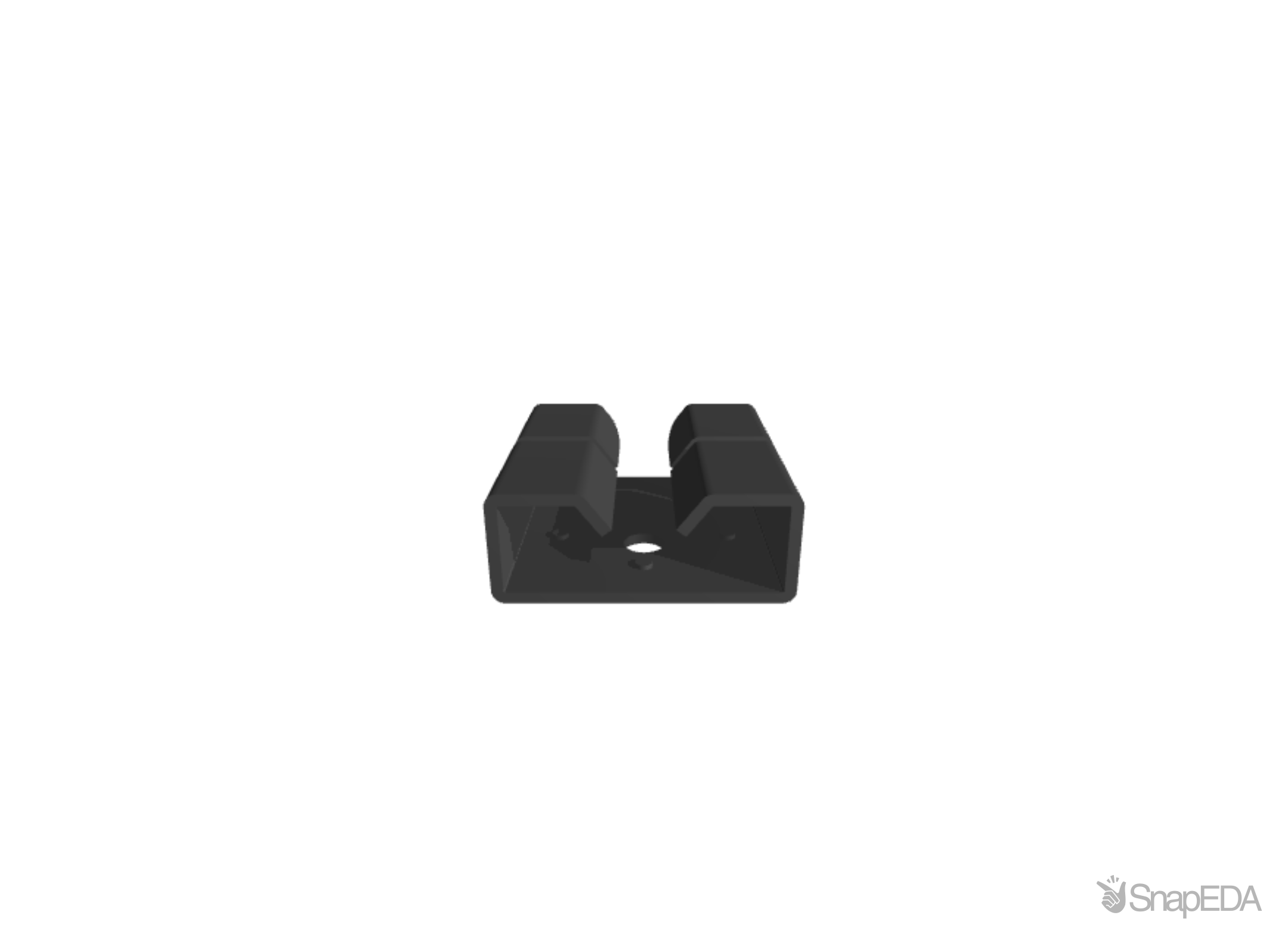

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the HSS-B20-085H
| Part Name | HSS-B20-085H |
| Manufacturer | Same Sky |
| Mounting Style | PCB |
| Power Dissipation @ 75°C ΔT, nat conv (W) | 3.4 |
| Material Finish | Black Anodized |
| Package Cooled | TO-220 |
| Thermal Resistance @ 1 W, 200 LFM (°C/W) | 7.46 |
| RoHS and REACH Link | https://www.cuidevices.com/product/resource/material-compliance/hss-b20-085h |
| Material | AL5052 |
| Thermal Resistance @ 75°C ΔT, nat conv (°C/W) | 22.06 |
| Solder Pin Orientation | Horizontal |
| Thermal Resistance @ 1 W, nat conv (°C/W) | 26.05 |
| Solder Pin Length (mm) | 8.5 |
| Length (mm) | 20 |
| Width (mm) | 19.7 |
| Dimensions LxWxH (mm) | 20 x 19.7 x 7.7 |
| Height (mm) | 7.7 |
| Heat Sink Type | Board Level, Stamped |
| Thermal Resistance @ 1 W, 400 LFM (°C/W) | 5.2 |
| RoHS | True |
| Dimensions LxWxH (in) | 0.79 x 0.78 x 0.3 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the HSS-B20-085H by Same Sky from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
5,000 x $0.82
|
Visit Site |
No issues have been reported for the HSS-B20-085H
