HSS-B20-NP-12
Stamped Heat Sink, TO-220, Aluminum, PCB, No Pin
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the HSS-B20-NP-12 by Same Sky and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

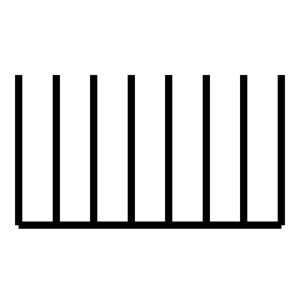

Symbol
No web preview
This Symbol is Available for

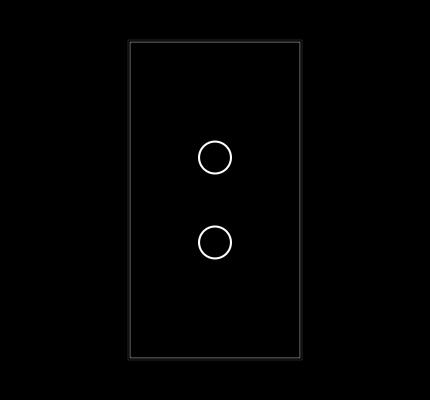

Footprint
No web preview
This Footprint is Available for

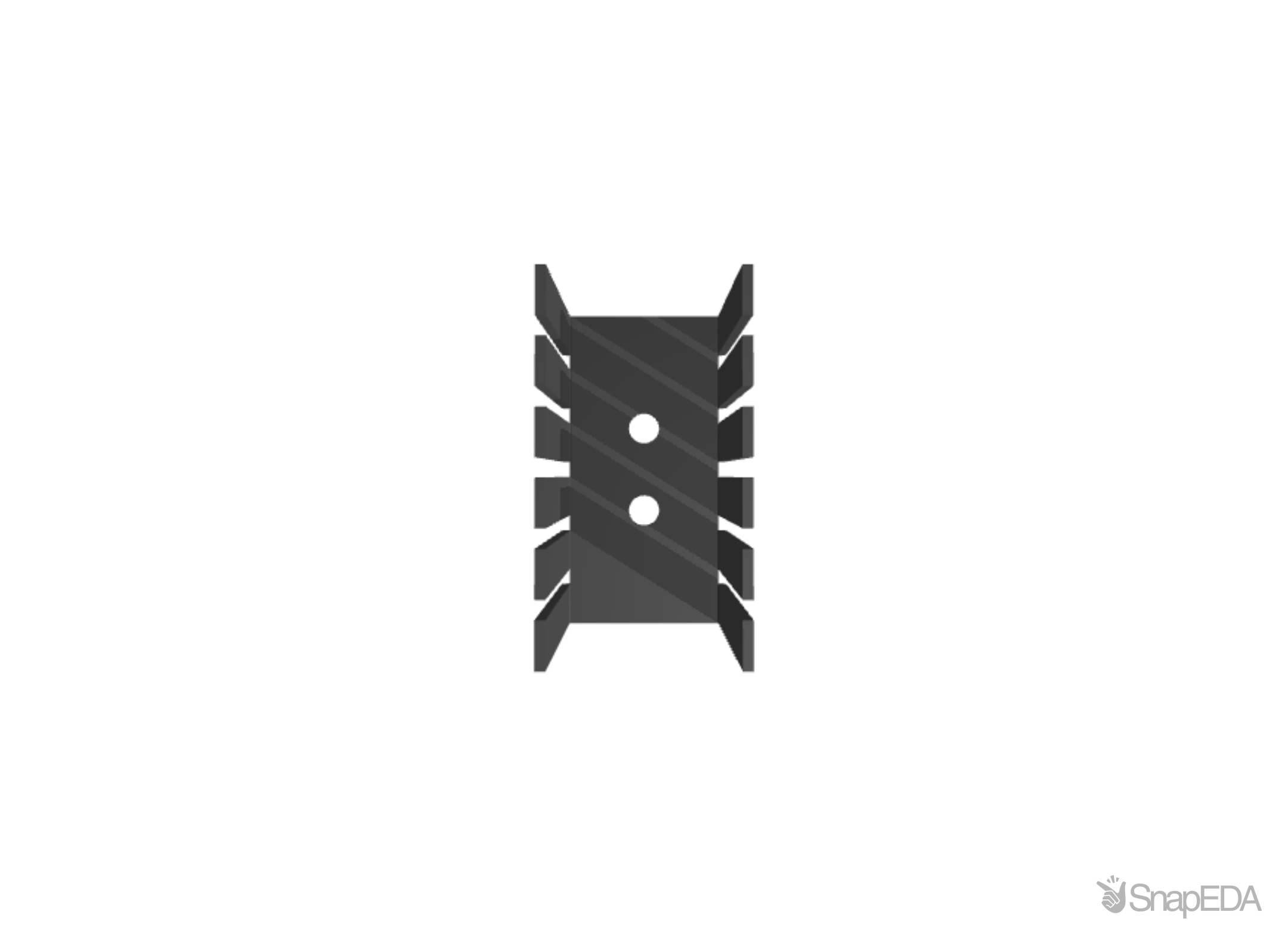

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the HSS-B20-NP-12
| Part Name | HSS-B20-NP-12 |
| Manufacturer | Same Sky |
| Mounting Style | PCB |
| Power Dissipation @ 75°C ΔT, nat conv (W) | 6.8 |
| Material Finish | Black Anodized |
| Package Cooled | TO-220 |
| Thermal Resistance @ 1 W, 200 LFM (°C/W) | 3.47 |
| RoHS and REACH Link | https://www.cuidevices.com/product/resource/material-compliance/hss-b20-np-12 |
| Material | AL1100 |
| Thermal Resistance @ 75°C ΔT, nat conv (°C/W) | 11.03 |
| Solder Pin Orientation | No Pin |
| Thermal Resistance @ 1 W, nat conv (°C/W) | 14.33 |
| Length (mm) | 36.83 |
| Width (mm) | 17.8 |
| Dimensions LxWxH (mm) | 36.83 x 17.8 x 21.59 |
| Height (mm) | 21.59 |
| Heat Sink Type | Board Level, Stamped |
| Thermal Resistance @ 1 W, 400 LFM (°C/W) | 2.42 |
| RoHS | True |
| Dimensions LxWxH (in) | 1.45 x 0.7 x 0.85 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| For Use With | Temperature Controller |
| Series | HSS-B20 |
| Accessory Type | Heat Sink |
Inventory for the HSS-B20-NP-12 by Same Sky from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
1,503
|
|
Visit Site |
No issues have been reported for the HSS-B20-NP-12
