HV9910CLG-G

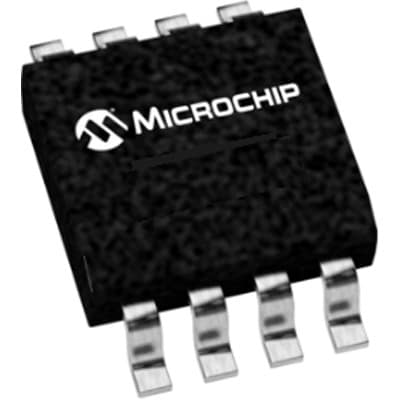

8 SOIC 3.90mm(.150in) T/RUNIVERSAL HIGHBRIGHTNESS LED DRIVER | Microchip Technology Inc. HV9910CLG-G
Availability: In Stock
Package Type: SO-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the HV9910CLG-G by Microchip Technology and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

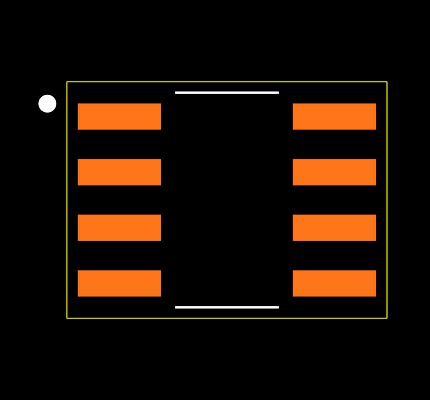

Footprint
No web preview
This Footprint is Available for

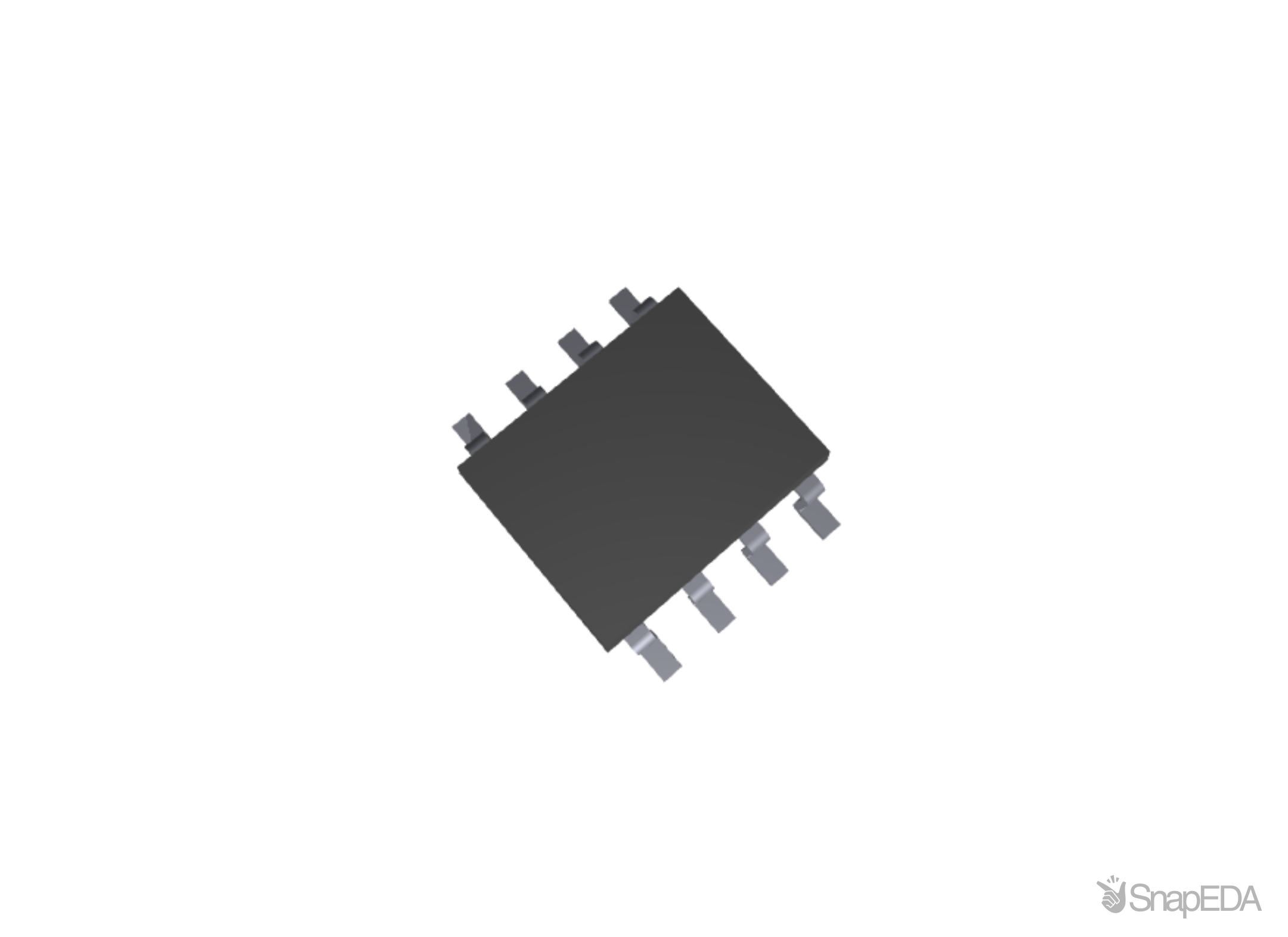

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the HV9910CLG-G
| Part Name | HV9910CLG-G |
| Manufacturer | Microchip |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimming Operation | 0 to 0.25 V dc, PWM |
| Ac Or Dc Input Voltage (V) | dc |
| Application | Architectural Lighting, Constant Current Source, Decorative Lighting, Display Lighting, LED Display Backlight Control, LED Driver |
| Maximum Output Power | 650 (mW) |
| Input Voltage (V) | 15 → 450 V dc |
| Package Type | SOIC |
| Number Of Pins | 8 |
