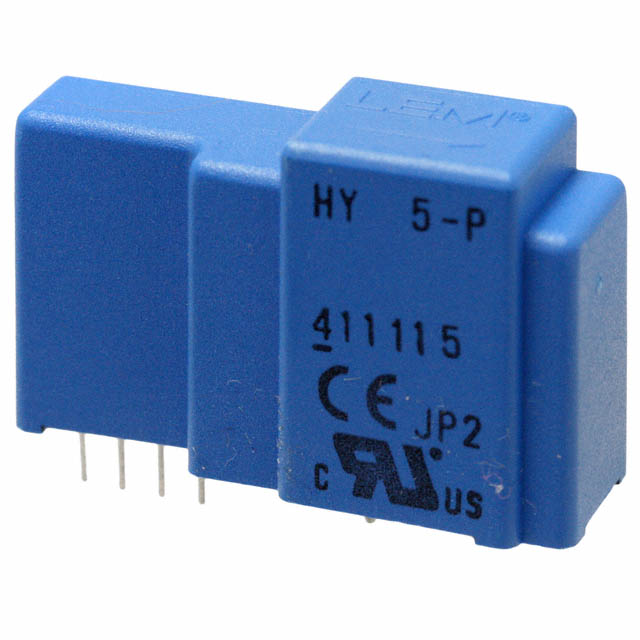

HY 5-P
CURRENT TRANSDUCER, 5A; AC Current Measuring Ranges:DC, AC, Pulsed, Mixed; DC Current Measuring Ranges:DC, AC, Pulsed, Mixed; Current Consumption:10mA; Max Frequency:50kHz; Current Rating:5A; External Depth:12mm; External Length / Height:21mm; Flammability Rating:UL 94-V0; Min Frequency:0Hz; Percentage Accuracy:1%; Range, Measuring:0 - 15A; Series:HY; Supply Voltage:15V; Temp, Op. Max:80°C; Temp, Op. Min:-10°C; Transducer Function:Electronic Measurement of Currents; Voltage, Output:4V; Width, External:35mm
Availability: Out of Stock
Package Type: MODULE
