I6A24014A033V-001-R
DC-DC Converters
Availability: Out of Stock
Package Type: DIP-11
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the I6A24014A033V-001-R by TDK-Lambda and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

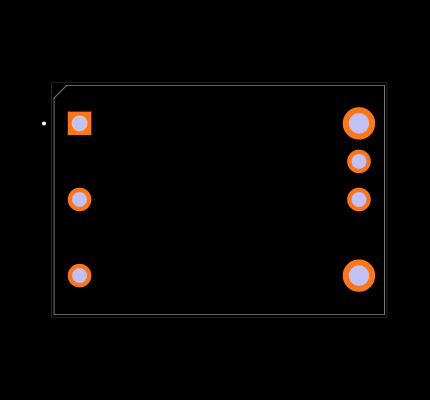

Footprint
No web preview
This Footprint is Available for

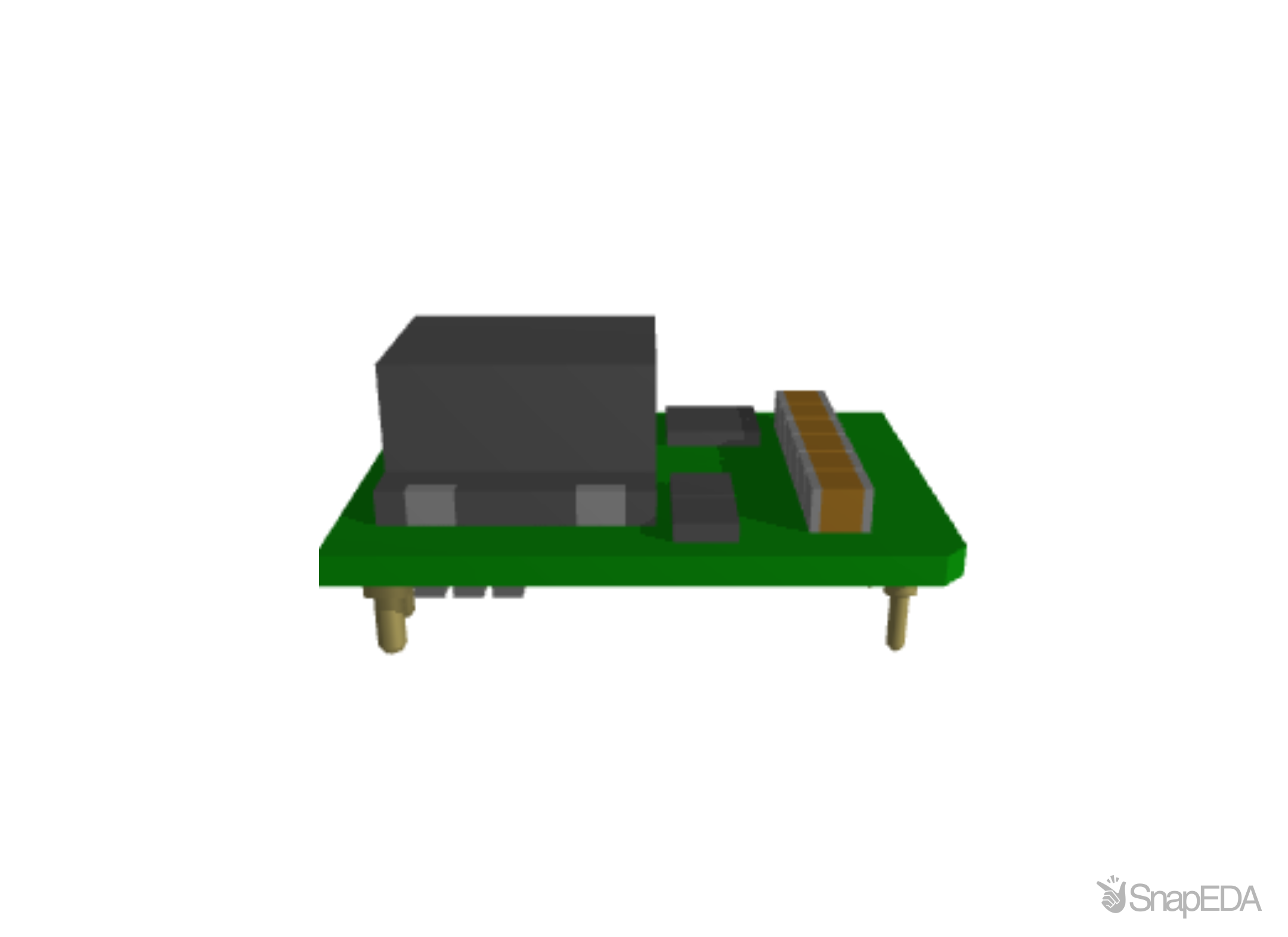

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the I6A24014A033V-001-R
| Part Name | I6A24014A033V-001-R |
| Manufacturer | TDK-Lambda Americas |
| Sample Link | https://product.tdk.com/en/search/power/switching-power/dc-dc-converter/info?part_no=i6A24014A033V-001-R |
| Product Link | https://product.tdk.com/en/search/power/switching-power/dc-dc-converter/info?part_no=i6A24014A033V-001-R |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | |
| Depth | 12.7 (mm) |
| Number Of Outputs | 1 |
| Output Voltage Adjustment Range (V) | -4 → +4 (%) |
| Maximum Temperature | +125 (°C) |
| Output Current (A) | 14 (A) |
| Mounting Type | PCB Mount |
| Width | 22.9 (mm) |
| Series | i6A |
| Input Voltage Range (V) | 9 → 40 V dc |
| Distrelec Product Id | 30151161 |
| Isolated | No |
| Efficiency | 98 (%) |
| Length | 33 (mm) |
| Load Regulation | 0.01 |
| Minimum Temperature | -40 (°C) |
| Input Voltage Nominal (V) | 9 V dc |
| Power Rating | 250 (W) |
| Output Voltage (V) | 3.3 → 24 (V dc) |
No issues have been reported for the I6A24014A033V-001-R
If you experienced any issues with the symbol or footprint, please report it.
