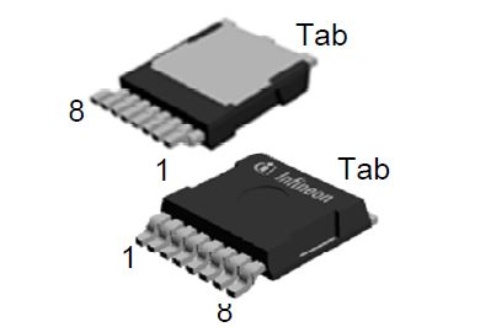

IAUS165N08S5N029ATMA1
N-Channel 80 V 165A (Tc) 167W (Tc) Surface Mount PG-HSOG-8-1
Availability: In Stock
Package Type: POWERSMD-8
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the IAUS165N08S5N029ATMA1 by Infineon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

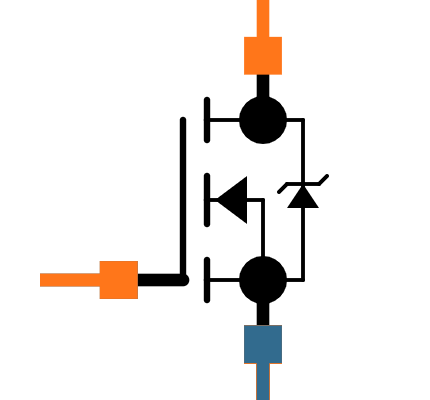

Symbol
No web preview
This Symbol is Available for

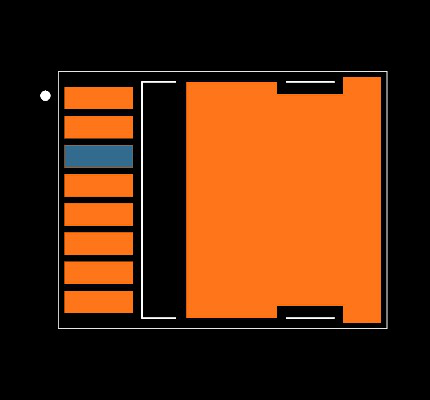

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the IAUS165N08S5N029ATMA1
| Part Name | IAUS165N08S5N029ATMA1 |
| Manufacturer | Infineon Technologies |
| RoHS | True |
| Product Link | https://www.infineon.com/cms/en/product/power/mosfet/20v-800v-automotive-mosfet/75v-100v-n-channel-automotive-mosfet/iaus165n08s5n029/ |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Drain Source Voltage (V) | 80 V |
| Channel Mode | Enhancement |
| Maximum Continuous Drain Current (A) | 165 A |
| Series | OptiMOSâ„¢ 5 |
| Channel Type | N |
| Maximum Gate Threshold Voltage (V) | 3.8 (V) |
| Maximum Drain Source Resistance | 0.0029 O |
| Package Type | PG HSOG-8 (TOLG) |
| Number Of Elements Per Chip | 1 |
| Mounting Type | Surface Mount |
| Transistor Material | Si |
| Pin Count | 8 |
