ICF-308-T-O-TR
SnapVerified
8 (2 x 4) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Tin Surface Mount
Availability: In Stock
Country of Origin: Malaysia

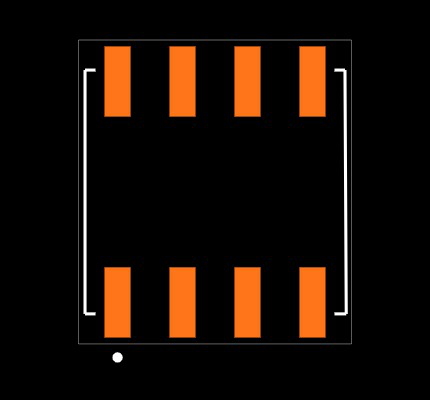

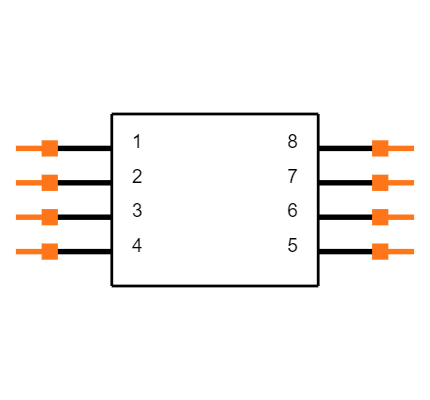

CAD Models: Symbol, Footprint, 3D Model
Get this part
Arrival in under 3 days
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ICF-308-T-O-TR by Samtec and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

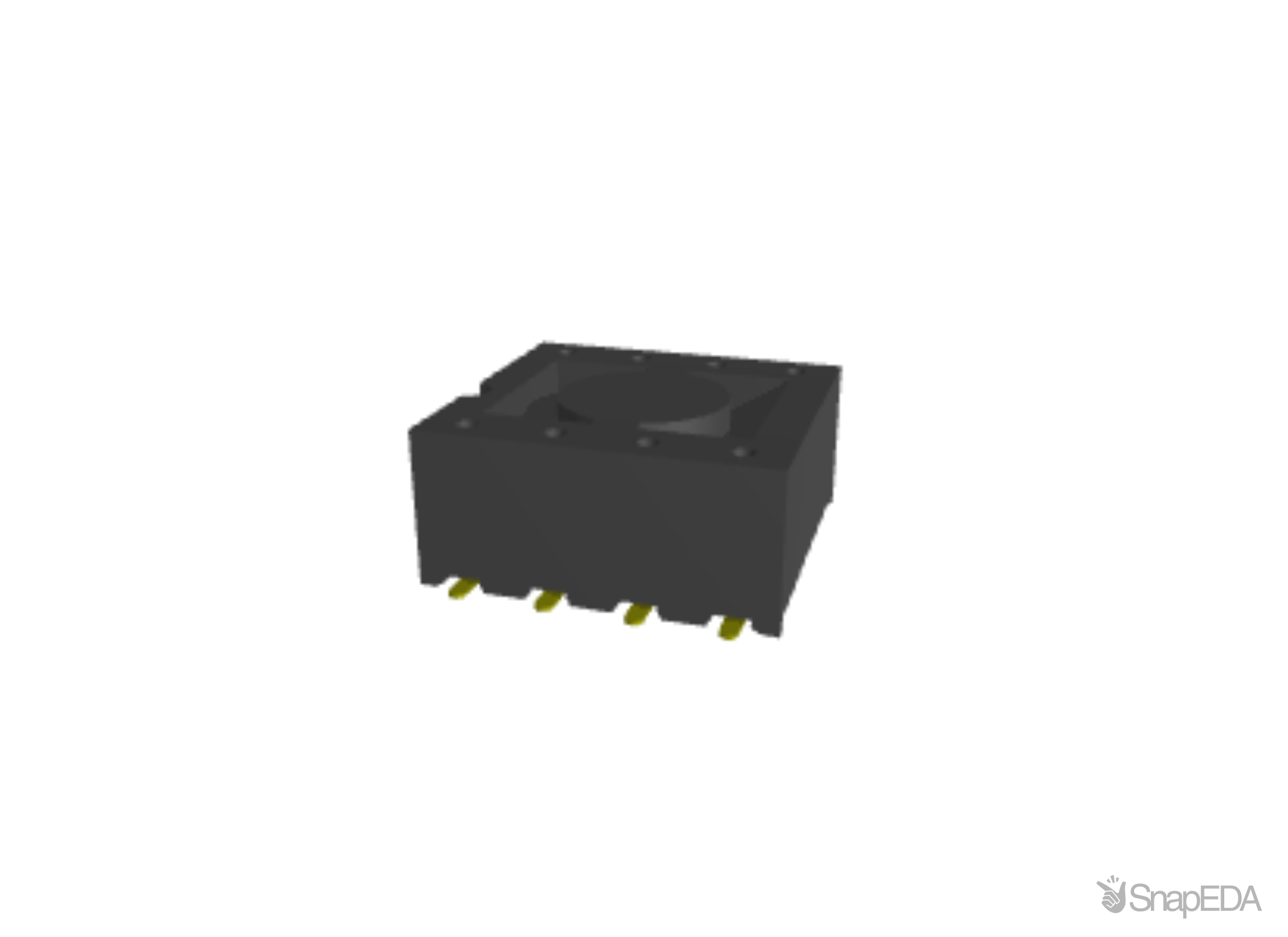

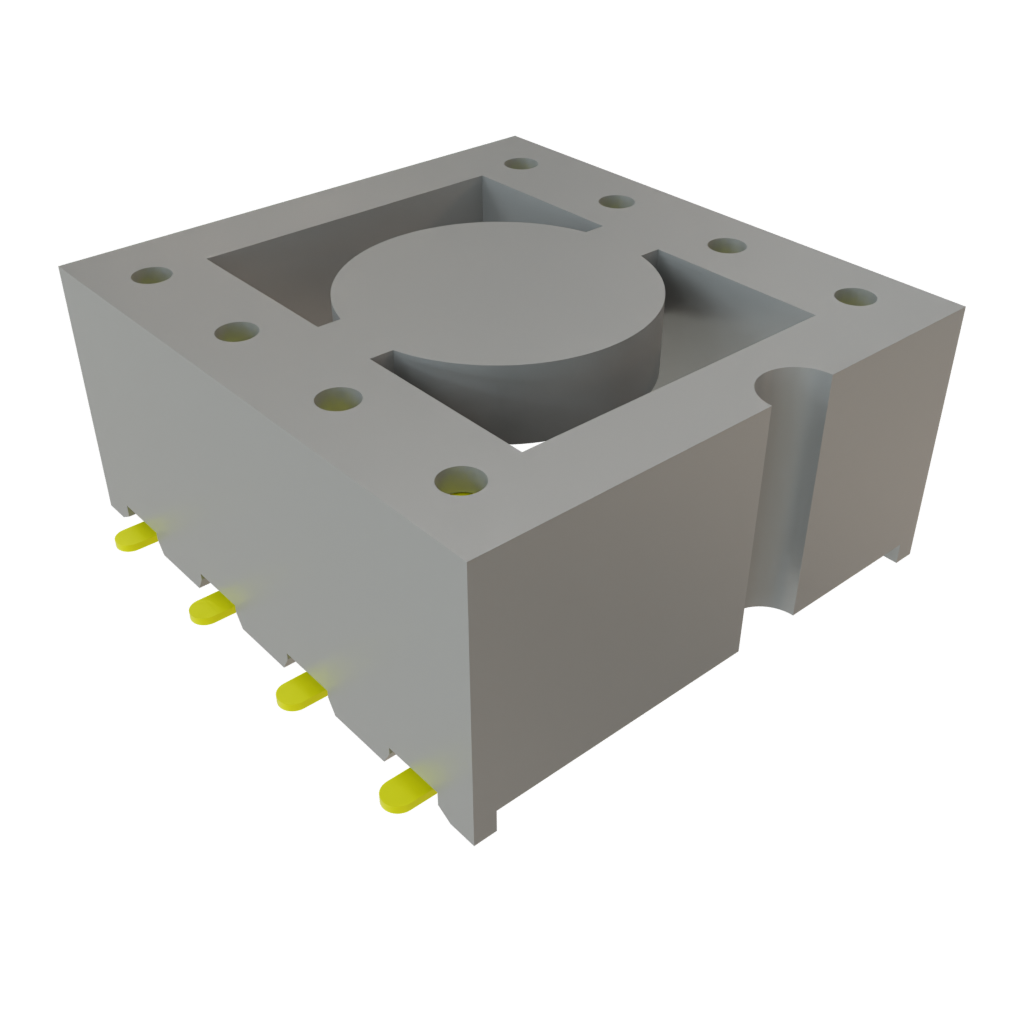

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the ICF-308-T-O-TR
| Part Name | ICF-308-T-O-TR |
| Manufacturer | Samtec |
| HTS Number | 8536.69 |
| Packaging | Tape & Reel |
| Series | ICF |
| Country of Origin | Malaysia |
| ECCN Category | EAR99 |
| Life Cycle Status | Production |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Row Width | 3 (mm) |
| Orientation | Straight |
| Mounting Type | Surface Mount |
| Series | ICF |
| Pitch | 2.54 (mm) |
| Frame Type | Open Frame |
| Number Of Contacts | 8 |
| Pin Type | Turned |
Inventory for the ICF-308-T-O-TR by Samtec from major distributors.
