ICL232CBEZ
2/2 Transceiver Full RS232 16-SOIC
Availability: In Stock
Package Type: SOIC-16
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ICL232CBEZ by Renesas and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

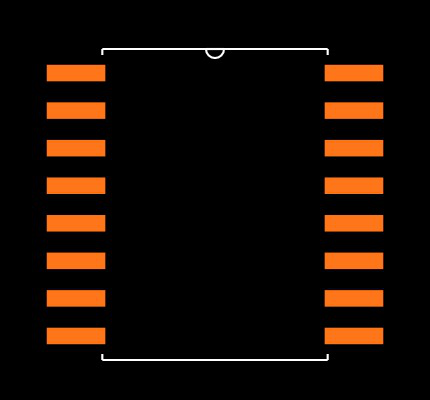

Footprint
No web preview
This Footprint is Available for

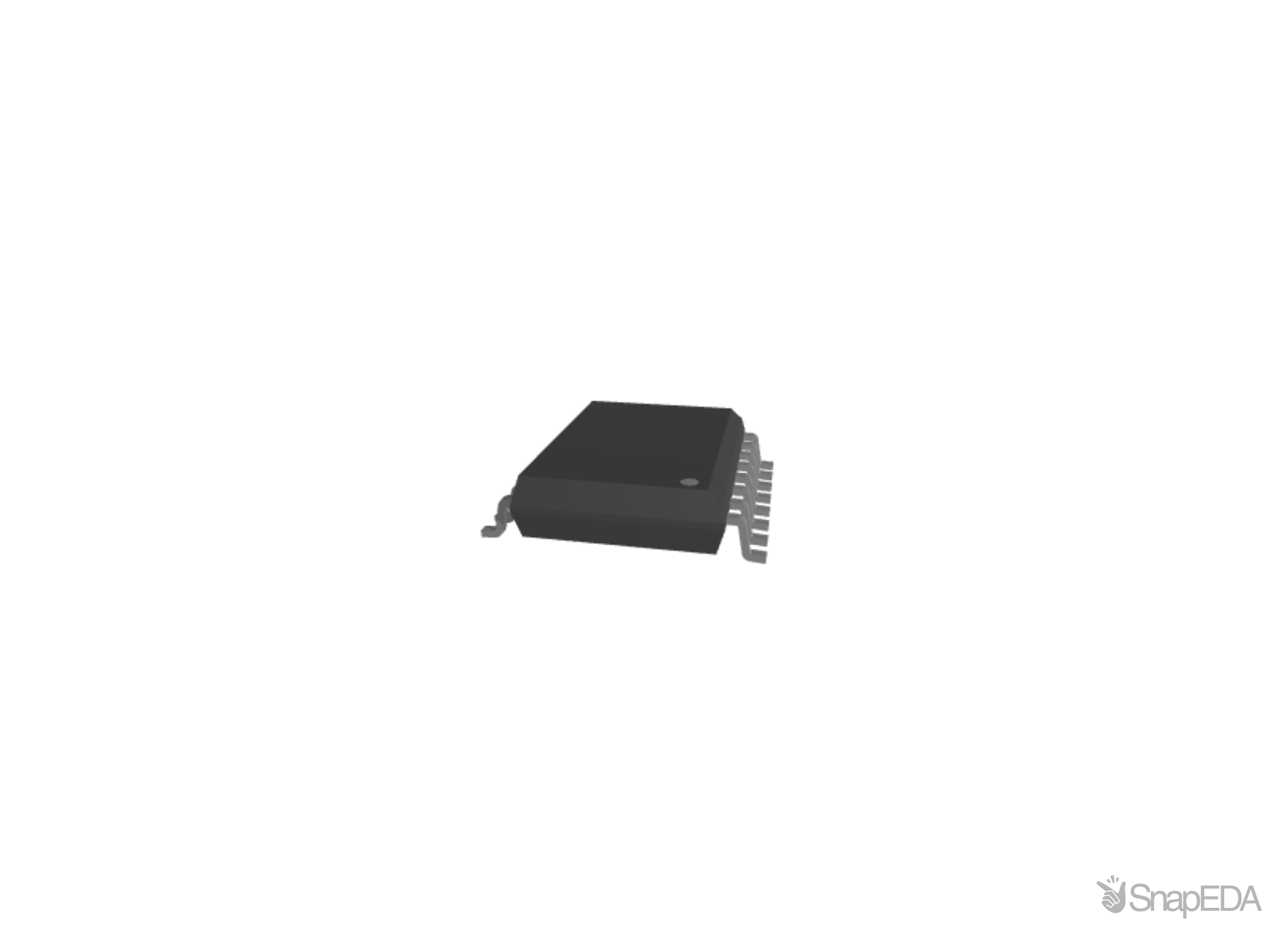

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the ICL232CBEZ
| Part Name | ICL232CBEZ |
| Manufacturer | Renesas Electronics |
| RoHS | True |
| Life Cycle Status | End of Life |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 10.5 x 7.6 x 2.35 (mm) |
| Mounting Type | Surface Mount |
| Package Type | SOIC W |
| Input Type | Single Ended |
| Ic Type | Line Transceiver IC |
| Number Of Transmitters | 2 |
| Pin Count | 16 |
